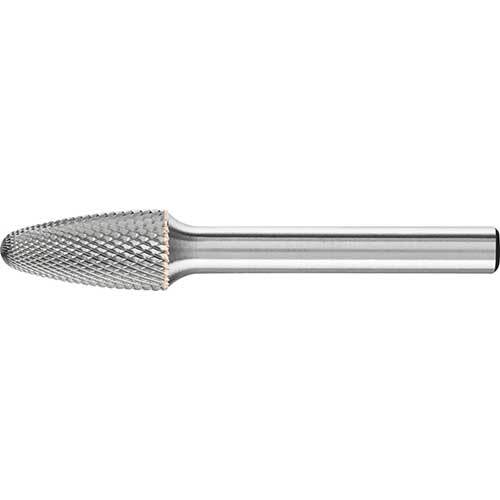

Pferd Tree Shape Burr RBF, MICRO, 10 x 20 mm, 6 mm Shank (21157210)

This Pferd tree shape burr with radius end (RBF) is a tungsten carbide burr in MICRO cut on a 6mm shank. It has a head size of 10 x 20mm.

The MICRO cut gives good stock removal on almost all materials below 68 HRC, with reduced vibration and less noise. The RBF is a tree-shaped burr with radius end to DIN 8032 for fine stock removal. Key features: high surface finish, can be used on almost all materials up to 68 HRC, reduced vibration and low noise.

Where this product is used

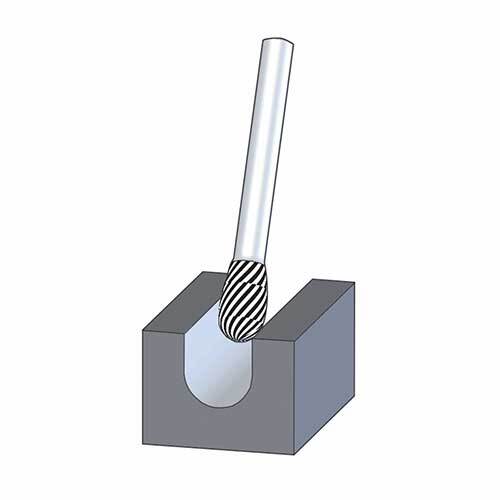

• Fine stock removal, finishing and very fine cleaning work
• Corrections in tool and mould construction, or sharpening cutting tools

Features

• Tungsten carbide, tree shape with radius end (RBF)
• MICRO: fine stock removal with a high surface finish
• 6mm shank
• Head size 10 x 20mm, overall length 60mm
• Can be used on almost all materials up to 68 HRC

Key specifications

Choosing the right option

Check the head size and shank against the job and your tool. The cutting speed is 600 to 750 m/min for fine stock removal on steels up to 1,200 N/mm2, and the rotational speed follows from the burr diameter. Do not exceed the maximum permitted rotational speed, observe the recommended rotational speed (especially with long shanks), wear eye and hearing protection and a dust mask, and do not use a damaged burr or use the burr for cutting.

Same shape with other cuts: Pferd Tree Shape Burr RBF, TOUGH, 10 x 20 and 12 x 25mm, 6mm Shank, Pferd Tree Shape Burr RBF, INOX, 6 x 18 and 12 x 25mm, 6mm Shank.
