Wiha phillips power bits PH00 to PH3, PH00 / 50
Available

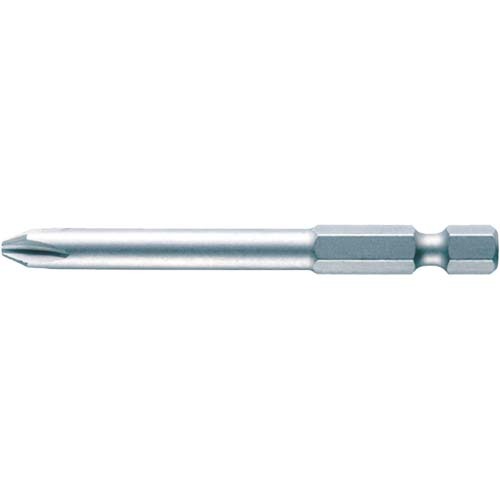

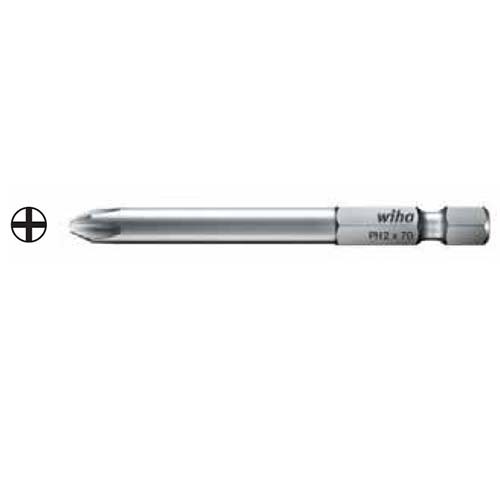

Wiha series 7041Z Phillips insert bits for the 1/4" hex drive (style E 6.3), in sizes PH00, PH0, PH1, PH2 and PH3 and lengths from 50 to 150mm.
The series is Professional bits in chrome-vanadium steel, through hardened, with the drive made to DIN 3126, ISO 1173, style E 6.3. Each article is one size and one length, so the article number identifies the exact bit.
Where this product is used
- All types of screw applications in trade and industry
Features
- Chrome-vanadium steel, through hardened
- Drive to DIN 3126, ISO 1173, style E 6.3 (1/4" hex)
- Phillips sizes PH00 to PH3
- Overall lengths of 50, 70, 90, 110, 127 and 150mm across the series
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | 7041Z |
| Drive | 1/4" hex, DIN 3126, ISO 1173, style E 6.3 |
| Material | Chrome-vanadium steel, through hardened |
| Phillips sizes | PH00, PH0, PH1, PH2 and PH3 |
| Overall lengths | 50, 70, 90, 110, 127 and 150mm |
| Phillips size | PH00, PH0, PH1, PH2, PH3 |
| Overall length | 50mm, 90mm, 110mm, 127mm, 150mm, 70mm |
Choosing the right option
Pick the Phillips size that matches the screw head first, then the length. For short 25mm Phillips bits see the Phillips Insert Bit 1/4" Hex.
See also: Wiha Phillips Power Insert Bit 1/4" Hex - 7041ZOT Series, Wiha Phillips Power Insert Bit Dura Tip, Wiha PH2 x 50mm Phillips Power Insert Xeno Bit 1/4" Hex.
| Option | Part number | SKU |
|---|---|---|
| PH00 / 50 | 31960(7041Z) | A0144243 |
| PH0 / 50 | 32105(7041Z) | A0144244 |
| PH1 / 50 | 33703(7041Z) | A0144245 |
| PH1 / 90 | 04126(7041Z) | A0144240 |
| PH1 / 110 | 23213(7041Z) | A0144235 |
| PH1 / 127 | 23219(7041Z) | A0144237 |
| PH1 / 152 | 22509(7041Z) | A0144238 |
| PH2 / 50 | 33704(7041Z) | A0144246 |
| PH2 / 70 | 01805(7041Z) | A0144234 |
| PH2 / 90 | 04009(7041Z) | A0144241 |
| PH2 / 110 | 05800(7041Z) | A0144236 |
| PH2 / 152 | 22510(7041Z) | A0144239 |
| PH3 / 90 | 04127(7041Z) | A0144242 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Phillips Power Insert Bit 1/4" Hex: PH00 / 50
SKU: A0144243 | Model: 31960(7041Z)
Wiha 31960(7041Z): PH00 Phillips power bit, 50mm long, 1/4" hex drive to DIN 3126 and ISO 1173, style E 6.3.
