Wiha phillips torsion bits PH1 to PH3, PH3
Available

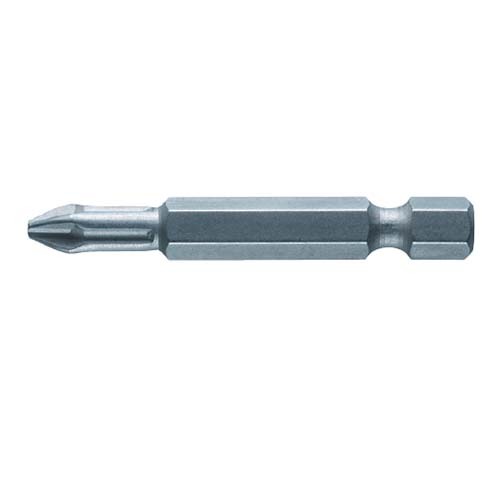

Wiha series 7041ZOT ZOT torsion bits with a Phillips tip for the 1/4" hex drive (style E 6.3), in PH1, PH2 and PH3, each 50mm long.
The patented torsion zone is protection against the bit breaking prematurely when under stress, and the bits are particularly suitable for turning screws in metal and hard materials.
Where this product is used
- Turning screws in metal and hard materials
Features
- Patented torsion zone to prevent the bit breaking prematurely under stress
- Chrome-vanadium steel, through-hardened, hard but elastic
- Drive to DIN 3126, ISO 1173, style E 6.3 (1/4" hex)
- 50mm overall length in all three sizes
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | 7041ZOT |
| Phillips sizes | PH1, PH2 and PH3 |
| Overall length | 50mm |
| Drive | 1/4" hex, DIN 3126, ISO 1173, style E 6.3 |
| Torsion zone | Patented, to prevent premature breaking of the bit under stress |
| Material | Chrome-vanadium steel, through-hardened, hard but elastic |
| Phillips size | PH1, PH2, PH3 |
Choosing the right option
Choose the Phillips size that matches the screw head: PH1, PH2 or PH3. All three are 50mm long. The plain 7041Z power bits without a torsion zone offer more lengths; see the Phillips Power Insert Bit 1/4" Hex. For a coated tip see the Wiha Phillips Power Insert Bit Dura Tip.
See also: Phillips Power Insert Bit 1/4" Hex, Wiha Phillips Power Insert Bit Dura Tip, Wiha PH2 x 25mm Phillips Insert Bit 1/4" Hex With Torsion Zone.
| Option | Part number | SKU |
|---|---|---|
| PH1 | 04541(7041ZOT) | A0144464 |
| PH2 | 04540(7041ZOT) | A0144463 |
| PH3 | 04539(7041ZOT) | A0144462 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Wiha Phillips Power Insert Bit 1/4" Hex - 7041ZOT Series: PH3
SKU: A0144462 | Model: 04539(7041ZOT)
Wiha 04539(7041ZOT): PH3 Phillips ZOT torsion bit, 50mm long, 1/4" hex drive (style E 6.3), patented torsion zone.
