PIX FRAS V-Belt A24, A Section, 610 mm Inside Length
Available

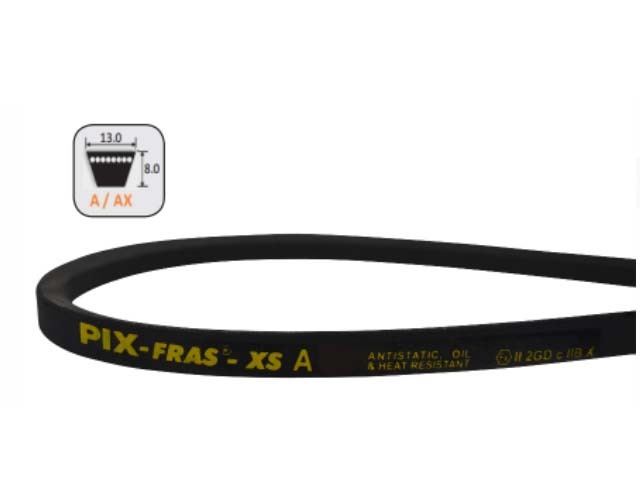

PIX FRAS A section V-belts are fire resistant, anti-static wrapped V-belts, 13 mm wide and 8 mm high, in sizes A24 to A90. Each belt has a wear resistant rubberised fabric cover over a fire resistant, anti-static rubber compound, with a polyester cord, and the belts are ATEX certified.
The number in the belt code is the inside length in inches, so A24 is 24 in. The inside, pitch and outside length in millimetres and the belt weight are listed on this page for each size in the PIX standard size range.
Where this product is used
- Drives in petrochemical plants
- Drives in coal mines
- Drives in fire-prone areas
- Drives at gas stations
- Drives where flammable substances are present
Features
- Fire resistant and anti-static construction
- ATEX certified
- Oil resistant
- Wrapped construction with a wear resistant rubberised fabric cover
- Polyester cord tensile member
- A section: 13 mm top width, 8 mm height, 40 degree groove angle
- 51 sizes, A24 to A90, sold by inside length
- Inside, pitch and outside length and weight listed for each size
Key specifications
| Specification | Detail |
|---|---|
| Brand | PIX |
| Manufacturer | PIX Transmissions Ltd |
| Range | PIX-FRAS-XS wrapped, fire resistant, anti-static V-belts |
| Section | A |
| Top width | 13 mm |
| Belt height | 8 mm |
| Groove angle | 40 degrees |
| Sizes | A24 to A90 (51 sizes) |
| Length code | Inside length in inches (A24 = 24 in) |
| Cover | Wear resistant, rubberised blended fabric |
| Tensile member | Polyester cord |
| Rubber compound | FRAS (fire resistant, anti-static) |
| Certification | ATEX certified |
| Reference standards | ISO 1813, ISO 4184, BS 3790, IS 2494 |
Available sizes
All 51 sizes: A24 to A90, with lengths and weights
| Code | Inside length | Pitch length | Outside length | Weight (kg) |
|---|---|---|---|---|
| A24 | 610 mm | 646 mm | 660 mm | 0.077 |
| A25 | 635 mm | 671 mm | 685 mm | 0.08 |
| A26 | 660 mm | 696 mm | 710 mm | 0.083 |
| A27 | 686 mm | 722 mm | 736 mm | 0.086 |
| A30 | 760 mm | 796 mm | 810 mm | 0.096 |
| A31 | 790 mm | 826 mm | 840 mm | 0.099 |
| A32 | 815 mm | 851 mm | 865 mm | 0.102 |
| A33 | 840 mm | 876 mm | 890 mm | 0.106 |
| A34 | 865 mm | 901 mm | 915 mm | 0.109 |
| A36 | 914 mm | 950 mm | 964 mm | 0.115 |
| A37 | 940 mm | 976 mm | 990 mm | 0.118 |
| A38 | 965 mm | 1001 mm | 1015 mm | 0.122 |
| A39 | 990 mm | 1026 mm | 1040 mm | 0.125 |
| A40 | 1016 mm | 1052 mm | 1066 mm | 0.128 |
| A41 | 1041 mm | 1077 mm | 1091 mm | 0.131 |
| A42 | 1065 mm | 1101 mm | 1115 mm | 0.134 |
| A43 | 1090 mm | 1126 mm | 1140 mm | 0.138 |
| A44 | 1120 mm | 1156 mm | 1170 mm | 0.141 |
| A45 | 1143 mm | 1179 mm | 1193 mm | 0.144 |
| A46 | 1168 mm | 1204 mm | 1218 mm | 0.147 |
| A47 | 1190 mm | 1226 mm | 1240 mm | 0.15 |
| A48 | 1220 mm | 1256 mm | 1270 mm | 0.154 |
| A49 | 1250 mm | 1286 mm | 1300 mm | 0.157 |
| A50 | 1270 mm | 1306 mm | 1320 mm | 0.16 |
| A51 | 1300 mm | 1336 mm | 1350 mm | 0.163 |
| A52 | 1320 mm | 1356 mm | 1370 mm | 0.166 |
| A53 | 1350 mm | 1386 mm | 1400 mm | 0.17 |
| A54 | 1375 mm | 1411 mm | 1425 mm | 0.173 |
| A55 | 1400 mm | 1436 mm | 1450 mm | 0.176 |
| A56 | 1422 mm | 1458 mm | 1472 mm | 0.179 |
| A57 | 1450 mm | 1486 mm | 1500 mm | 0.182 |
| A58 | 1475 mm | 1511 mm | 1525 mm | 0.186 |
| A59 | 1500 mm | 1536 mm | 1550 mm | 0.189 |
| A60 | 1525 mm | 1561 mm | 1575 mm | 0.192 |
| A61 | 1550 mm | 1586 mm | 1600 mm | 0.195 |
| A62 | 1575 mm | 1611 mm | 1625 mm | 0.198 |
| A63 | 1600 mm | 1636 mm | 1650 mm | 0.202 |
| A64 | 1625 mm | 1661 mm | 1675 mm | 0.205 |
| A65 | 1650 mm | 1686 mm | 1700 mm | 0.208 |
| A66 | 1676 mm | 1712 mm | 1726 mm | 0.211 |
| A67 | 1700 mm | 1736 mm | 1750 mm | 0.214 |
| A68 | 1725 mm | 1761 mm | 1775 mm | 0.218 |
| A69 | 1750 mm | 1786 mm | 1800 mm | 0.221 |
| A70 | 1775 mm | 1811 mm | 1825 mm | 0.224 |
| A72 | 1830 mm | 1866 mm | 1880 mm | 0.23 |
| A74 | 1880 mm | 1916 mm | 1930 mm | 0.237 |
| A75 | 1900 mm | 1936 mm | 1950 mm | 0.24 |
| A79 | 79 in | - | - | - |
| A80 | 2032 mm | 2068 mm | 2082 mm | 0.256 |
| A85 | 2160 mm | 2196 mm | 2210 mm | 0.272 |
| A90 | 2286 mm | 2322 mm | 2336 mm | 0.288 |
Millimetre lengths and weights are shown for the sizes in the PIX standard size range (50 of the 51 sizes here). For the other sizes the inside length in inches is the code number.
Selecting the right option
Match the section letter and length code to the existing belt, or use a groove gauge on the pulley to confirm the section. The PIX pulley gauge is listed on the AIMS site.
These belts are ATEX certified. Confirm that this covers the requirements of your site and area classification before specifying, and contact AIMS if you need help.
The PIX catalogue pages for this product can be downloaded from the Catalogue section of this page.
Fitting and use
Fit the belts to matching pulleys and replace every belt on a multi-belt drive at the same time so the load is shared evenly. Check the pulley grooves for wear with a groove gauge before fitting new belts.
Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.
Related products
Other PIX parts for belt drives: PIX FRAS B section V-belt, PIX FRAS C section V-belt and PIX V-belt pulley gauge.
