PIX FRAS V-Belt B31, B Section, 31 in Inside Length
Available

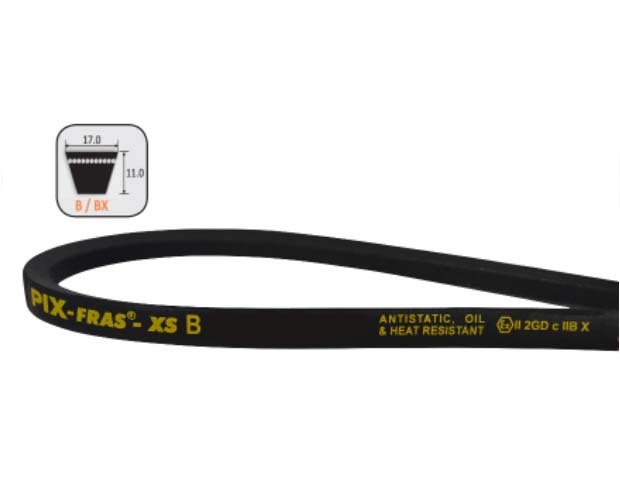

PIX FRAS B section V-belts are fire resistant, anti-static wrapped V-belts, 17 mm wide and 11 mm high, in sizes B31 to B144. Each belt has a wear resistant rubberised fabric cover over a fire resistant, anti-static rubber compound, with a polyester cord, and the belts are ATEX certified.
The number in the belt code is the inside length in inches, so B31 is 31 in. The inside, pitch and outside length in millimetres and the belt weight are listed on this page for each size in the PIX standard size range.
Where this product is used
- Drives in petrochemical plants
- Drives in coal mines
- Drives in fire-prone areas
- Drives at gas stations
- Drives where flammable substances are present
Features
- Fire resistant and anti-static construction
- ATEX certified
- Oil resistant
- Wrapped construction with a wear resistant rubberised fabric cover
- Polyester cord tensile member
- B section: 17 mm top width, 11 mm height, 40 degree groove angle
- 46 sizes, B31 to B144, sold by inside length
- Inside, pitch and outside length and weight listed for each size
Key specifications
| Specification | Detail |
|---|---|
| Brand | PIX |
| Manufacturer | PIX Transmissions Ltd |
| Range | PIX-FRAS-XS wrapped, fire resistant, anti-static V-belts |
| Section | B |
| Top width | 17 mm |
| Belt height | 11 mm |
| Groove angle | 40 degrees |
| Sizes | B31 to B144 (46 sizes) |
| Length code | Inside length in inches (B31 = 31 in) |
| Cover | Wear resistant, rubberised blended fabric |
| Tensile member | Polyester cord |
| Rubber compound | FRAS (fire resistant, anti-static) |
| Certification | ATEX certified |
| Reference standards | ISO 1813, ISO 4184, BS 3790, IS 2494 |
Available sizes
All 46 sizes: B31 to B144, with lengths and weights
| Code | Inside length | Pitch length | Outside length | Weight (kg) |
|---|---|---|---|---|
| B31 | 31 in | - | - | - |
| B32 | 813 mm | 856 mm | 882 mm | 0.157 |
| B33 | 838 mm | 881 mm | 907 mm | 0.162 |
| B34 | 34 in | - | - | - |
| B35 | 35 in | - | - | - |
| B36 | 914 mm | 957 mm | 983 mm | 0.176 |
| B38 | 965 mm | 1008 mm | 1034 mm | 0.186 |
| B40 | 1016 mm | 1059 mm | 1085 mm | 0.196 |
| B42 | 1065 mm | 1108 mm | 1134 mm | 0.206 |
| B43 | 1090 mm | 1133 mm | 1159 mm | 0.211 |
| B44 | 1120 mm | 1163 mm | 1189 mm | 0.216 |
| B45 | 1143 mm | 1186 mm | 1212 mm | 0.22 |
| B46 | 1168 mm | 1211 mm | 1237 mm | 0.225 |
| B47 | 1190 mm | 1233 mm | 1259 mm | 0.23 |
| B48 | 1220 mm | 1263 mm | 1289 mm | 0.235 |
| B49 | 1250 mm | 1293 mm | 1319 mm | 0.24 |
| B50 | 1270 mm | 1313 mm | 1339 mm | 0.245 |
| B52 | 1320 mm | 1363 mm | 1389 mm | 0.255 |
| B53 | 1350 mm | 1393 mm | 1419 mm | 0.26 |
| B54 | 1375 mm | 1418 mm | 1444 mm | 0.265 |
| B55 | 1400 mm | 1443 mm | 1469 mm | 0.269 |
| B56 | 1422 mm | 1465 mm | 1491 mm | 0.274 |
| B57 | 1450 mm | 1493 mm | 1519 mm | 0.279 |
| B59 | 1500 mm | 1543 mm | 1569 mm | 0.289 |
| B60 | 1525 mm | 1568 mm | 1594 mm | 0.294 |
| B62 | 1575 mm | 1618 mm | 1644 mm | 0.304 |
| B63 | 1600 mm | 1643 mm | 1669 mm | 0.309 |
| B64 | 1625 mm | 1668 mm | 1694 mm | 0.314 |
| B67 | 1700 mm | 1743 mm | 1769 mm | 0.328 |
| B68 | 1725 mm | 1768 mm | 1794 mm | 0.333 |
| B69 | 1750 mm | 1793 mm | 1819 mm | 0.338 |
| B71 | 1800 mm | 1843 mm | 1869 mm | 0.348 |
| B74 | 1880 mm | 1923 mm | 1949 mm | 0.363 |
| B75 | 1900 mm | 1943 mm | 1969 mm | 0.367 |
| B77 | 1956 mm | 1999 mm | 2025 mm | 0.377 |
| B80 | 2032 mm | 2075 mm | 2101 mm | 0.392 |
| B81 | 2060 mm | 2103 mm | 2129 mm | 0.397 |
| B92 | 2337 mm | 2380 mm | 2406 mm | 0.451 |
| B93 | 2360 mm | 2403 mm | 2429 mm | 0.456 |
| B100 | 2540 mm | 2583 mm | 2609 mm | 0.49 |
| B103 | 103 in | - | - | - |
| B105 | 2667 mm | 2710 mm | 2736 mm | 0.514 |
| B112 | 112 in | - | - | - |
| B117 | 117 in | - | - | - |
| B131 | 131 in | - | - | - |
| B144 | 3658 mm | 3701 mm | 3727 mm | 0.706 |
Millimetre lengths and weights are shown for the sizes in the PIX standard size range (39 of the 46 sizes here). For the other sizes the inside length in inches is the code number.
Selecting the right option
Match the section letter and length code to the existing belt, or use a groove gauge on the pulley to confirm the section. The PIX pulley gauge is listed on the AIMS site.
These belts are ATEX certified. Confirm that this covers the requirements of your site and area classification before specifying, and contact AIMS if you need help.
The PIX catalogue pages for this product can be downloaded from the Catalogue section of this page.
Fitting and use
Fit the belts to matching pulleys and replace every belt on a multi-belt drive at the same time so the load is shared evenly. Check the pulley grooves for wear with a groove gauge before fitting new belts.
Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.
Related products
Other PIX parts for belt drives: PIX FRAS A section V-belt, PIX FRAS C section V-belt and PIX V-belt pulley gauge.
