EasyRoll polypropylene wheel, wheel diameter (mm) 80

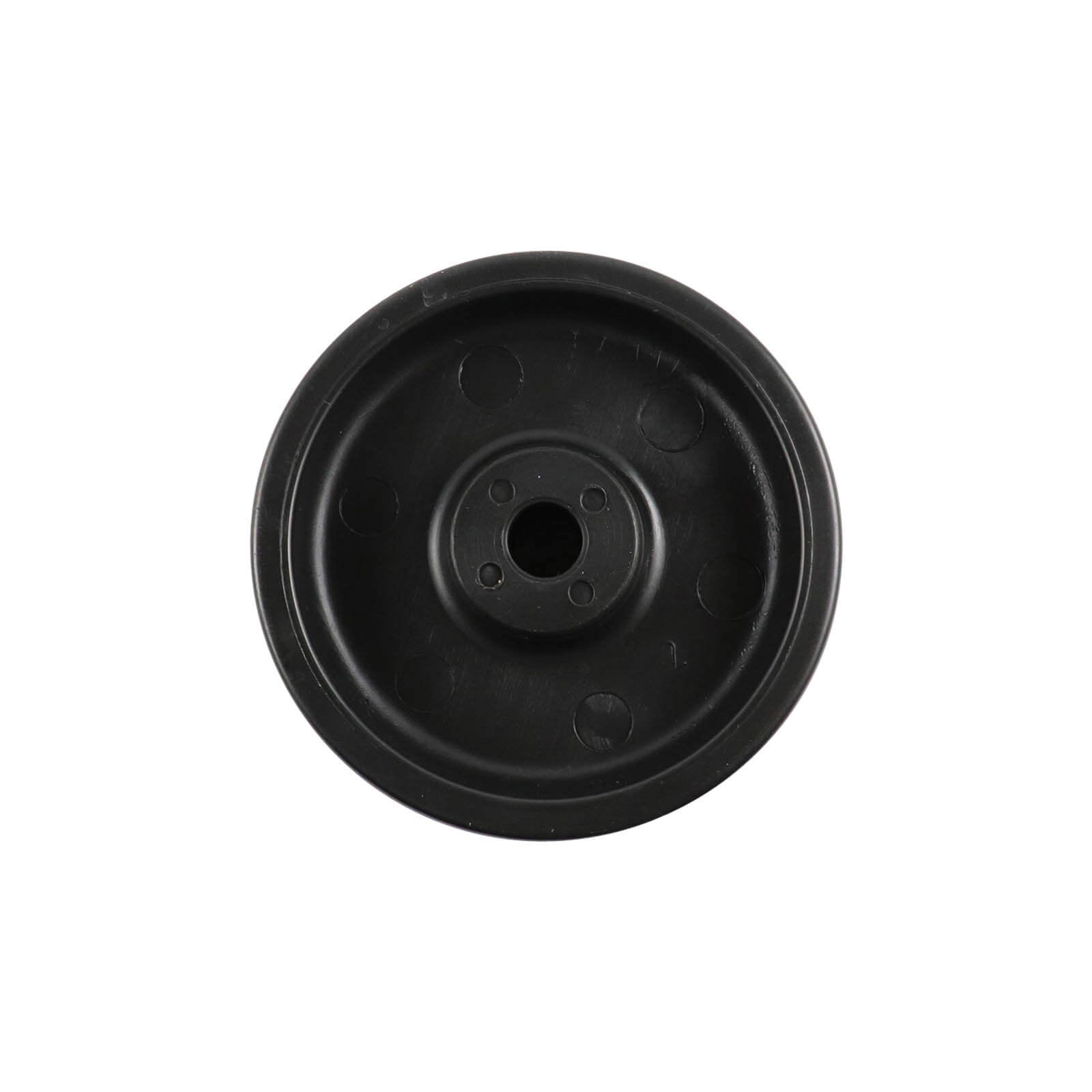

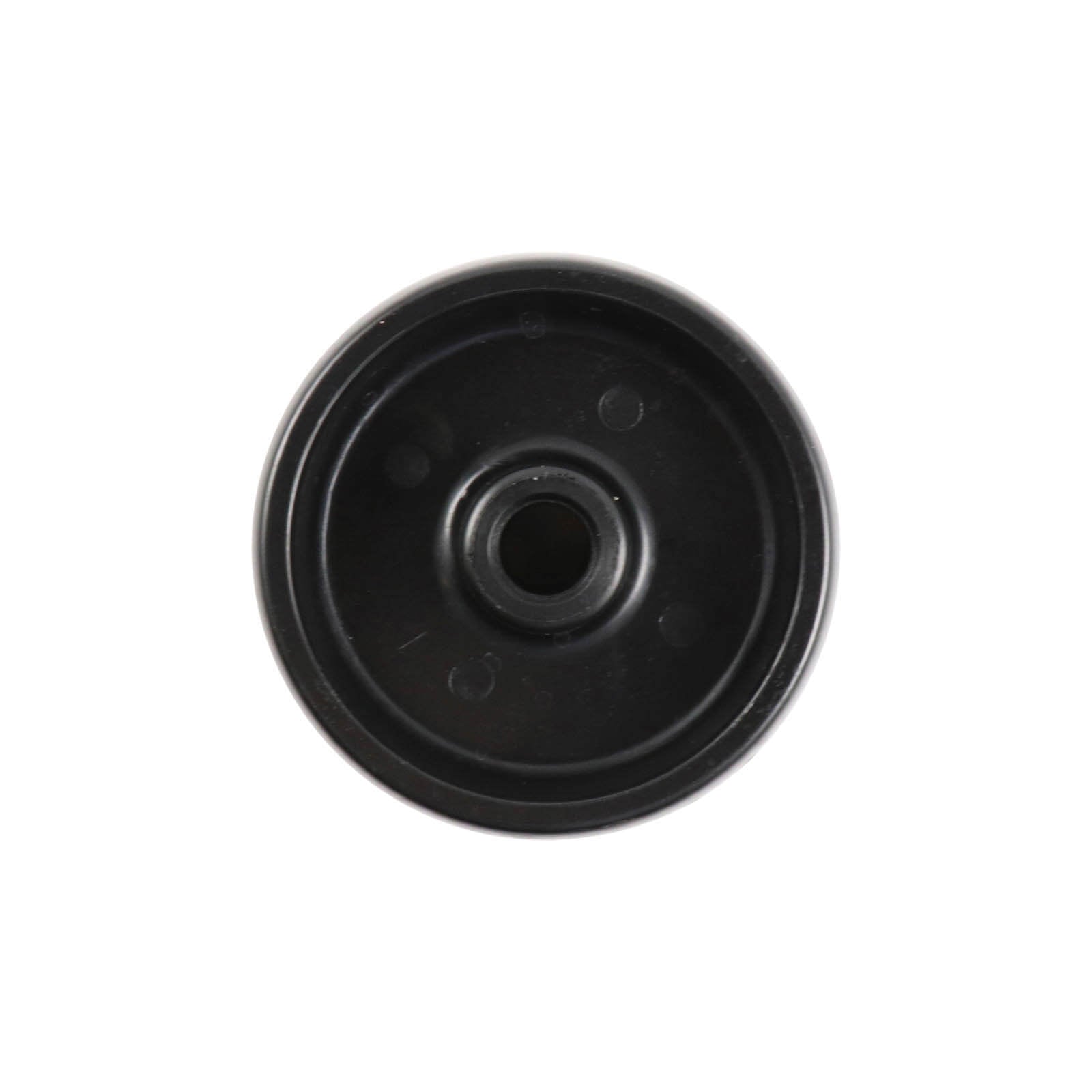

The EasyRoll black polypropylene wheel with a nylon centre is available in 80 to 100mm diameters, with plain bearings. The load capacity is 80 to 100kg per wheel, depending on the size.

Where this product is used

• Replacing wheels on trolleys and carts
• Workshop, warehouse and factory equipment
• Light industrial equipment

Features

• 80 to 100mm diameter, 30 to 34mm tread
• Load capacity 80 to 100kg per wheel
• Plain bearings
• Nylon centre

Key specifications

Choosing the right option

Check the bore ID against your axle, the hub length against the space in your fork or frame, and the load capacity per wheel against the total load shared across all the wheels. Plain bearings consist of a bearing shell solidly connected with the wheel, which turns around an axle tube bolted to the housing. Under normal conditions they are maintenance free and corrosion resistant. Load capacity is shown per wheel. For castors on a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
