EasyRoll urethane wheel, wheel diameter (mm) 100

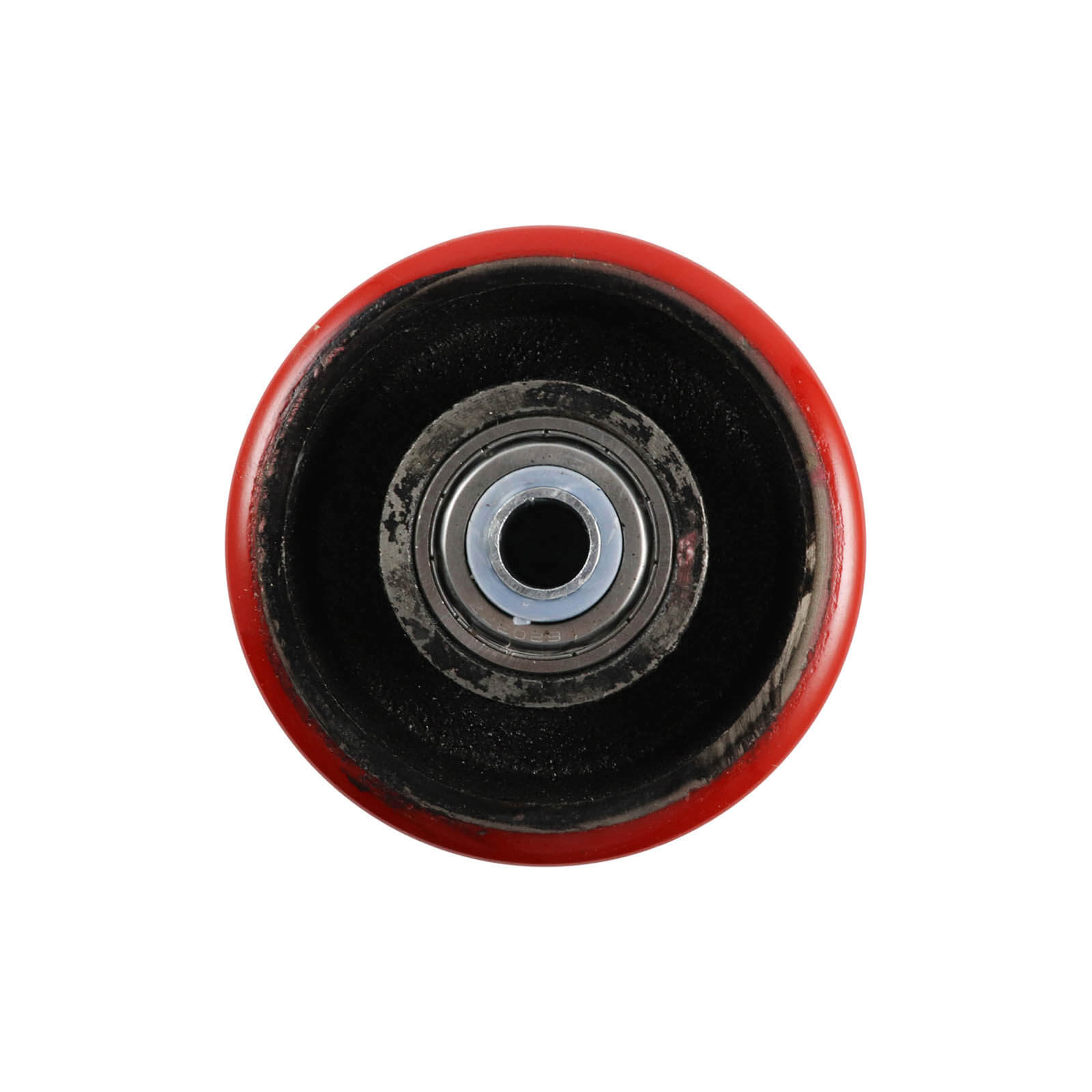

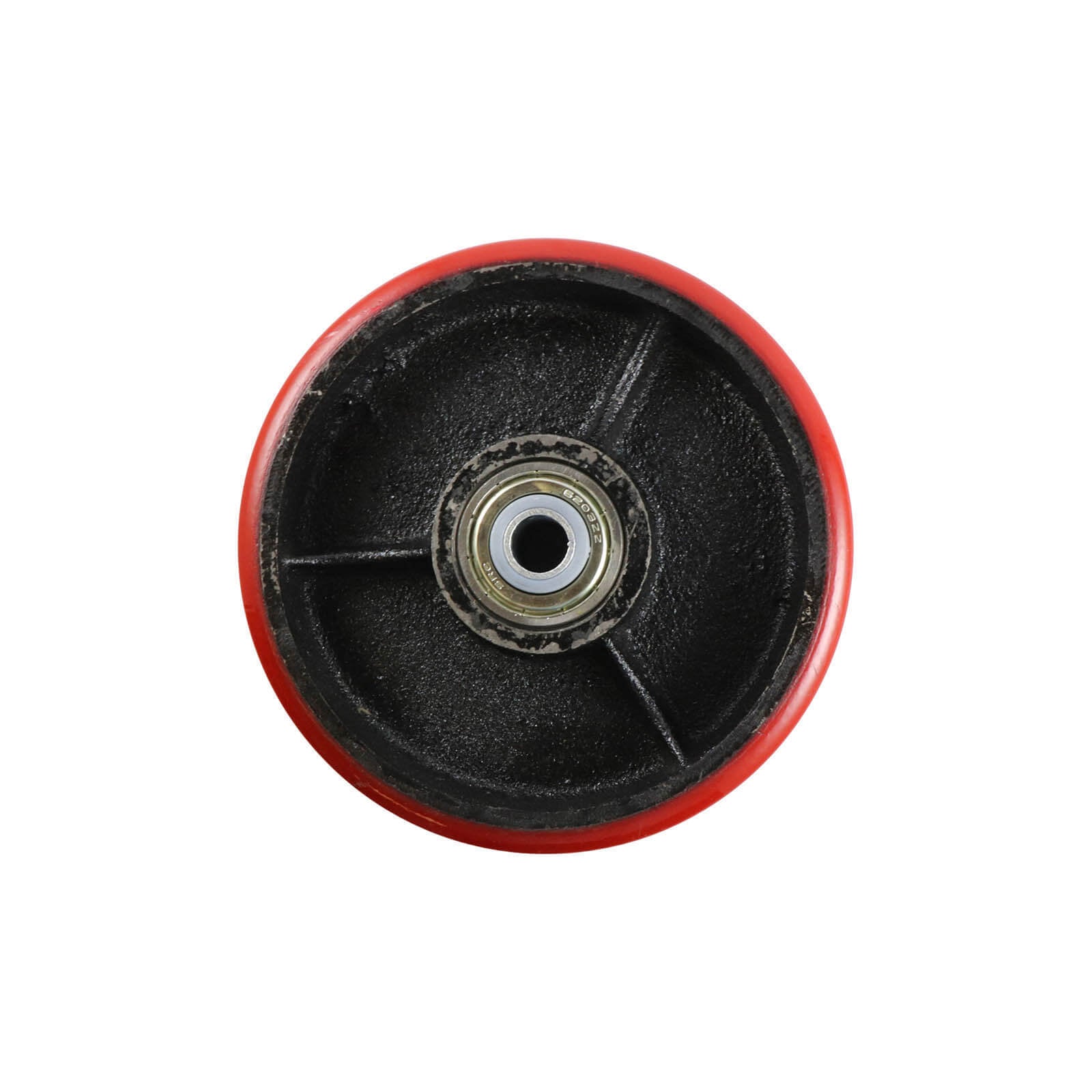

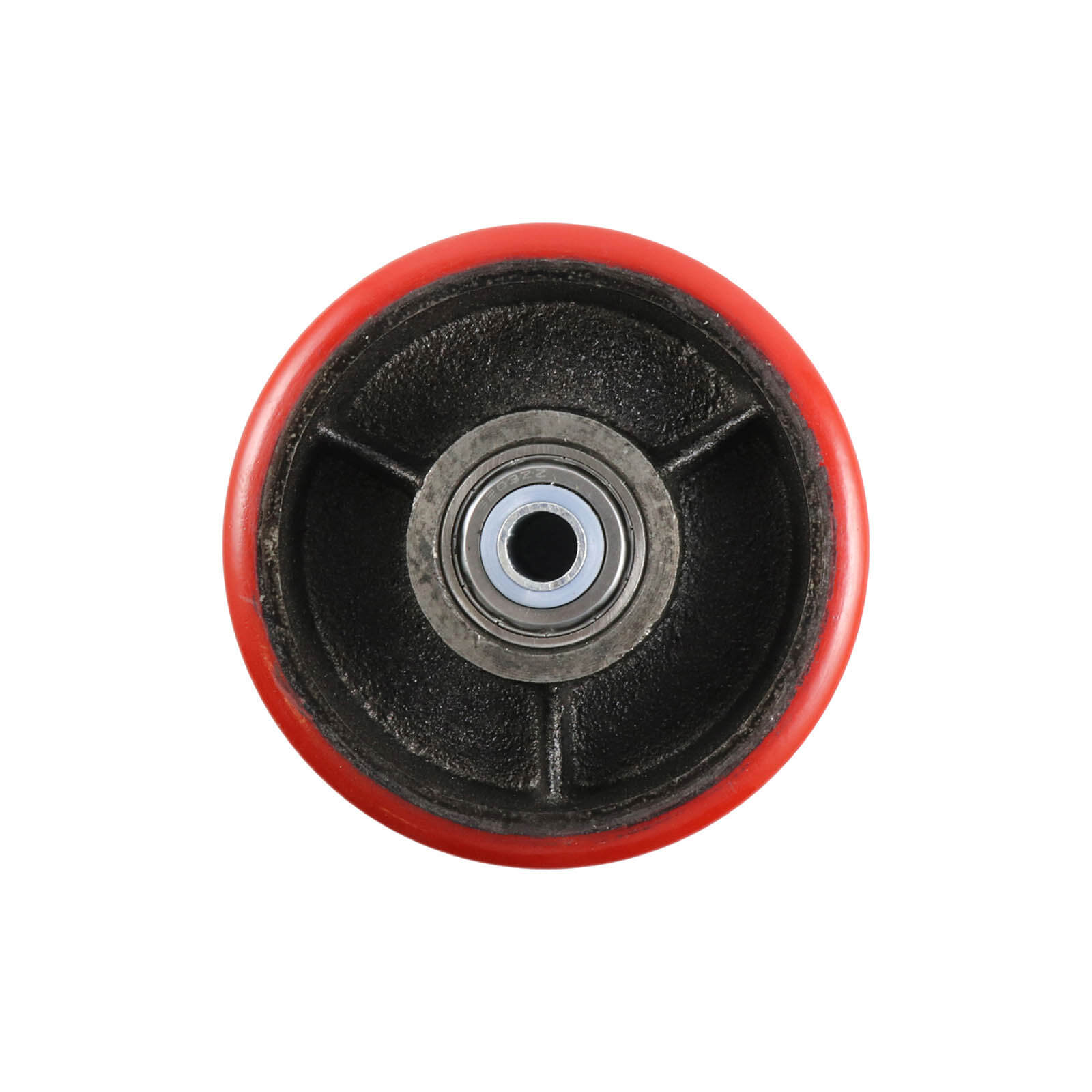

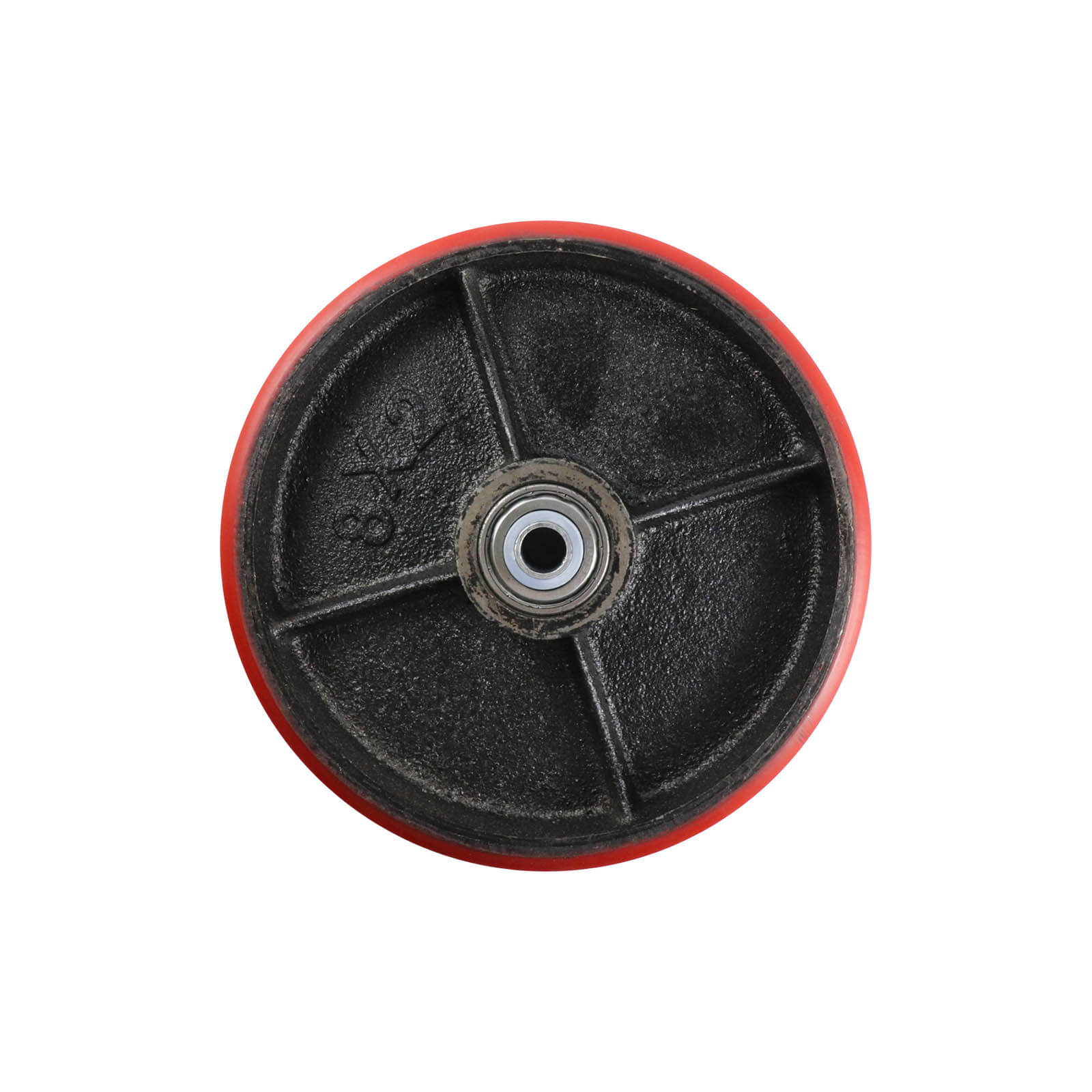

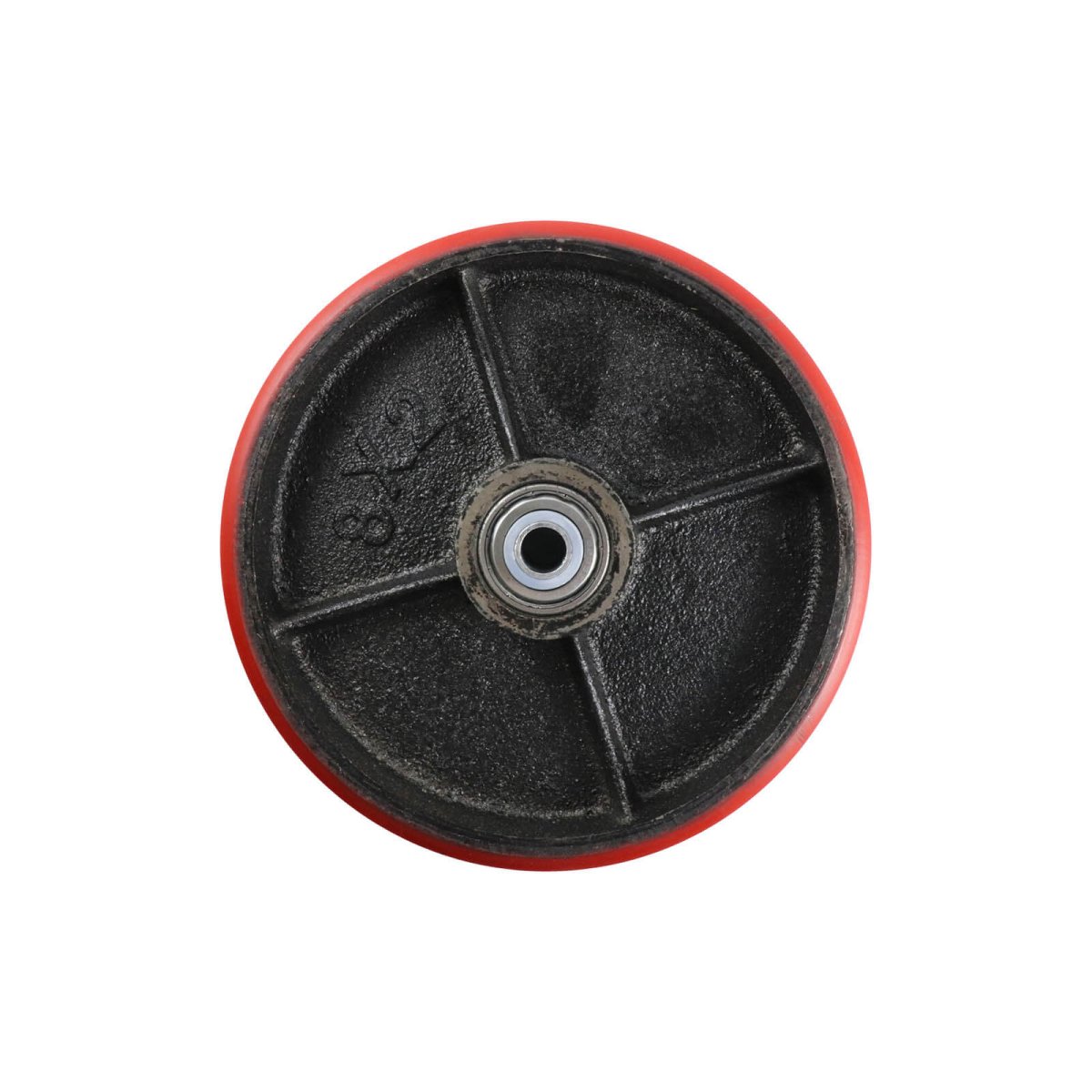

The EasyRoll red urethane wheel with a cast iron centre is available in 100 to 200mm diameters, with dual ball bearings. The load capacity is 320 to 570kg per wheel, depending on the size.

Polyurethane wheels: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. It is the best all-round choice and suited to all surfaces, including irregular ones. Ratings are EHI general guidance for the wheel material.

Where this product is used

• Trolleys and carts that cross mixed floor surfaces
• Equipment moved over irregular floors
• Replacing worn or damaged wheels
• Workshop, warehouse and factory equipment

Features

• 100 to 200mm diameter, 50mm tread
• Load capacity 320 to 570kg per wheel
• Dual ball bearings
• Cast iron centre
• Polyurethane wheel material, rated by EHI for shock absorbency, load capacity and floor protection

Key specifications

Choosing the right option

Check the bore ID against your axle, the hub length against the space in your fork or frame, and the load capacity per wheel against the total load shared across all the wheels. Choose the wheel material for your floor type first, using the EHI ratings above, then check the load. Ball bearings are compact, simple bearing units, with balls rolling between the inner and outer rings in a moulded sheet metal housing. They have wheels with dual ball bearings. Load capacity is shown per wheel. For castors on a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.

See also: EasyRoll Urethane Wheel - Precision Bearing, Cast Iron Centre, Yellow, 203 to 305mm, EasyRoll Urethane Wheel - Stainless Precision Bearing, Nylon Centre, Grey, 75 to 125mm, EasyRoll Urethane Wheel - Stainless Roller Bearing, Nylon Centre, Red, 100 to 125mm.
