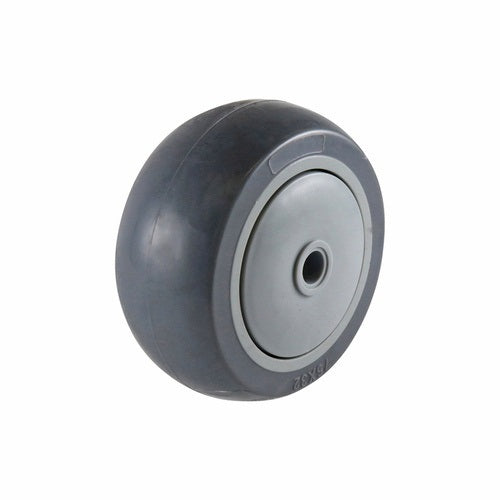

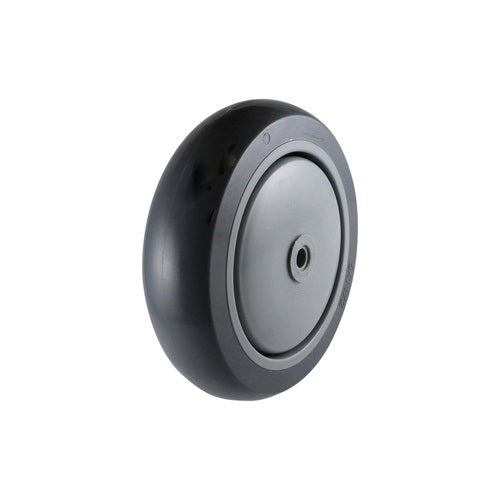

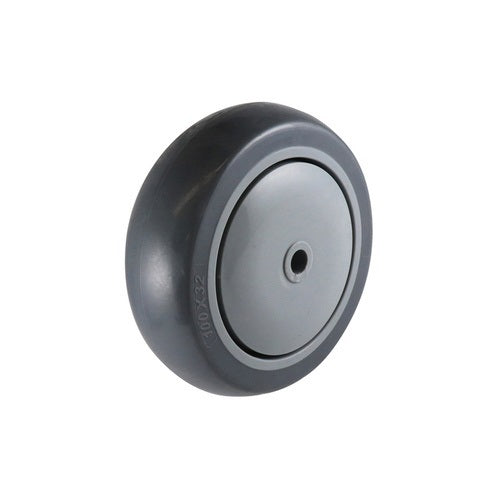

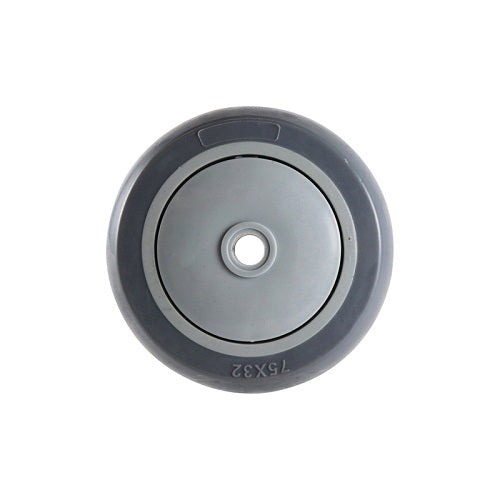

EasyRoll urethane wheel, 100 / 125

The EasyRoll grey urethane wheel with a nylon centre is available in 75 to 125mm diameters, with precision bearings. The load capacity is 80 to 100kg per wheel, depending on the size.

Polyurethane wheels: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. It is the best all-round choice and suited to all surfaces, including irregular ones. Ratings are EHI general guidance for the wheel material.

Where this product is used

• Trolleys and carts that cross mixed floor surfaces
• Equipment moved over irregular floors
• Replacing worn or damaged wheels
• Workshop, warehouse and factory equipment

Features

• 75 to 125mm diameter, 32mm tread
• Load capacity 80 to 100kg per wheel
• Precision bearings
• Nylon centre
• Polyurethane wheel material, rated by EHI for shock absorbency, load capacity and floor protection

Key specifications

Choosing the right option

Check the bore ID against your axle, the hub length against the space in your fork or frame, and the load capacity per wheel against the total load shared across all the wheels. Choose the wheel material for your floor type first, using the EHI ratings above, then check the load. Precision ball bearings have balls running between a tempered inner and outer ring. They are sealed for lifelong lubrication and give very good operating properties under heavy loads and at high speeds. Load capacity is shown per wheel. For castors on a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
