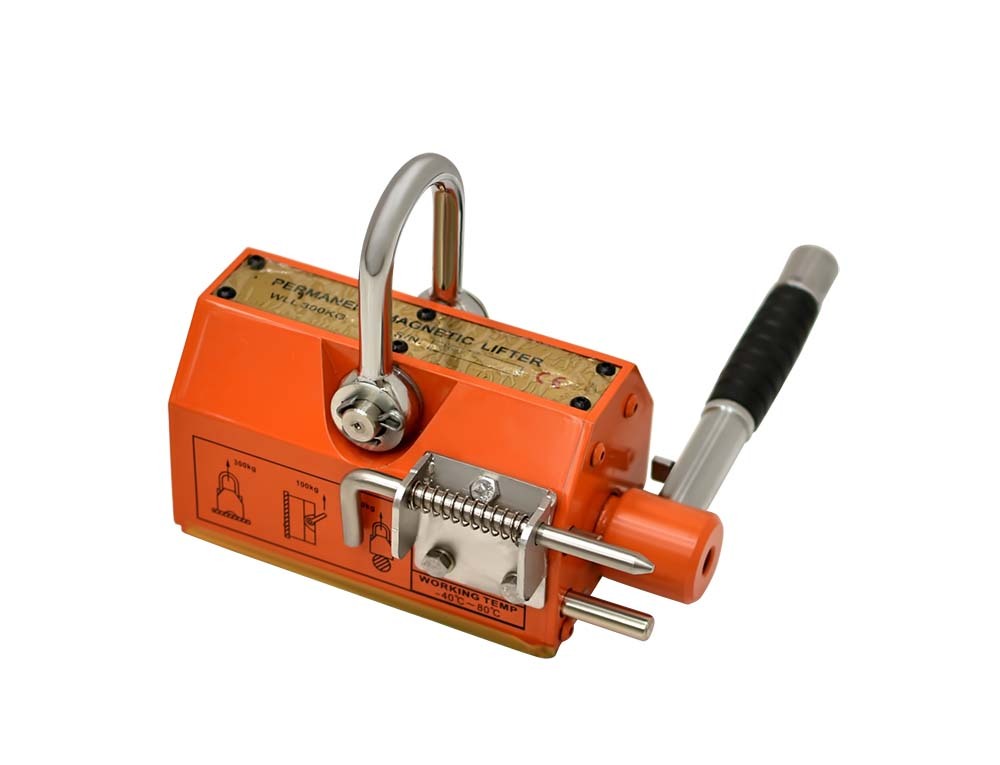

MSA Pro-Lift PL300 Lifting Magnet, 300kg Safe Working Load

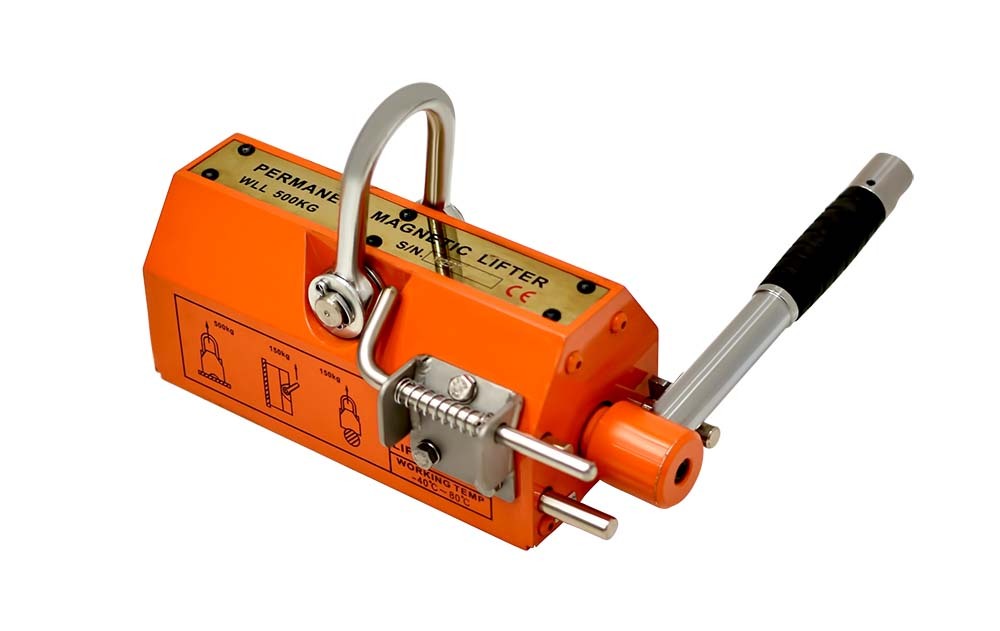

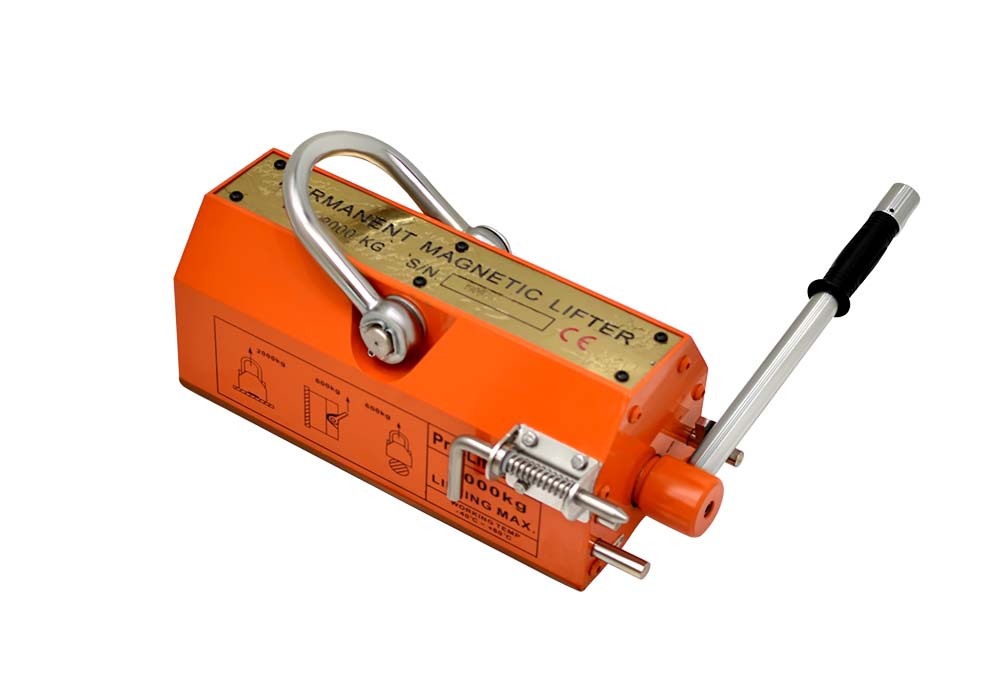

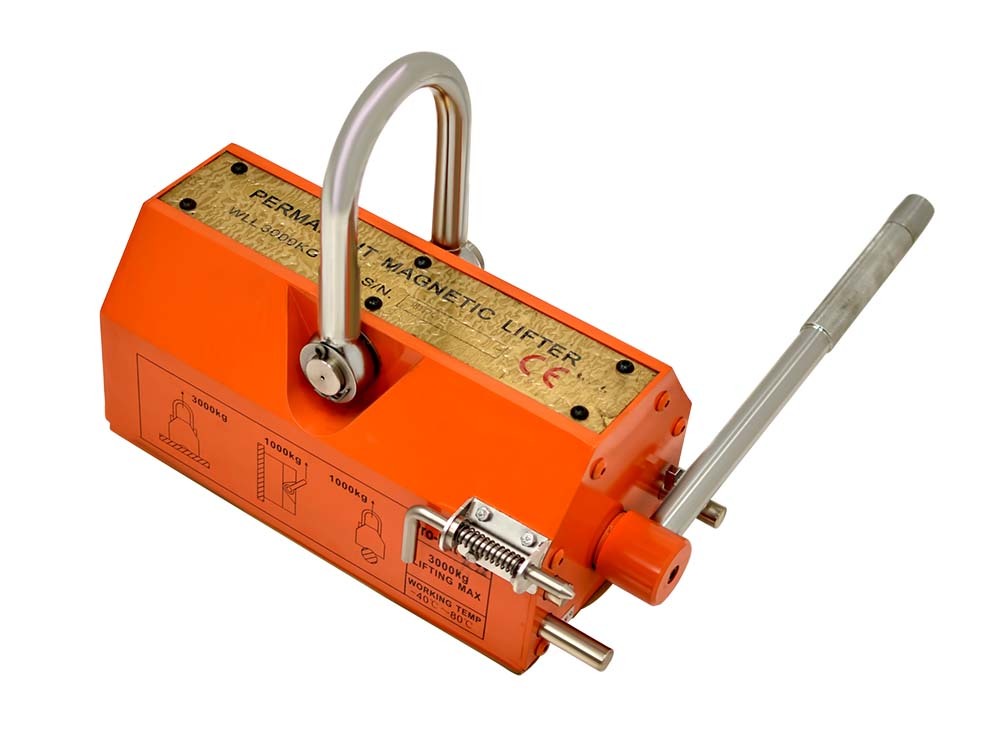

The MSA Pro-Lift is a lifting magnet sold in six models, with safe working loads from 300kg to 3000kg (manufacturer-stated). The number in each model code is the safe working load in kilograms: PL300, PL500, PL600, PL1000, PL2000 and PL3000.

For each model the catalogue lists the maximum breakaway, safe working load, full saturation thickness, minimum thickness for de-stack and net weight (manufacturer-stated). Maximum safe shear is shown as N/A for all six models.

Plan the lift to the safe working load, not to the breakaway figure. The catalogue gives a full saturation thickness for each model: steel thinner than that holds less than the rating, so check the workpiece thickness before you lift. The catalogue gives the same figure for minimum thickness for de-stack as for full saturation thickness on every model.

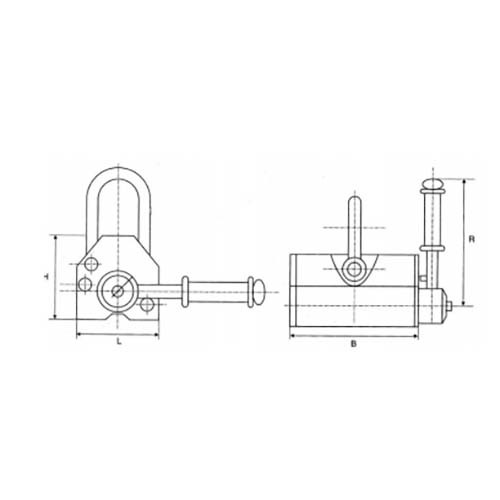

The catalogue does not give body dimensions, test conditions or certification wording for the Pro-Lift, so none are published here.

Where this product is used

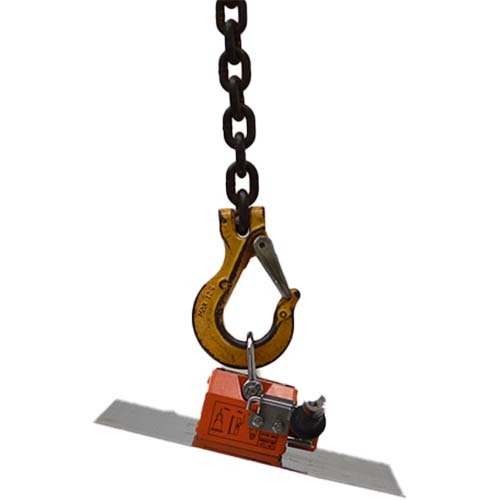

• Lifting steel workpieces with a crane or hoist, within the safe working load of the model
• De-stacking steel plate, where the catalogue gives a minimum thickness for each model
• Positioning steel sections and blocks under a crane or hoist, within the safe working load

Features

• Six models, from 300kg to 3000kg safe working load (manufacturer-stated)
• Maximum breakaway of 900kg to 9000kg (manufacturer-stated)
• Full saturation thickness of 40mm to 80mm
• Net weight of 10kg to 160kg
• Safe working load, thickness and weight listed for every model

Common specifications

Key specifications

Figures are as printed in the MSA Magnetics catalogue (manufacturer-stated). Max safe shear is N/A for every model.

Selecting the right option

Choose the model on the safe working load for your heaviest lift, then check the workpiece against the full saturation thickness for that model: steel thinner than that holds less than the rating. The safe working load and the breakaway figure are the maker's figures (manufacturer-stated) from the catalogue. A lifting magnet must be used within its safe working load, inspected before each use, and used in line with your site lifting procedure and the applicable standards and regulations. The catalogue gives no certification wording for the Pro-Lift: if your site needs test or certification documents, ask the maker for them before you buy. If you are unsure what suits your lift, speak to a qualified rigger.
