Saber 1/2" SD-5NF Ball Burr - Non Ferrous - 8020-SD5NF
Available

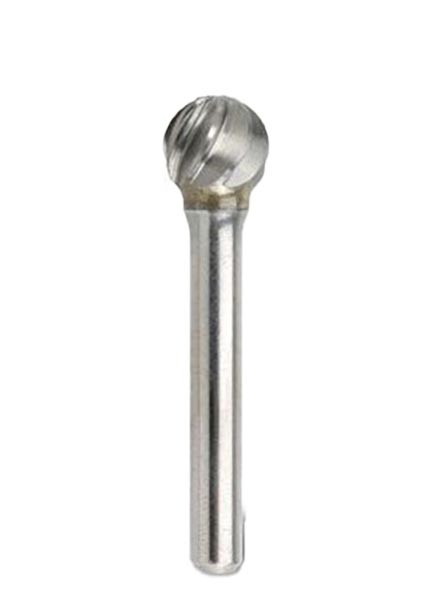

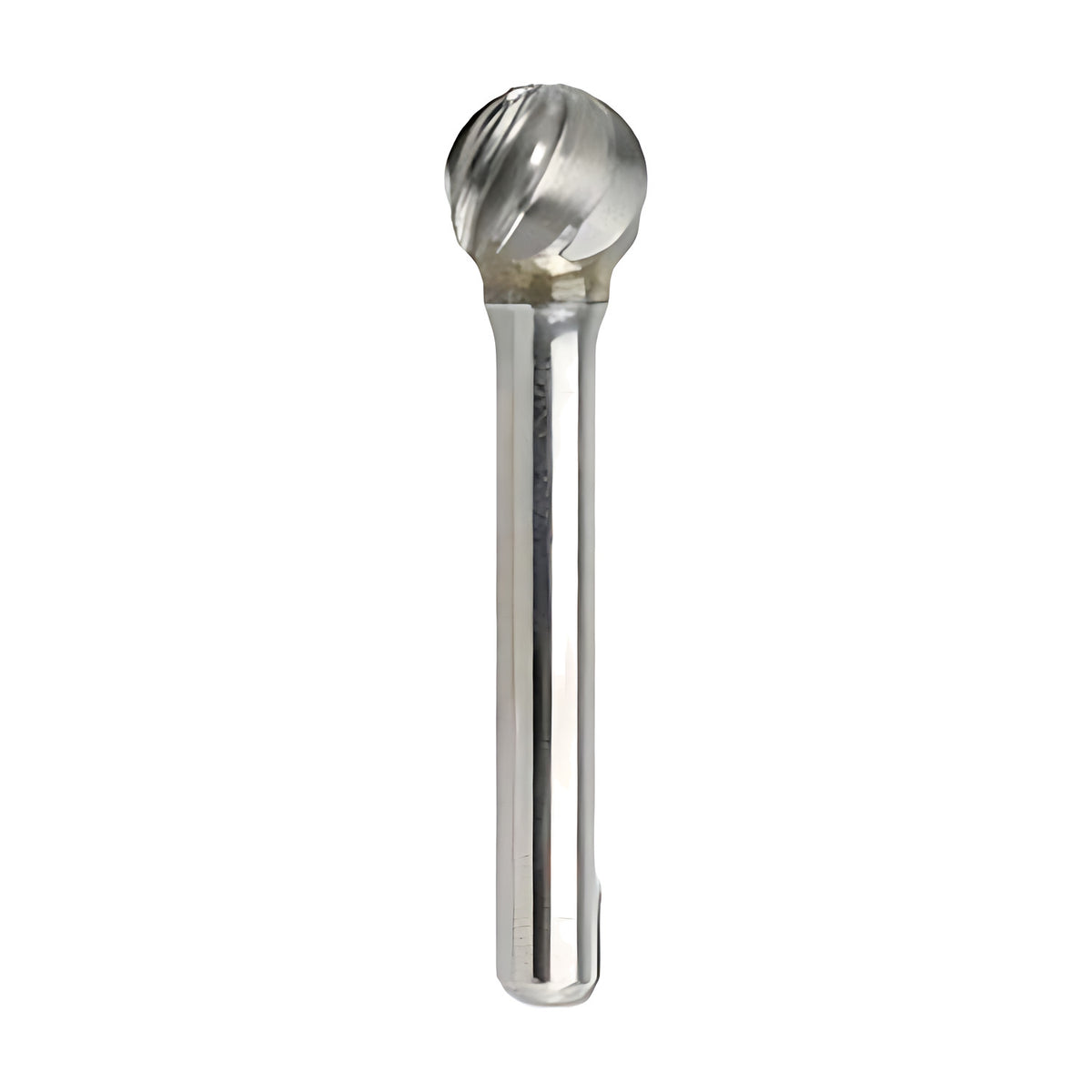

The Saber 8020-SD5NF (SD-5NF) is a 1/2" ball burr with a non-ferrous cut. It has a round head, a 2-13/64" overall length and a 1/4" shank, in tungsten carbide. It suits fabricators and maintenance fitters who shape aluminium, brass, copper and plastics.
Non-ferrous cut burrs are made for rapid stock removal with minimum chip loading, which gives longer life and less clogging. They are for non-ferrous and non-metallic materials such as aluminium, brass, copper, bronze, coarse plastic, hard rubber, reinforced plastic and fibreglass composite. Harder materials need slower speeds, smaller burrs need faster speeds and long shank burrs need slower speeds for safety. Use constant movement and light pressure, and do not sink the burr for more than one third of its periphery. For steel and cast iron, the express cut SD-5 has the same 1/2" head and 2-13/64" length.
Where this product is used
- Rapid stock removal on aluminium, brass, copper and bronze
- Shaping coarse plastic, hard rubber and reinforced plastic
- Working fibreglass composite
Features
- Non-ferrous cut tungsten carbide burr
- Minimum chip loading, so longer life and less clogging
- Suits aluminium, brass, copper, bronze, coarse plastic and fibreglass composite
- Use constant movement and light pressure
- Do not sink the burr for more than one third of its periphery
- Running below optimum speed causes chipping, above it wears the teeth early
Key specifications
| Specification | Detail |
|---|---|
| Brand | Saber |
| Model | 8020-SD5NF |
| Part number | 8020-SD5NF |
| Type | Ball burr, non-ferrous cut |
| Style | SD-5NF |
| Material | Tungsten carbide |
| Head diameter | 1/2" |
| Overall length | 2-13/64" |
| Shank diameter | 1/4" |
| Pack quantity | 1 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Saber 1/2" SD-5NF Ball Burr - Non Ferrous - 8020-SD5NF
SKU: A0207496 | Model: 8020-SD5NF
The 8020-SD5NF is a 1/2" ball burr with a non-ferrous cut. It has a 2-13/64" overall length, a 1/4" shank and a tungsten carbide head.
