Saber Metric TiN Coated M2 - HSS Jobber Set
- Saber TiN Coated M2-HSS Jobber Drills DIN338.
135° Split Point (crankshaft point)
- The split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing end thrust.
- The 135° point should be used to cut harder steel materials especially in deep hole applications.
- In these situations it will produce thicker chips minimising work hardening of the cavity.
- Faster penetration reduces abrasion and friction along the cutting edges.
Drill Bit Surface Treatment
- Gold Finish (TiN)(Titanium Nitride)
- A very hard gold-coloured surface finish a few microns thick is achieved by Physical Vapour Deposition (PVD).
- As with all surface-coated tools, performance will deteriorate after resharpening.
- The coating helps to dissipate heat and reduces friction and cold welding.
- Higher speed and feed rates can be achieved and tool life is greatly increased.
Contents
Title
Qty
Saber 1.00mm TiN Coated M2-HSS Jobber Drill
1
Saber 1.50mm TiN Coated M2-HSS Jobber Drill
1
Saber 2.00mm TiN Coated M2-HSS Jobber Drill
1
Saber 2.50mm TiN Coated M2-HSS Jobber Drill
1
Saber 3.00mm TiN Coated M2-HSS Jobber Drill
1
Saber 3.50mm TiN Coated M2-HSS Jobber Drill
1
Saber 4.00mm TiN Coated M2-HSS Jobber Drill
1
Saber 4.50mm TiN Coated M2-HSS Jobber Drill
1
Saber 5.00mm TiN Coated M2-HSS Jobber Drill
1
Saber 5.50mm TiN Coated M2-HSS Jobber Drill
1
Saber 6.00mm TiN Coated M2-HSS Jobber Drill
1
Saber 6.50mm TiN Coated M2-HSS Jobber Drill
1
Saber 7.00mm TiN Coated M2-HSS Jobber Drill
1
Saber 7.50mm TiN Coated M2-HSS Jobber Drill
1
Saber 8.00mm TiN Coated M2-HSS Jobber Drill
1
Saber 8.50mm TiN Coated M2-HSS Jobber Drill
1
Saber 9.00mm TiN Coated M2-HSS Jobber Drill
1
Saber 9.50mm TiN Coated M2-HSS Jobber Drill
1
Saber 10.00mm TiN Coated M2-HSS Jobber Drill
1
Saber 10.50mm TiN Coated M2-HSS Jobber Drill
1
Saber 11.00mm TiN Coated M2-HSS Jobber Drill
1
Saber 11.50mm TiN Coated M2-HSS Jobber Drill
1
Saber 12.00mm TiN Coated M2-HSS Jobber Drill
1
Saber 12.50mm TiN Coated M2-HSS Jobber Drill
1
Saber 13.00mm TiN Coated M2-HSS Jobber Drill
1
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

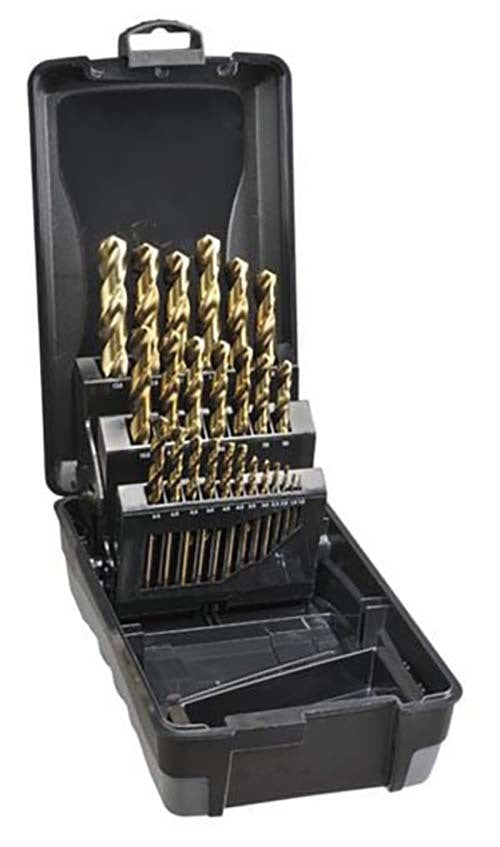

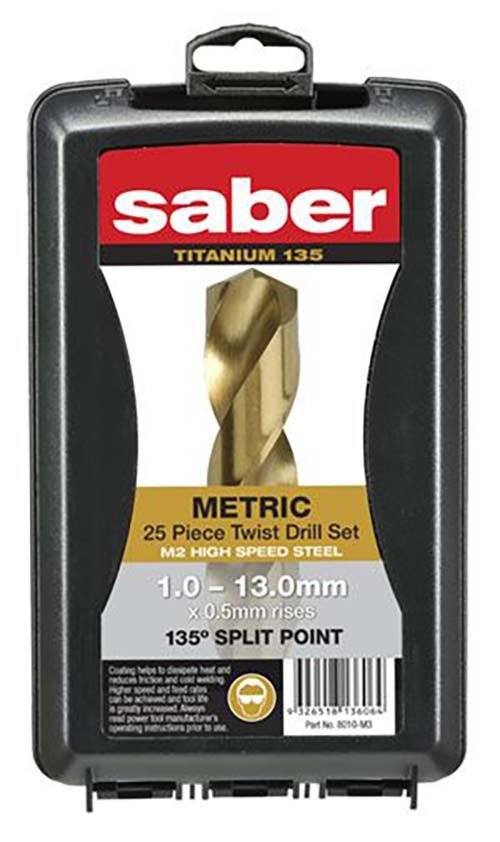

Saber Metric 25 Piece TiN Coated M2 - HSS Jobber Set - 8010-M3
Saber Metric 25 Piece TiN Coated M2 - HSS Jobber Set - 8010-M3
SKU: A0145380
Type: Jobber Drill Set
- Wide Range
- Reliable Services
- Proven Trust
Available
The Saber Metric 25 Piece TiN Coated M2 by Saber is a Jobber Drill Set with TiN coating conforming to DIN338. It provides drill sizes 1.00mm to 13.00mm and is suitable for deep hole drilling in harder steel materials and general metalworking.
