Seco CCMT09T302-M3,TP2501 Turning Insert
The price shown is for the pack.
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TP3501 with M3 chipbreaker. This is the CCMT insert style in grade TP3501 (Carbide CVD), with the M3 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 18 options.
Key Specifications
| Grade | TP3501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | M3 |
| Insert Details | T Insert Type. 7° insert side clearance angles. ± 0.05/± 0.05mm tolerance. |
About Grade TP3501
Carbide CVD. CVD Coated. Duratomic® grade. Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M3 Chipbreaker
A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow. Suitable for medium cuts in steel and stainless steel application including boring. Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

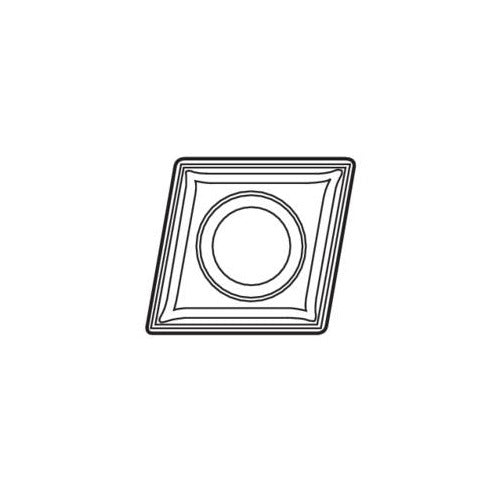

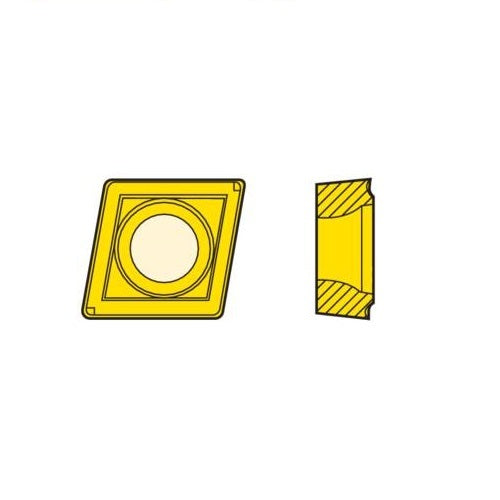

Seco Turning Insert CCMT Insert Style - M3 7° CVD Coated: CCMT09T302-M3,TP2501
SKU: A0115853 | Model: 02960838

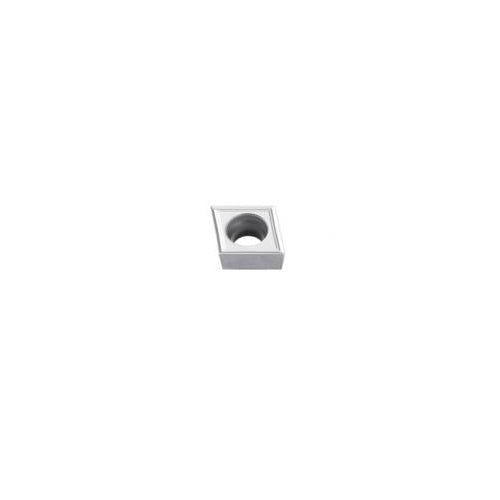

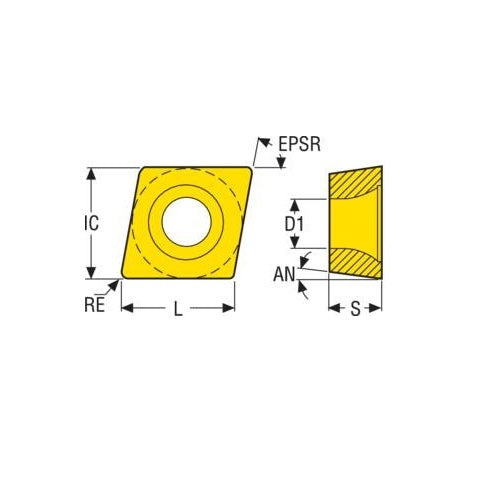

Seco Turning Insert C Shape Code 3.97 x 0.2 x 9.53mm T Insert Type - M3 7° Grade TP2501 ± 0.13/± 0.05mm CCMT09T302-M3 Pack of 10
Turning Insert C Shape Code T Insert Type - M3 7° Grade TP2501 - ± 0.13/± 0.05mm Tolerance
C shape code
T Insert Type.
7° insert side clearance angles.
± 0.13/± 0.05mm tolerance.
TP2501 Insert Grade
CVD Coated.
Duratomic® grade.
Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steel and cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
M3 Chipbreaker Programme
A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
Suitable for medium cuts in steel and stainless steel application including boring.
Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
