Seco Turning Insert C Shape Code 3.97 x | AIMS Industrial

***Illustrations shown may vary from actual product***

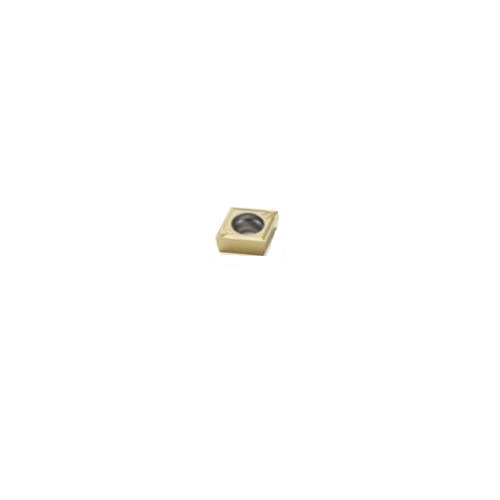

Seco Turning Insert C Shape Code 2.38 x 0.2 x 6.35mm T Insert Type - MF2 7° Grade CP500 ± 0.05/± 0.05mm CCMT060202-MF2 Pack of 10

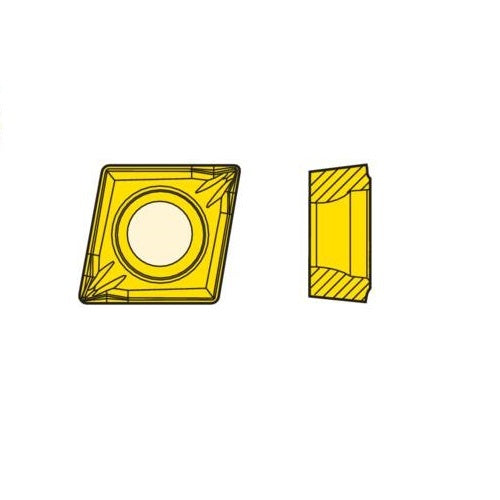

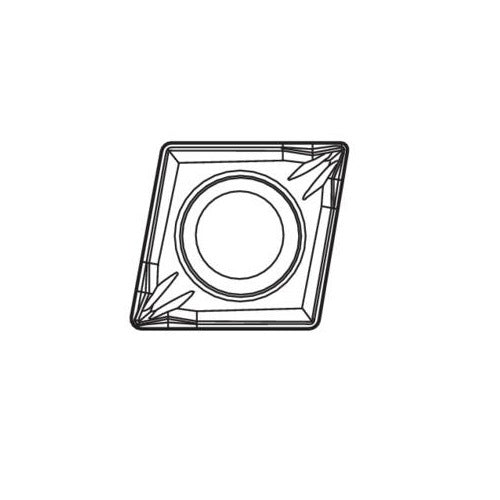

Turning Insert C Shape Code T Insert Type - MF2 7° Grade CP500

• C shape code
• T Insert Type.
• 7° insert side clearance angles.

CP500 Insert Grade

• PVD Coated.
• Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys. Especially suitable in intermittent cuts.
• (Ti, Al)N + TiN.

MF2 Chipbreaker Programme

• A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts.
• Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring.
• Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
