Seco Turning Insert C Shape Code 3.97 x | AIMS Industrial

***Illustrations shown may vary from actual product***

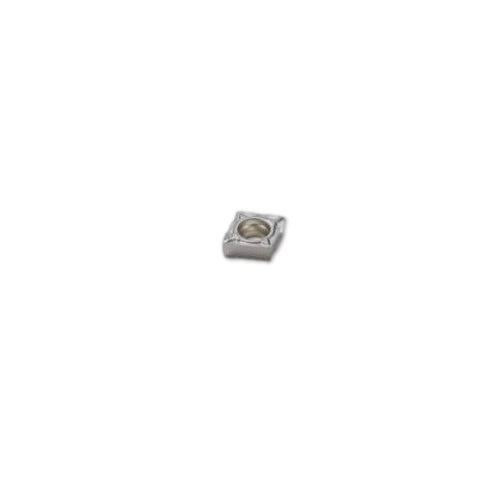

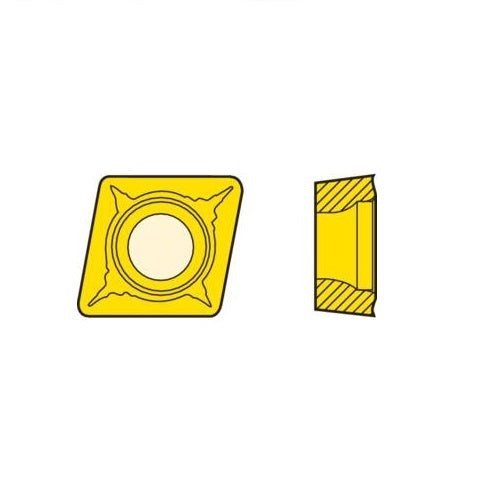

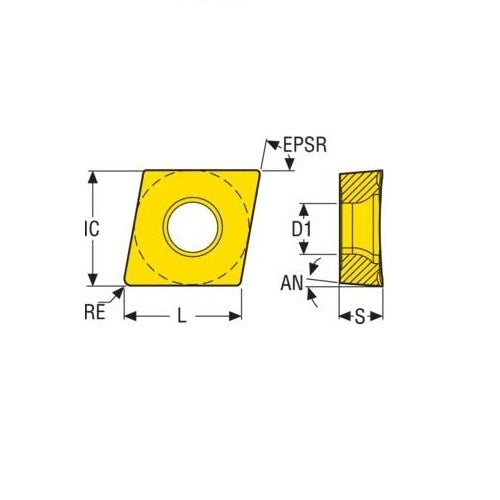

Seco Turning Insert C Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - W-F1 7° Grade TP1020 ± 0.13/± 0.05mm CCMT09T304W-F1 Pack of 10

Turning Insert C Shape Code T Insert Type - W-F1 7° Grade TP1020

• C shape code.
• T Insert Type.
• 7° insert side clearance angles.

TP1020 Insert Grade

• Cermet.
• High wear resistance cermet grade for the highest surface finish with predictability, first of all, in steels and stainless steels.

W-F1 Chipbreaker Programme

• A versatile chipbreaker for positive inserts. For finishing machining of steel, stainless steel and cast iron giving good surface finish.
• Suitable for high feed rates at small depths of cut.
• Indicative machining range: f = 0,05-0,50 mm/rev, ap = 0,25-3,00 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
