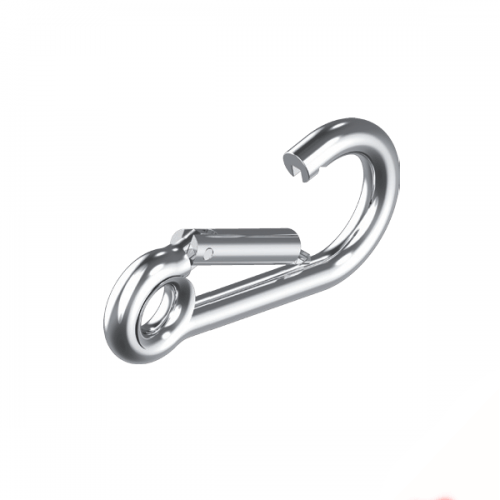

M5 Spring Hook with Eye, 316 Stainless Steel - SHEA4M5
The price shown is for the box.
Available
The Spring Hook With Eye, 316 Stainless Steel is available in 6 sizes (M5 to M12) and is a spring-gate hook with an eye at the base, for connecting rope, wire or a shackle.
The range runs to 6 variants, covering sizes M5 to M12. Variants are supplied in packs of 5 to 10, depending on size.
Made from 316 (A4) stainless steel, the grade normally specified for chloride-exposed work such as coastal installations, swimming pools, marine fittings and food-processing plant.
In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Coastal and architectural fittings
- Marine rigging, boat and yacht fittings
- Shade sails, awnings and tensioned structures
- Swimming pool and spa equipment
- Architectural work near the coast
Features
- Spring gate closes the hook opening
- Supplied in packs of 5 to 10
- Range covers M5 to M12 in 6 variants
- A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
- Eye at the base for rope, wire or a shackle

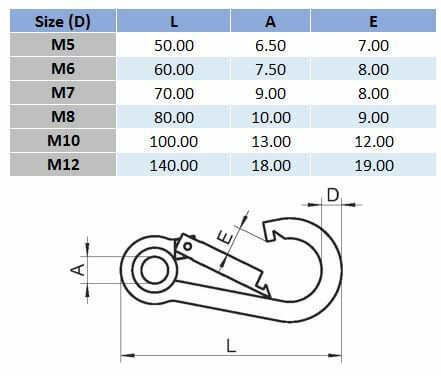

Key specifications
| Specification | Detail |
|---|---|
| Product | Spring Hook With Eye |
| Type | Spring-gate hook with an eye at the base, for connecting rope, wire or a shackle |
| Material | A4 (316) stainless steel |
| Environment | Coastal, marine, pool and food-processing use |
| Pack size | 5 to 10, by size |
| Variants | 6 |
| Key features | Spring gate closes the hook opening; Eye at the base for rope, wire or a shackle |
| Sizes available | M5 to M12 |
| Size basis | Supplier's size code (the M prefix does not always mean a thread size) |
Selecting the right option
Pick the hook by the size shown on the variant. Check the gate closes fully against the fitting it hooks onto.
Important
Do not use this product to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Spring Hook With Eye - 316 Stainless Steel: M5
SKU: A0088150 | Model: SHEA4M5
SHEA4M5: M5 spring hook with eye, 316 Stainless Steel. Sold in a box of 10. Suits marine rigging, boat and yacht fittings.
