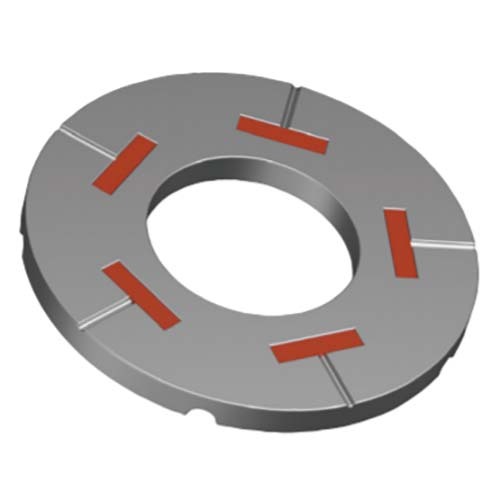

APPLIED BOLTING squirter DTI Washer, M16

There are 3 sizes of the Applied Bolting Squirter DTI (direct tension indicator) washer, Class 8.8, mechanical galvanised: M16, M27 and M36.

A Squirter DTI has a flexible silicone embedded in the depressions under its bumps, and the bolt is tightened until the calibrated amount of orange silicone appears from under the squirt locations. Squirter DTIs deliver visual verification of bolt tension. Pack quantity changes with size: pack of 100 for M16; pack of 50 for M27 and M36.

Where this product is used

• Tightening a structural bolt assembly until the calibrated amount of orange silicone appears
• Matching the washer size to the bolt size and class or grade of the assembly

Features

• Class 8.8
• Finish: Mechanical galvanised
• Direct tension indicator washer with orange silicone indication
• Pack quantity for each size

Key specifications

Choosing the right option

Match the washer size to the bolt in your assembly, and the class with the assembly.
