Stahlwille Value Pack 23/5 Shallow Offset Ring Spanner Set, 5-Piece, 10 x 11 to 18 x 19 mm
Available

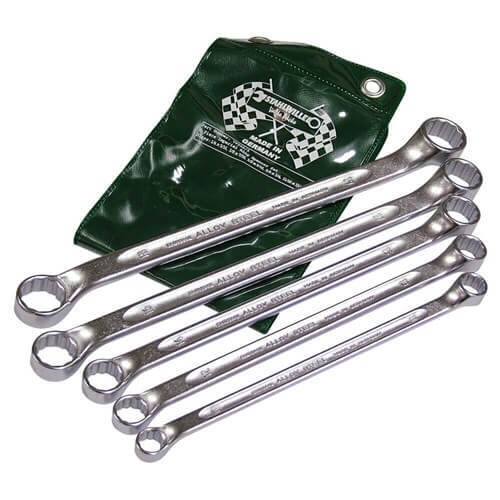

Stahlwille SWVP23/5 is a metric shallow offset ring spanner Value Pack of 5 pieces, 10 x 11 to 18 x 19mm across flats, in a plastic display pack.
The pack contains the 10 x 11, 12 x 13, 14 x 15, 16 x 17 and 18 x 19mm spanners,. They are Stahlwille series 23 ring spanners with a shallow offset of 10° and a 12-point AS-Drive ring. These spanners are also sold singly, so a worn or missing size can be replaced from the range. Series 23 is made to DIN 897 / ISO 10104. The spanners are Chrome Alloy Steel, chrome-plated.
Where this product is used
- Nuts and bolts from 10 x 11 to 18 x 19mm across flats
- Work close to a surface where clearance height is limited
- A graded set for a workshop bench, service vehicle or maintenance kit
Features
- 5-piece set, 10 x 11 to 18 x 19mm across flats
- Double-ended ring spanners, a different size at each end
- Shallow offset ring, 10°
- Plastic display pack
- Item numbers and lengths for every size
- Made to DIN 897 / ISO 10104
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Ring Spanner Set |
| Pieces | 5 |
| Size range | 10 x 11 to 18 x 19mm |
| Packaging | Plastic display pack |
| Ring offset | Shallow offset, 10° |
| Ring | 12-point (double hexagon) ring with the AS-Drive profile |
| Standard | DIN 897 / ISO 10104 |
| Material | Chrome Alloy Steel, chrome-plated |
| Sizes across flats (the two ends) | 10 x 11mm, 12 x 13mm, 14 x 15mm, 16 x 17mm, 18 x 19mm |
| Length | 188 to 251mm |
Choosing the right option
The spanners in this pack are also sold singly in the Stahlwille 23 shallow offset ring spanners (metric, single), so one missing or worn size can be replaced on its own. Nearby sets: SW23/8 shallow offset ring spanner set, 8 pieces, 6 x 7 to 20 x 22mm.
Related Stahlwille products: Stahlwille 23 shallow offset ring spanners (metric, single), SW23/8 shallow offset ring spanner set, 8 pieces, 6 x 7 to 20 x 22mm, Stahlwille 13 combination spanners (metric, single), metric ratchet ring spanners.
