Stahlwille 20a/6 Imperial Offset Ring Spanner Set, 6-Piece, 1/4 x 5/16" to 7/8 x 15/16"
Available

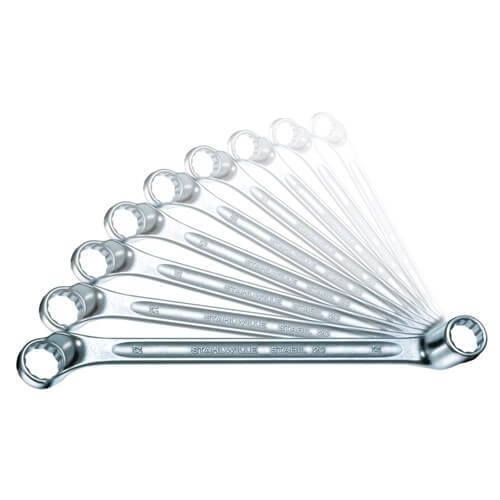

Stahlwille 20a/6 is an imperial ring spanner set of 6 pieces from 1/4 x 5/16" to 7/8 x 15/16" across flats. Each spanner is double-ended with a different size at each end and a 12-point ring, deeply offset at 75°. The set is supplied in a carton.
The set contains the 1/4 x 5/16", 3/8 x 7/16", 1/2 x 9/16", 5/8 x 3/4", 11/16 x 13/16" and 7/8 x 15/16" spanners. They are the individually sold Stahlwille 20a spanners, so a worn or missing size can be replaced from the range. The ring has the Stahlwille Anti-Slip-Drive (AS-Drive) profile, which puts the force on the flanks of the bolt or nut rather than the corners. The spanners are Chrome Alloy Steel, chrome-plated. The spanners are drop-forged, hardened and cooled in an oil bath, with a double-T profile for bending strength, a round finish for grip and thin-walled rings for hard-to-reach fastening points.
Where this product is used
- Inch-series nuts and bolts from 1/4 x 5/16" to 7/8 x 15/16" across flats
- Fasteners where the ring needs a deep offset to clear a neighbouring surface
- A graded set for a workshop bench, service vehicle or maintenance kit
Features
- 6-piece set, 1/4 x 5/16" to 7/8 x 15/16" across flats
- Double-ended ring spanners, a different size at each end
- Deep offset ring, 75°
- 12-point AS-Drive ring
- Supplied in a carton
- Chrome Alloy Steel, chrome-plated
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Ring Spanner Set |
| Pieces | 6 |
| Size range | 1/4 x 5/16" to 7/8 x 15/16" |
| Packaging | Carton |
| Ring offset | Deep offset, 75° |
| Ring | 12-point (double hexagon) ring with the AS-Drive profile |
| Material | Chrome Alloy Steel, chrome-plated |
| Length | 180 to 330mm |
Choosing the right option
Pick the set by the sizes you use most. The spanners in it are also sold singly in the Stahlwille 20a deep offset ring spanners (imperial, single), so one missing or worn size can be replaced on its own. Nearby sets: SW20a/10 imperial offset ring spanner set, 10 pieces, 1/4 x 5/16" to 7/8 x 15/16".
Related Stahlwille products: Stahlwille 20a deep offset ring spanners (imperial, single), SW20a/10 imperial offset ring spanner set, 10 pieces, 1/4 x 5/16" to 7/8 x 15/16", Stahlwille 13a combination spanners (imperial, single), imperial ratchet ring spanners.
