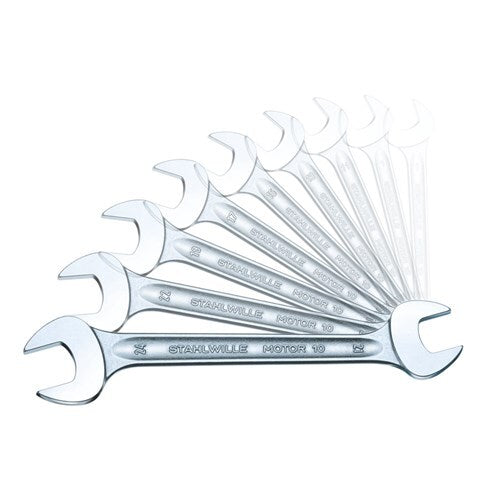

Stahlwille Imperial double open end spanner sets

Stahlwille 10a MOTOR sets hold inch-size double open end spanners with a different size at each end, a straight design and the jaws angled at 15°.

The sets contain individually sold Stahlwille 10a MOTOR spanners,. Set weight is 1,242 g for the SW10a/7. The SW10a/7 and SW10a/11 are Chrome Alloy Steel, chrome-plated. The spanners are drop-forged in a die, hardened and cooled in an oil bath, with a slim, light construction, a double-T profile for bending strength and a round finish for grip.

Where this product is used

• Inch-series nuts and bolts from 1/4" to 1 5/16" across flats
• Equipment built to inch sizes where open end spanners are wanted
• A graded set for a workshop bench, service vehicle or maintenance kit

Features

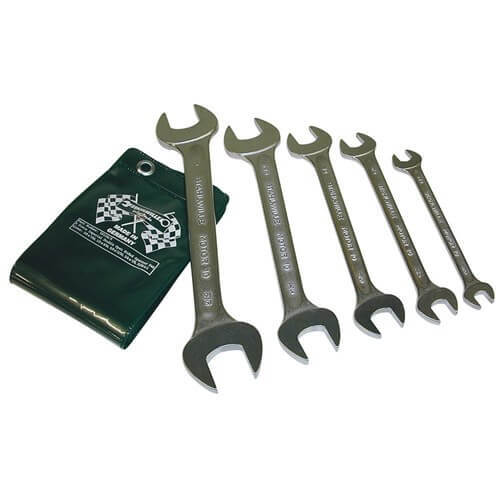

• Three options: 7 pieces, 11 pieces and a 5-piece Value Pack
• Double open end spanners, a different size at each end
• Straight design, jaws angled at 15° on the sets
• Chrome Alloy Steel, chrome-plated sets
• Set weight 1,242 g for the SW10a/7

Key specifications

Choosing the right option

Pick the option by the sizes you use most: the SW10a/11 adds 9/16 x 5/8, 19/32 x 11/16, 3/4 x 7/8 and 25/32 x 13/16" to the SW10a/7 range. The spanners are also sold singly in the Stahlwille 10a MOTOR double open end spanners (imperial, single), so one missing or worn size can be replaced on its own. Metric sizes are in the 10/10 double open end spanner set (10-piece).
