Stahlwille Drall+ Phillips screwdrivers, PH0 x 145
Available

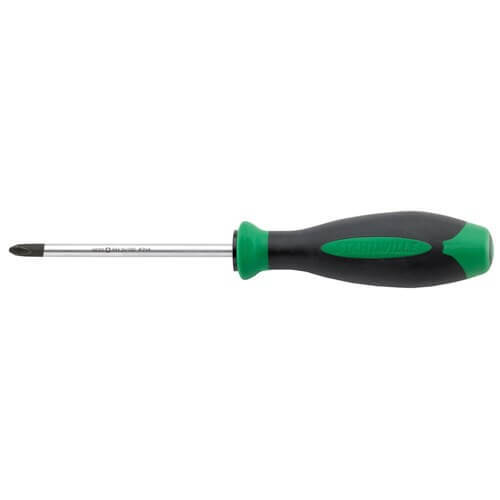

Stahlwille 4630 is a Drall+ Phillips screwdriver range in 4 sizes, PH0 to PH3, with blade lengths of 60 to 150mm and overall lengths of 145 to 275mm. The 3-component handle has a laser-marked head. The blade is Chrome Alloy Steel, matt chrome-plated, with a black tip, and the range is made to ISO 8764.
Where this product is used
- Driving and removing Phillips screws from PH0 to PH3
- Workshop, maintenance and assembly work
- Choosing the tip size that matches the screw recess
Features
- 4 Phillips sizes, PH0 to PH3
- 3-component handle with laser-marked head
- Chrome Alloy Steel, matt chrome-plated, black tip
- Made to ISO 8764
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | Phillips Screwdriver |
| Sizes in this range | 4 |
| Profile | Phillips (PH) |
| Blade length (L1) | 60 to 150mm |
| Overall length | 145 to 275mm |
| Standard | ISO 8764 |
| Material | Chrome Alloy Steel, matt chrome-plated, black tip |
| Size | PH0, PH1, PH2, PH3 |
| Order no | 46303000 to 46303003 |
| Overall length (L2) | 145 to 275mm |
| Weight | 90 g, 146 g |
Choosing the right option
Match the tip to the recess size. Pozidriv screws need a Pozidriv tip, which is in the Stahlwille 4640 Drall+ Pozidriv screwdrivers. A longer Phillips version is the Stahlwille 4631 Drall+ extra long Phillips screwdrivers, the Stahlwille 4632 Drall+ Phillips screwdrivers with hexagon has a hexagon on the blade, and the 3K handle versions are in the Stahlwille 4830 3K Drall Phillips screwdrivers. Insulated versions are in the Stahlwille 4665 VDE Drall+ insulated Phillips screwdrivers.
Related Stahlwille products: Stahlwille 4640 Drall+ Pozidriv screwdrivers, Stahlwille 4631 Drall+ extra long Phillips screwdrivers, Stahlwille 4632 Drall+ Phillips screwdrivers with hexagon, Stahlwille 4830 3K Drall Phillips screwdrivers.
| Option | Part number | SKU |
|---|---|---|
| PH0 x 145 | SW4630 0 - 46303000 | A0104506 |
| PH1 x 185 | SW4630 1 - 46303001 | A0104507 |
| PH2 x 215 | SW4630 2 - 46303002 | A0104508 |
| PH3 x 275 | SW4630 3 - 46303003 | A0104509 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Stahlwille 4630 Drall+ Phillips Screwdrivers, PH0 to PH3: PH0 x 145
SKU: A0104506 | Model: SW4630 0 - 46303000
Stahlwille SW4630 PH0: Phillips screwdriver, 60mm blade, 145mm overall, order number 46303000. Profile: Phillips (PH).
