Stahlwille SW10767 1.3 mm Ball End Hex Key, Long Series, 12 x 72 mm
Out of stock

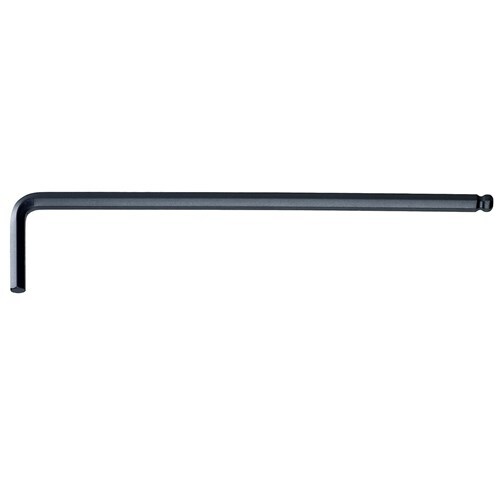

The Stahlwille 10767 is a range of ball end L-type hex keys in the long series: 9 metric sizes (1.3, 1.5, 2, 2.5, 3, 4, 6, 10 and 12 mm), for hexagon socket head screws. The ball end is on the long arm and gives a swivel angle of up to 25 degrees each side (manufacturer-stated).
The keys are Chrome Vanadium with a gunmetal finish, and Stahlwille prints no DIN standard for this range. The ball end lets the key enter the screw at an angle, which helps where the screw cannot be approached straight on. A ball end engages the screw less fully than a plain hexagon, so use a plain hex key where the access allows. The short arm length is published for every size. The long arm length is published for the 1.3, 1.5, 2 and 2.5 mm keys, and shown as a dash for the other sizes where Stahlwille's datasheet and 2017 brochure differ.
Where this product is used
- Hexagon socket head screws that cannot be reached square-on
- Screws behind brackets, pipework or housings that call for an angled approach
- Replacing a worn or missing key from a ball end hex key set
Features
- Ball end on the long arm (manufacturer-stated)
- Swivel angle up to 25 degrees each side (manufacturer-stated)
- 9 metric sizes from 1.3 to 12 mm (manufacturer-stated)
- Chrome Vanadium, gunmetal finish (manufacturer-stated)
- Short arm length published for every size (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Hex sizes | 1.3 to 12 mm |
| Short arm length (L1) | 12 to 45 mm |
| Long arm length (L2) | 72, 89, 99 and 112 mm on the 1.3, 1.5, 2 and 2.5 mm keys, not published for the other sizes |
| Ball end | On the long arm, swivel angle up to 25 degrees each side |
| Material | Chrome Vanadium |
| Finish | Gunmetal |
| Sizes in this range | 9 |
Key specifications
| Hex size | Model | Order no. | Short arm | Long arm |
|---|---|---|---|---|
| 1.3 mm | SW10767 1.3 | 43570130 | 12 mm | 72 mm |
| 1.5 mm | SW10767 1.5 | 43260015 | 14 mm | 89 mm |
| 2 mm | SW10767 2 | 43260002 | 16 mm | 99 mm |
| 2.5 mm | SW10767 2.5 | 43260025 | 18 mm | 112 mm |
| 3 mm | SW10767 3 | 43260003 | 20 mm | - |
| 4 mm | SW10767 4 | 43260004 | 25 mm | - |
| 6 mm | SW10767 6 | 43260006 | 32 mm | - |
| 10 mm | SW10767 10 | 43260010 | 40 mm | - |
| 12 mm | SW10767 12 | 43260012 | 45 mm | - |
A dash means the figure is not published on this page. Arm lengths are manufacturer-stated; the short arm is L1 and the long arm is L2 in Stahlwille's tables.
Selecting the right option
Pick the key by the hexagon socket in the screw head. Where the screw can be reached straight on, the plain 10760 CV L-type hex keys are the better fit. The same ball end keys come in sets: the 10767/9 ball end hex key set and the 10767H/9 ball end hex key set with holding function in metric sizes, and the 10767a/13 inch ball end hex key set in inch sizes. For a ball point on a ratchet see the 54KK ball point INHEX sockets, 1/2" drive.
Related products
Related Stahlwille products: 10760 CV L-type hex keys, 10767/9 ball end hex key set, 10767H/9 ball end hex key set with holding function, 10767a/13 inch ball end hex key set, 54KK ball point INHEX sockets, 1/2" drive and T-handle hex keys.
