Stahlwille L-type hex keys, 1.5mm
Available

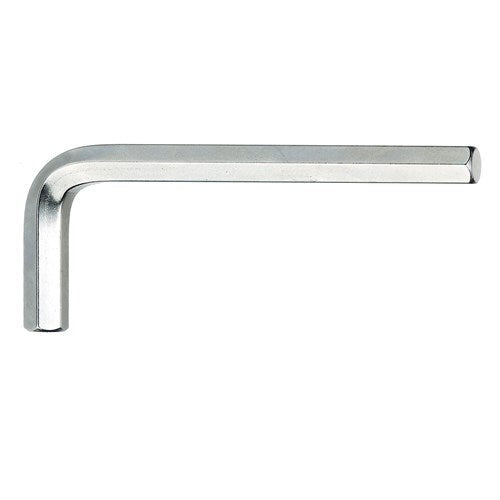

Stahlwille 10760 CV is a range of L-type hex keys in the short series: 24 metric sizes from 0.7 to 36mm, for hexagon socket head screws. They are made to DIN ISO 2936, in Chrome Vanadium with a nickel-plated finish; the 0.7, 0.9 and 1.3mm keys have a gunmetal finish instead.
The size is the width across flats of the hexagon, so match it to the socket in the screw head. Single keys suit replacing a lost or worn key from a set, or stocking the sizes a workshop uses most.
Where this product is used
- Hexagon socket head screws from 0.7 to 36mm
- Machinery assembly, maintenance and repair
- Replacing a worn or missing key from a hex key set
Features
- 24 metric sizes from 0.7 to 36mm
- Chrome Vanadium, nickel plated
- 0.7, 0.9 and 1.3mm keys in gunmetal finish
- Made to DIN ISO 2936
Key specifications
| Specification | Detail |
|---|---|
| Brand | Stahlwille |
| Product type | L-Wrench |
| Hex sizes | 0.7 to 36mm |
| Short arm length (L1) | 8 to 140mm |
| Long arm length (L2) | 32 to 355mm |
| Standard | DIN ISO 2936 |
| Material | Chrome Vanadium |
| Finish | Nickel plated, the 0.7, 0.9 and 1.3mm keys are gunmetal |
| Sizes in this range | 24 |
| Hex size | 0.7 to 36mm |
| Order no | 43150002 to 43150350 |
| Short arm | 8 to 140mm |
| Long arm | 32 to 355mm |
Choosing the right option
Pick the key by the hexagon socket in the screw head. For a ball end on the long arm, which lets the key enter the screw at an angle, see the 10767 ball end hex keys. The same keys come in sets: the 10760CV/9 L-type hex key set in metric sizes, and the 10760aCV/10Pc inch hex key set and 10760aCV/13 inch hex key set in inch sizes. For hex sockets on a ratchet see the 54 INHEX sockets, 1/2" drive and the 49 INHEX sockets, 3/8" drive.
Related Stahlwille products: 10767 ball end hex keys, 10760CV/9 L-type hex key set, 10760aCV/10Pc inch hex key set, 10760aCV/13 inch hex key set.
| Option | Part number | SKU |
|---|---|---|
| 0.7 | SW10760 CV 0.7MM - 431500 | A0104714 |
| 0.9 | SW10760 CV 0.9MM - 431500 | A0104715 |
| 1.3 | SW10760 CV 1.3MM - 431501 | A0104716 |
| 1.5 | SW10760 CV 1.5 - 43150150 | A0104717 |
| 2.0 | SW10760 CV 2 - 43150002 | A0104724 |
| 3.0 | SW10760 CV 3 - 43150003 | A0104729 |
| 3.5 | SW10760 CV 3.5 - 43150350 | A0104730 |
| 5.0 | SW10760 CV 5 - 43150005 | A0104735 |
| 6.0 | SW10760 CV 6 - 43150006 | A0104736 |
| 7.0 | SW10760 CV 7 - 43150007 | A0104737 |
| 8.0 | SW10760 CV 8 - 43150008 | A0104738 |
| 9.0 | SW10760 CV 9 - 43150009 | A0104739 |
| 10.0 | SW10760 CV 10 - 43150010 | A0104718 |
| 11.0 | SW10760 CV 11 - 43150011 | A0104719 |
| 12.0 | SW10760 CV 12 - 43150012 | A0104720 |
| 14.0 | SW10760 CV 14 - 43150014 | A0104721 |
| 17.0 | SW10760 CV 17 - 43150017 | A0104722 |
| 19.0 | SW10760 CV 19 - 43150019 | A0104723 |
| 22.0 | SW10760 CV 22 - 43150022 | A0104726 |
| 24.0 | SW10760 CV 24 - 43150024 | A0104727 |
| 27.0 | SW10760 CV 27 - 43150027 | A0104728 |
| 30.0 | SW10760 CV 30 - 43150030 | A0104731 |
| 32.0 | SW10760 CV 32 - 43150032 | A0104732 |
| 36.0 | SW10760 CV 36 - 43150036 | A0104733 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Stahlwille 10760 CV L-Type Hex Keys, Short Series, 0.7 to 36 mm: 1.5
SKU: A0104717 | Model: SW10760 CV 1.5 - 43150150
Stahlwille SW10760 CV 1.5mm L-type hex key, short series, 14mm short arm, 45mm long arm, order number 43150150.
