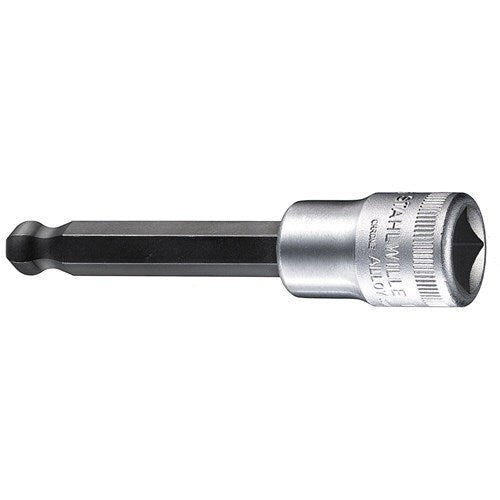

Stahlwille SW54KK 5 mm Ball Point INHEX Socket, 1/2" Drive, 100 mm Long
Available
The Stahlwille 54KK and 1054KK are ball point INHEX sockets for 1/2" drive: 7 variants in metric sizes from 5 to 10 mm, for hexagon socket head screws. The 54KK is 100 mm long (5, 6, 7, 8 and 10 mm) and the 1054KK special length is 238 mm long (5 and 8 mm). Stahlwille states a swivel angle of up to 25 degrees to each side.
A ball point hexagon lets the socket enter the screw at an angle, which helps where the screw cannot be approached in a straight line. The sockets are Chrome Alloy Steel, chrome-plated. The datasheets print no DIN standard, no torque rating and no striking or extension instruction. A ball point engages the screw less fully than a full hexagon, so use the straight Stahlwille 54 INHEX sockets where the access allows and keep the ball point for the awkward screws. The 2017 Stahlwille brochure marks the 54KK 7 mm with the application BMW brakes.
Where this product is used
- Hexagon socket head screws that cannot be reached square-on
- Screws behind brackets, pipework or housings that call for an angled approach
- Long 238 mm reach on the 1054KK where a standard length cannot get to the screw
Features
- Ball point hexagon for 1/2" drive (manufacturer-stated)
- Swivel angle up to 25 degrees each side (manufacturer-stated)
- 54KK at 100 mm long, 1054KK at 238 mm long (manufacturer-stated)
- Metric sizes 5, 6, 7, 8 and 10 mm (manufacturer-stated)
- Chrome Alloy Steel, chrome-plated (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Drive size | 1/2" square |
| Sizes | 5 to 10 mm |
| Length | 100 to 238 mm |
| Tip | Ball point hexagon, swivel angle up to 25 degrees each side |
| Material | Chrome Alloy Steel, chrome-plated |
| Variants in this range | 7 |
Key specifications
| Hex size | Model | Order no. | Length | Weight |
|---|---|---|---|---|
| 5 mm | SW54KK 5 | 03280005 | 100 mm | 75 g |
| 5 mm | SW1054KK 5 | 03310005 | 238 mm | 145 g |
| 6 mm | SW54KK 6 | 03280006 | 100 mm | 80 g |
| 7 mm | SW54KK 7 | 03280007 | 100 mm | 85 g |
| 8 mm | SW54KK 8 | 03280008 | 100 mm | 95 g |
| 8 mm | SW1054KK 8 | 03310008 | 238 mm | 154 g |
| 10 mm | SW54KK 10 | 03280010 | 100 mm | 120 g |
A dash means the figure is not published on this page. Lengths and weights are manufacturer-stated.
Selecting the right option
Check the length in the size table: the 54KK is 100 mm long and the 1054KK is 238 mm long. Where the screw can be reached straight on, the full hexagon Stahlwille 54 INHEX sockets or Stahlwille 1054 long INHEX sockets are the better fit. Turn them with a 512 1/2" drive reversible ratchet. For hand-held ball-end hex keys see the ball-end hex keys, long series.
Related products
Related Stahlwille products: 512 1/2" drive reversible ratchet, 509 1/2" drive extension bars, 510 1/2" drive universal joint, ball-end hex keys, long series and SWVP1054/4 extra long INHEX socket value pack (1/2" drive).
