Stahlwille SW1054/5 INHEX Socket, 5 mm, 1/2" Drive, 180 mm Long
Available
The Stahlwille 1054 is a range of long metric INHEX sockets for 1/2" drive: 9 variants in hex sizes from 5 to 13 mm and lengths from 70 mm to 220 mm, for hexagon socket head screws. The datasheets print DIN 7422 (manufacturer-stated).
Stahlwille groups these under special lengths (Sonderlängen) and extra long, and several hex sizes come in more than one length: the 6 mm in 70 mm and 220 mm, and the 8 mm in 120 mm and 140 mm. The length is in the size table and in each variant name, so choose by length as well as hex size. The sockets are Chrome Alloy Steel, chrome-plated. The datasheets print no torque rating and no striking or extension instruction; they are for hand use.
Where this product is used
- 5 to 13 mm hexagon socket head screws set deep in a casting, flange or housing
- Reaching past a raised edge where a standard 60 mm socket will not clear
- Toolkits with a 1/2" drive ratchet that need extra reach
Features
- Long INHEX sockets for 1/2" drive (manufacturer-stated)
- Hex sizes from 5 to 13 mm (manufacturer-stated)
- Lengths from 70 to 220 mm (manufacturer-stated)
- Chrome Alloy Steel, chrome-plated (manufacturer-stated)
- Listed to DIN 7422 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Drive size | 1/2" square |
| Sizes | 5 to 13 mm |
| Length | 70 to 220 mm |
| Standard | DIN 7422 (manufacturer-stated) |
| Material | Chrome Alloy Steel, chrome-plated |
| Variants in this range | 9 |
Key specifications
| Hex size | Model | Order no. | Length | Weight |
|---|---|---|---|---|
| 5 mm | SW1054/5 | 03151805 | 180 mm | 118 g |
| 6 mm | SW1054/6 | 03150706 | 70 mm | 72 g |
| 6 mm | SW1054/6L | 03152206 | 220 mm | 108 g |
| 7 mm | SW1054/7 | 03151007 | 100 mm | 87 g |
| 8 mm | SW1054/8K | 03151208 | 120 mm | 104 g |
| 8 mm | SW1054/8 | 03151408 | 140 mm | 114 g |
| 10 mm | SW1054/10 | 03151410 | 140 mm | 150 g |

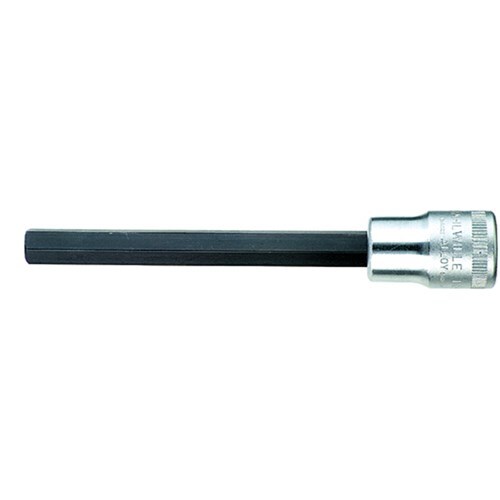

| 12 mm | SW1054/12 | 03151412 | 140 mm | 200 g |
| 13 mm | SW1054/13 | 03150713 | 70 mm | 130 g |
A dash means the figure is not published on this page. Lengths and weights are manufacturer-stated.
Selecting the right option
Check the length in the size table as well as the hex size. For the standard 60 mm length see the Stahlwille 54 INHEX sockets, for the shortest special lengths the Stahlwille 3054 INHEX sockets, and for 120 to 140 mm the Stahlwille 2054 extra long INHEX sockets. The SWVP1054/4 extra long INHEX socket value pack (1/2" drive) bundles four long sizes. Turn them with a 512 1/2" drive reversible ratchet.
Related products
Related Stahlwille products: SWVP1054/4 extra long INHEX socket value pack (1/2" drive), 512 1/2" drive reversible ratchet, 509 1/2" drive extension bars, 504 1/2" drive flexible handle and 510 1/2" drive universal joint.
