Stahlwille SW3054/6 INHEX Socket, 6 mm, 1/2" Drive, 100 mm Long

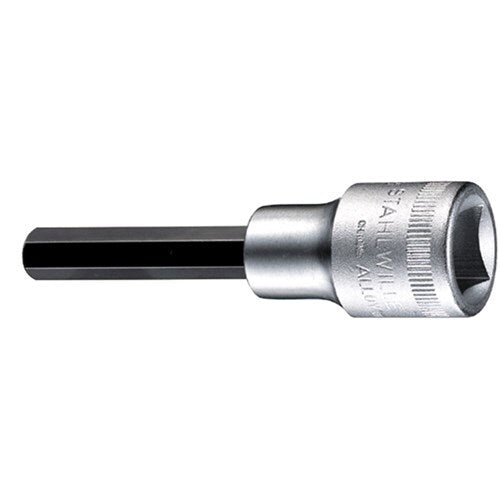

The Stahlwille 3054 is a pair of special length metric INHEX sockets for 1/2" drive: a 6 mm hex at 100 mm long and an 8 mm hex at 80 mm long, for hexagon socket head screws. The datasheets print DIN 7422 (manufacturer-stated).

Stahlwille prints these as special lengths (Sonderlängen) and lists them with the extra long version. The 8 mm socket is the shorter of the two, so check the length against the clearance before ordering. The sockets are Chrome Alloy Steel, chrome-plated. The datasheets print no torque rating and no striking or extension instruction; they are for hand use.

Where this product is used

• 6 and 8 mm hexagon socket head screws where the standard 60 mm socket is too short
• Screws set in a recess or behind a flange
• Toolkits with a 1/2" drive ratchet that need a little extra reach

Features

• Special length INHEX sockets for 1/2" drive (manufacturer-stated)
• 6 mm at 100 mm long and 8 mm at 80 mm long (manufacturer-stated)
• 1/2" internal square drive (manufacturer-stated)
• Chrome Alloy Steel, chrome-plated (manufacturer-stated)
• Listed to DIN 7422 (manufacturer-stated)

Common specifications

Key specifications

A dash means the figure is not published on this page. Lengths and weights are manufacturer-stated.

Selecting the right option

Check the length in the size table as well as the hex size: the 6 mm is 100 mm long and the 8 mm is 80 mm long. For the standard length see the Stahlwille 54 INHEX sockets, and for more reach the Stahlwille 1054 long INHEX sockets and Stahlwille 2054 extra long INHEX sockets. Turn them with a 512 1/2" drive reversible ratchet.
