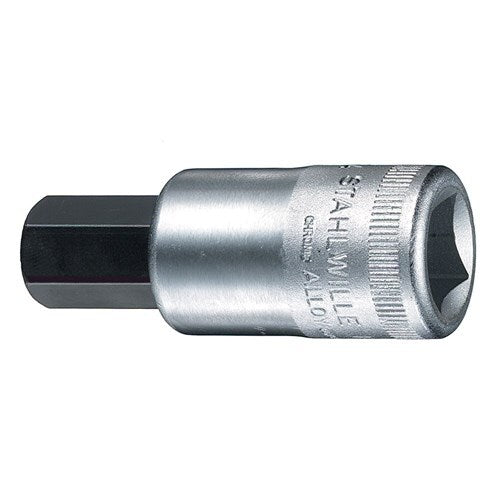

Stahlwille SW54a 1/2" INHEX Socket, 1/2" Drive, 60 mm Long
Out of stock
The Stahlwille 54a is the inch-size INHEX socket range for 1/2" drive: 8 hex sizes from 1/4" to 3/4", each 60 mm long, for hexagon socket head screws. The datasheets print DIN 7422 (manufacturer-stated).
The sockets are Chrome Alloy Steel, chrome-plated. Hex sizes are printed in inches only. The square drive is internal, so the socket fits a 1/2" drive ratchet, handle, extension or torque wrench. The datasheets print no torque rating and no striking or extension instruction; they are for hand use.
Where this product is used
- Inch-series hexagon socket head screws from 1/4" to 3/4"
- Equipment built to inch sizes, including imported machinery and plant
- Toolkits with a 1/2" drive ratchet that need a fractional hex socket
Features
- INHEX socket, 60 mm long (manufacturer-stated)
- 8 inch sizes from 1/4" to 3/4" (manufacturer-stated)
- 1/2" internal square drive (manufacturer-stated)
- Chrome Alloy Steel, chrome-plated (manufacturer-stated)
- Listed to DIN 7422 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Drive size | 1/2" square |
| Sizes | 1/4" to 3/4" |
| Length | 60 mm |
| Standard | DIN 7422 (manufacturer-stated) |
| Material | Chrome Alloy Steel, chrome-plated |
| Sizes in this range | 8 |
Key specifications
| Hex size | Model | Order no. | Length | Weight |
|---|---|---|---|---|
| 1/4" | SW54a 1/4 | 03450016 | 60 mm | 75 g |
| 5/16" | SW54a 5/16 | 03450020 | 60 mm | 81 g |
| 3/8" | SW54a 3/8 | 03450024 | 60 mm | - |
| 7/16" | SW54a 7/16 | 03450028 | 60 mm | 103 g |
| 1/2" | SW54a 1/2 | 03450032 | 60 mm | 125 g |
| 9/16" | SW54a 9/16 | 03450034 | 60 mm | 137 g |
| 5/8" | SW54a 5/8 | 03450036 | 60 mm | 169 g |
| 3/4" | SW54a 3/4 | 03450040 | 60 mm | 244 g |
A dash means the figure is not published on this page. Lengths and weights are manufacturer-stated.
Selecting the right option
Pick the hex size by the inch hexagon socket in the screw head. For metric sizes on a 1/2" drive see the Stahlwille 54 INHEX sockets, and for inch sizes on a 3/8" drive the Stahlwille 49a INHEX sockets. Turn them with a 512 1/2" drive reversible ratchet, and the 509 1/2" drive extension bars add reach.
Related products
Related Stahlwille products: 512 1/2" drive reversible ratchet, 509 1/2" drive extension bars, 504 1/2" drive flexible handle, 510 1/2" drive universal joint and L-type hex keys, short series.
