Stahlwille Inch-pound torque wrenches, 9 x 12mm

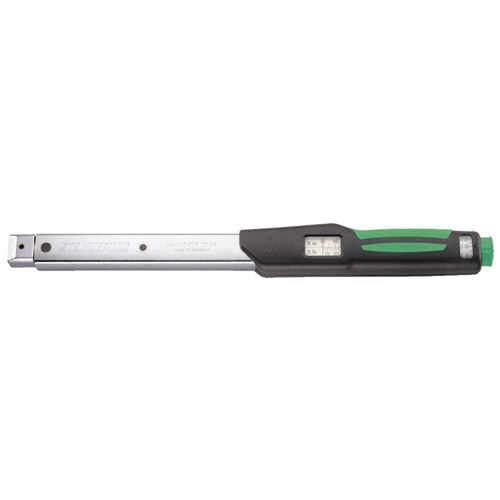

Stahlwille MANOSKOP 730NA is the inch-pound version of the 730N clicking torque wrench for interchangeable insert tools. Torque is set one-handed with the QuickSelect knob (pull, set, lock) and read from a twin in·lb and ft·lb scale with a ring scale for fine setting. The wrench gives a noticeable double signal when the preset torque is reached, and the measuring element is only under load while force is being applied, so there is no need to reset it to zero after use.

The deviation of indication is ±3% (size a/2: ±4%), and it comes with a calibration certificate in accordance with DIN EN ISO 6789-2:2017. Insert tools are ordered separately.

Where this product is used

• Fasteners with a torque specified in inch-pounds or foot-pounds
• Maintenance of equipment built to inch-pound torque specifications
• Work where one wrench must take a range of insert tools

Features

• Twin in·lb and ft·lb scale with a ring scale for fine setting
• QuickSelect rapid setting: pull, set, lock, all using the one setting knob
• Noticeable double signal when the preset torque is reached
• No need to reset to zero: the measuring element is only under load while force is applied
• Square drive with QuickRelease safety lock for 9 x 12mm and 14 x 18mm insert tools
• Handle resistant to oils, grease, fuels, brake fluids and Skydrol

Key specifications

Choosing the right option

Choose the size so your inch-pound specification sits inside the range, and match the holder to your insert tools: a/2, a/5 and a/10 take 9 x 12mm tools, a/20 and a/40 take 14 x 18mm tools. If your specifications are in N·m, see the Stahlwille 730N clicking torque wrenches, 4 to 650 N·m. For the smallest inch-pound size in a quick-adjust format see the Stahlwille 730a Quick a/2 inch-pound torque wrench, 30 to 175"·lb.
