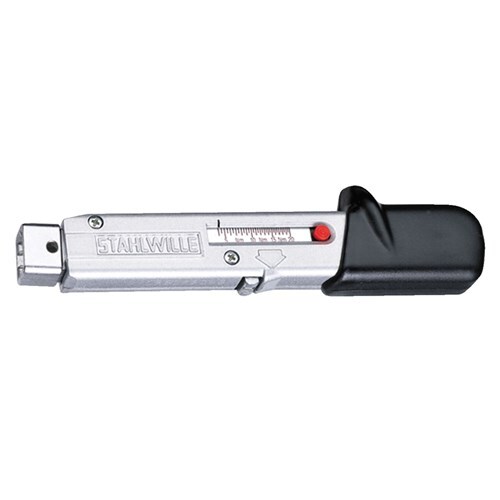

Stahlwille Inch-pound torque wrench

Stahlwille MANOSKOP 730a Quick a/2 is the inch-pound version of the small 730 Quick: a quick-adjust mechanical torque wrench for 30 to 175"·lb with a 9 x 12mm insert tool holder. It is 179mm long and weighs 315 g.

The wrench has a cut-out with a double stop signal and a robust steel tube that encloses all working parts, and reversible insert tools allow anticlockwise operation. The deviation of indication is ±4%, and it comes with a calibration certificate in accordance with DIN EN ISO 6789-2:2017. Insert tools are ordered separately.

Where this product is used

• Small fasteners with a torque specified in inch-pounds, between 30 and 175"·lb
• Equipment built or serviced to US-style inch-pound torque specifications

Features

• 30 to 175"·lb range, scaled in inch-pounds
• Compact: 179mm long and 315 g
• Quick adjuster with cut-out and double stop signal
• 9 x 12mm insert tool holder
• Reversible insert tools allow anticlockwise operation

Key specifications

Choosing the right option

For the same size in N·m see the Stahlwille 730 Quick size 2 torque wrench, 4 to 20 N·m. If you want a clicking wrench with a twin in·lb and ft·lb scale, see the Stahlwille 730NA inch-pound torque wrenches, 40 to 3600"·lb, whose lowest size covers 40 to 180"·lb.
