Stahlwille Compact torque wrench

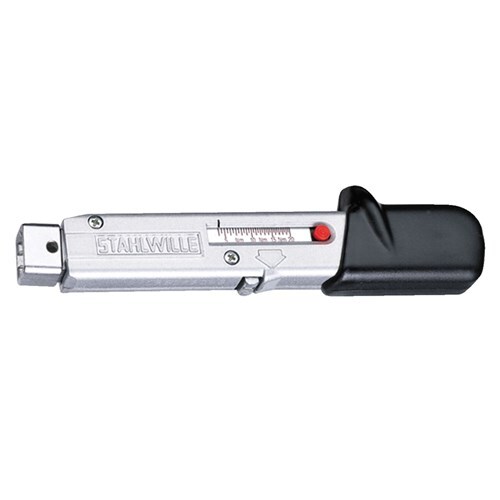

Stahlwille MANOSKOP 730 Quick size 2 is a mechanical torque wrench for 4 to 20 N·m with a 9 x 12mm insert tool holder and a QuickRelease safety lock. It is 179mm long and weighs 315 g.

The wrench has a cut-out with a double stop signal and a robust steel tube that encloses all working parts, and reversible insert tools allow anticlockwise operation. The deviation of indication is ±4%, and it comes with a calibration certificate in accordance with DIN EN ISO 6789-2:2017. Insert tools are ordered separately.

Where this product is used

• Small fasteners and precision assemblies with a specified torque between 4 and 20 N·m
• Bench work where a short, light wrench is easier to handle

Features

• 4 to 20 N·m range with a 0.5 N·m scale division
• Compact: 179mm long and 315 g
• Quick adjuster with cut-out and double stop signal
• 9 x 12mm insert tool holder with QuickRelease safety lock
• Reversible insert tools allow anticlockwise operation

Key specifications

Choosing the right option

If you need a little more range, the Stahlwille 730 Quick torque wrenches, 6 to 650 N·m start at size 5 (6 to 50 N·m), and the Stahlwille 730N clicking torque wrenches, 4 to 650 N·m offer a ±3% deviation of indication. For the same size in inch-pounds see the Stahlwille 730a Quick a/2 inch-pound torque wrench, 30 to 175"·lb.
