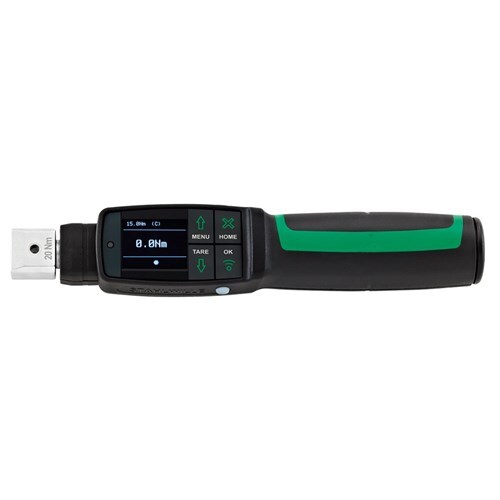

Stahlwille SW714/1 1-10 N·m 714 Electronic Torque and Angle Wrench, 9 x 12 mm holder

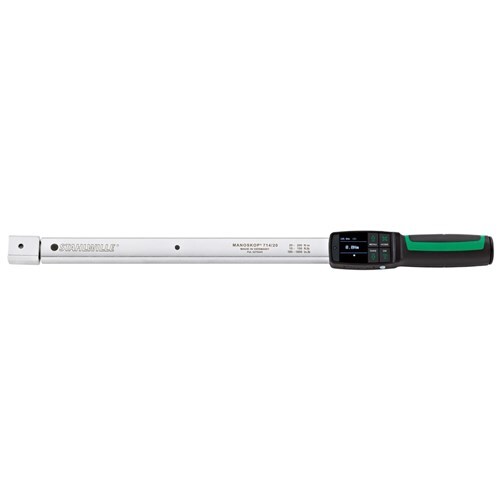

The Stahlwille MANOSKOP 714 is an electromechanical torque and angle-controlled wrench with a mount for interchangeable insert tools and a QuickRelease safety lock. This listing covers seven sizes, from size 1 (1 to 10 N·m) to size 40 (40 to 400 N·m) (manufacturer-stated).

It has four measuring modes (torque, angle, torque backed up by angle, and angle backed up by torque) and three function modes: cut-out, peak and track. Torque and angle are shown together on a high-definition colour display, and angle is measured without a reference arm. Up to 2,500 tightening records are stored, and as many as 200 joints can be programmed in up to 25 preset sequences, each with its own tolerance limits (manufacturer-stated).

Stahlwille states a torque display deviation of ±2% ±1 digit and an angle display deviation of ±1°, with calibration certificates in accordance with DIN EN ISO 6789-2:2017 for torque and VDI/VDE 2648-2 for angle (manufacturer-stated). It is supplied with SensoMaster 4 software and a USB cable. Insert tools are ordered separately.

Where this product is used

• Torque-and-angle tightening of critical joints
• Joints that need an assessed, recorded result, such as series assembly and documented maintenance
• Service work where the wrench is checked and adjusted with a tester or calibration system

Features

• Four measuring modes: torque, angle, torque backed up by angle, angle backed up by torque (manufacturer-stated)
• Three function modes: cut-out, peak and track (manufacturer-stated)
• High-definition colour display with side-mounted indicator lamps (manufacturer-stated)
• Angle-controlled measurement without a reference arm (manufacturer-stated)
• Stores 2,500 tightening records; 200 joints in up to 25 preset sequences (manufacturer-stated)
• Different tolerance limits for each joint, with acoustic and visual assessment (manufacturer-stated)
• Units of N·m, ft·lb and in·lb (manufacturer-stated)
• Micro USB interface; supplied with SensoMaster 4 software (manufacturer-stated)
• Power supply of four AAA batteries (manufacturer-stated)
• Automatic notification of the next calibration date (manufacturer-stated)

Common specifications

Key specifications

Figures are Stahlwille's (manufacturer-stated).

Selecting the right option

Choose the 714 when you need angle as well as torque, in a compact wrench with a wide range of sizes from 1 N·m. If you only need torque with cut-out and recording, the Stahlwille 730D electronic torque wrenches, 10 to 650 N·m is the simpler option. For angle control with a built-in ratchet, see the Stahlwille 713R SENSOTORK electronic torque and angle wrenches, 3 to 400 N·m. Verify the wrench against a tester such as the Stahlwille SENSOTORK 7707 W workshop torque testers, 0.4 to 1100 N·m or the Stahlwille SmartCheck USB torque wrench testers, 1 to 800 N·m.
