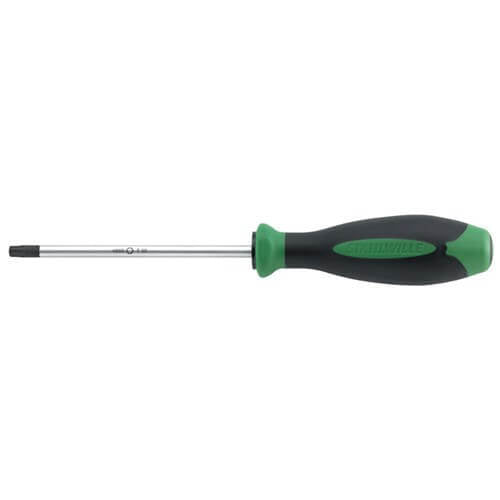

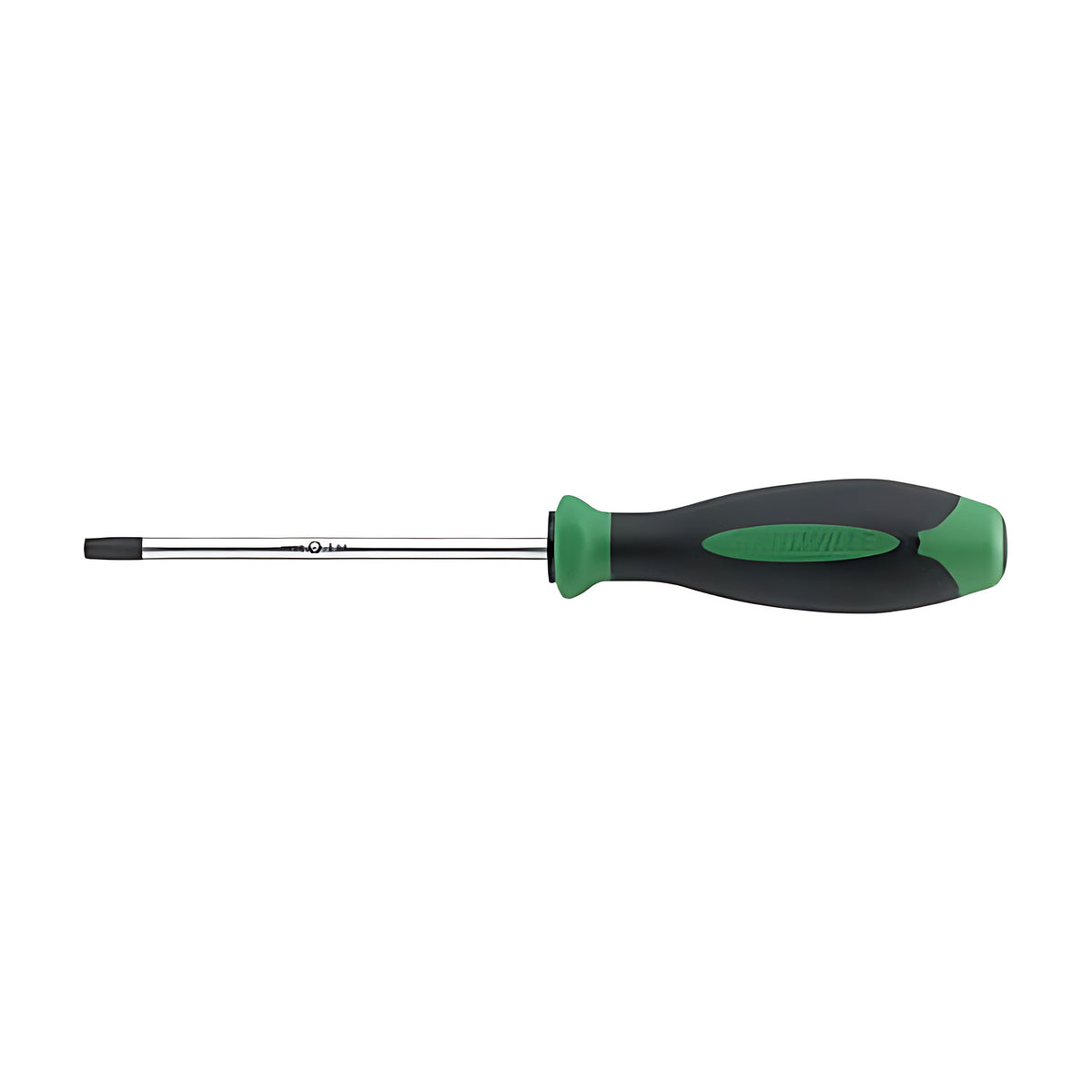

Stahlwille SW4650 T6 Drall+ Torx Screwdriver, 60 mm Blade, 145 mm Overall

The Stahlwille 4650 is a range of Drall+ Torx screwdrivers for internal Torx screws: 12 tip sizes from T6 to T45, with blade lengths from 60 to 130 mm and overall lengths from 145 to 255 mm. The blades are Chrome Alloy Steel, matt chrome plated with a black tip, hardened throughout and permanently anchored in a 3-component handle with a laser-marked head (manufacturer-stated).

The Drall+ handle is non-slip and ergonomically shaped, with an extended grip zone that protects the fingers and a hand stop that keeps the screwdriver from slipping or rolling away (manufacturer-stated). The tip number is the Torx size, so match it to the recess in the screw head. Stahlwille's English product page lists a screw size for each tip, from M2 for the T6 and T7 up to M8 for the T45; each variant page carries the size for that tip. Weights are shown only for the sizes where Stahlwille's datasheet and 2017 brochure agree, and are a dash elsewhere. Stahlwille prints no torque rating and no striking instruction for this range, so use it as a hand screwdriver.

Where this product is used

• Internal Torx screws from T6 to T45
• Electronics, instrument and small machine assembly with the smaller tips
• Vehicle, machinery and equipment maintenance with the larger tips

Features

• 12 Torx tip sizes from T6 to T45 (manufacturer-stated)
• Blade length 60 to 130 mm, overall length 145 to 255 mm (manufacturer-stated)
• Chrome Alloy Steel, matt chrome plated, black tip (manufacturer-stated)
• Blade hardened throughout and anchored in the handle (manufacturer-stated)
• 3-component handle with laser-marked head (manufacturer-stated)
• Non-slip Drall+ handle with extended grip zone and hand stop (manufacturer-stated)

Common specifications

Key specifications

A dash means the figure is not published on this page. Lengths and weights are manufacturer-stated; the blade is L1 and the overall length is L2 in Stahlwille's tables.

Selecting the right option

Pick the tip by the Torx recess in the screw head; Stahlwille lists T20 for an M4 screw and T25 for an M5 (manufacturer-stated). For a longer blade see the 4650L Drall+ long Torx screwdrivers, and for a cross handle the 10769 T-handle Torx screwdrivers. Nine of these tips come together in the 4694/9 Drall+ Torx screwdriver set. For tamper resistant Torx screws see the 4699 Drall+ tamper resistant Torx screwdriver set and the 3K Drall tamper resistant Torx screwdrivers. For the same Torx sizes on a 3/8" drive ratchet see the 49TX Torx screwdriver sockets, 3/8" drive.

Related products

Related Stahlwille products: 4650L Drall+ long Torx screwdrivers, 10769 T-handle Torx screwdrivers, 4694/9 Drall+ Torx screwdriver set, 4699 Drall+ tamper resistant Torx screwdriver set, 49TX Torx screwdriver sockets, 3/8" drive and Drall+ slotted screwdrivers.
