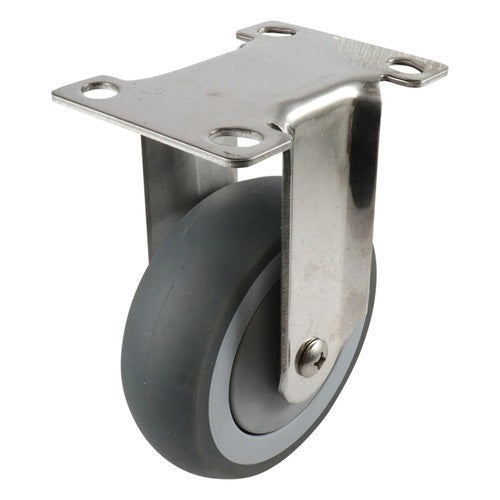

EasyRoll G7 Stainless Fixed Plate Castor, Grey Rubber 75 mm | G73AS62K75

The EasyRoll G7 series fixed plate castor is fitted with a grey rubber wheel and is available in 75 and 100 mm wheel diameters. Load capacity is 80 kg to 100 kg per castor depending on the wheel size. The top plate is 70 x 95 mm with hole centres of 45-52 x 75 mm.

The G7 series is suited to medical trolleys and equipment; hospital beds; and medicine trolleys. It has double headset bearings, stainless steel precision wheel bearings.

Where this product is used

• Medical trolleys and equipment
• Hospital beds
• Medicine trolleys
• Food delivery trolleys
• Display and shopfitting equipment
• Commercial and domestic furniture

Features

• Grey rubber wheel in 75 and 100 mm
• Load capacity 80 kg to 100 kg per castor
• Stainless steel version of the G6 institutional castor
• Double headset bearings for strength and a smooth swivelling action
• Headset seals and wheel guards protect the bearings from dust and foreign matter
• Non-marking rubber and urethane wheels with stainless steel precision bearings

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. EHI rates grey rubber wheels as follows: excellent shock absorbency and floor protection, good load capacity and durability and fair push effort. It suits quality flooring and quiet or clean areas. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
