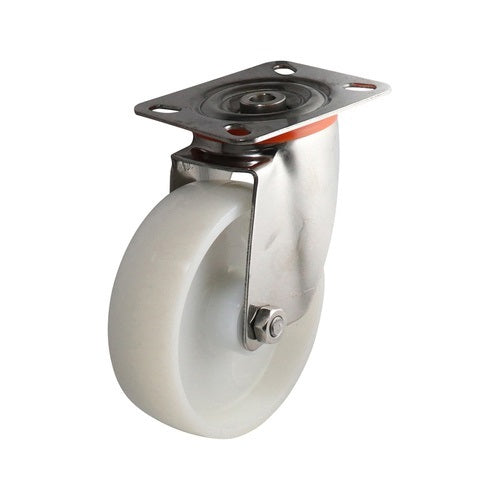

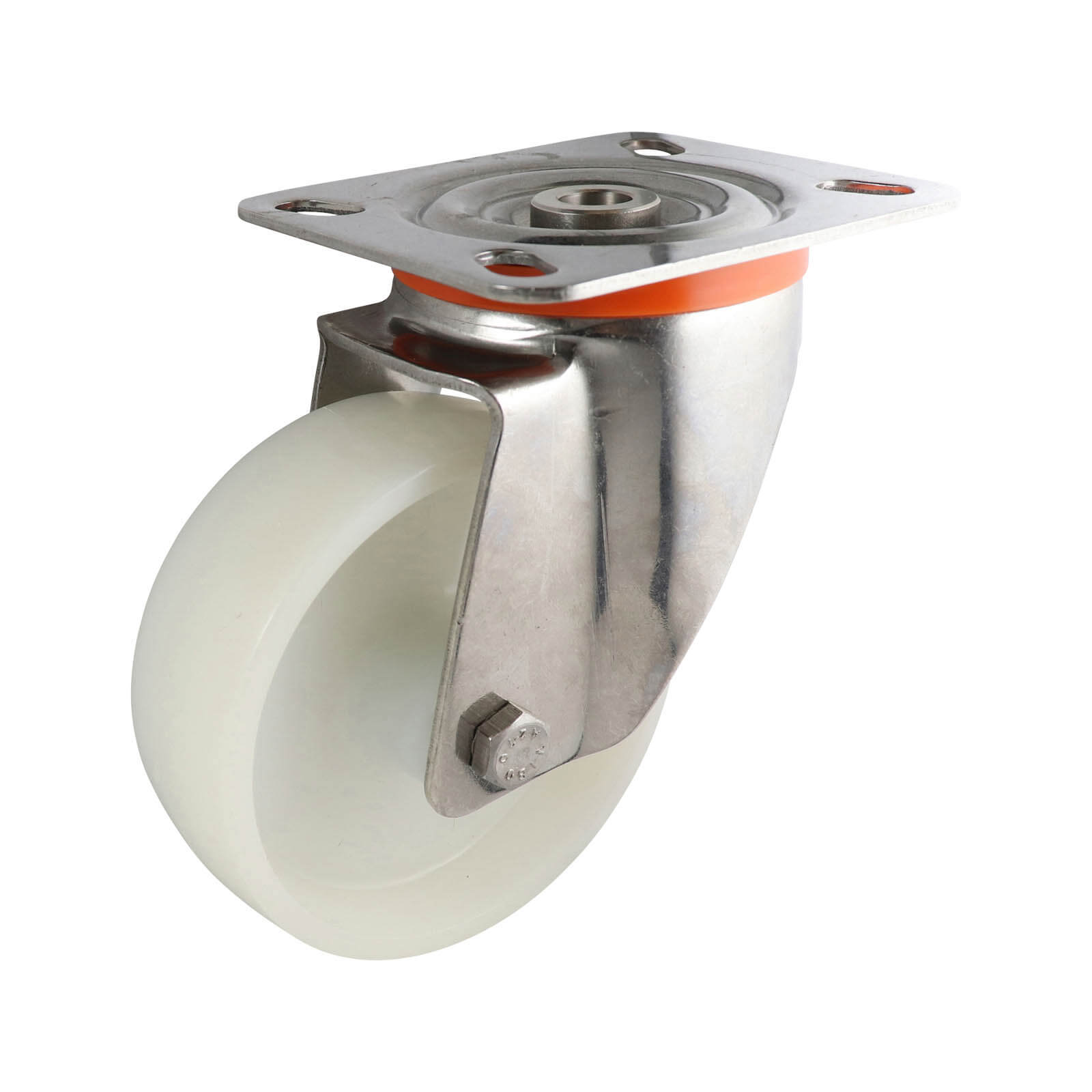

EasyRoll S5 Stainless Swivel Plate Castor, White Nylon 100 mm | S52AS48R100

The EasyRoll S5 series swivel plate castor is fitted with a white nylon wheel and is available in 100 and 125 mm wheel diameters. Load capacity is 220 kg to 230 kg per castor depending on the wheel size. The top plate is 100 x 85 mm with hole centres of 60 x 80 mm.

The S5 series is suited to medical trolleys and equipment; hospital beds; and medicine trolleys. It has stainless steel roller bearings, shielded double headset bearings.

Where this product is used

• Medical trolleys and equipment
• Hospital beds
• Medicine trolleys
• Food delivery trolleys
• Food preparation areas
• Pharmaceutical equipment

Features

• White nylon wheel in 100 and 125 mm
• Load capacity 220 kg to 230 kg per castor
• Developed for medical, institutional and food preparation environments
• Grade 304 stainless steel (manufacturer-stated)
• Stainless steel roller bearings on all wheels
• Shielded double headset bearings for a smooth swivelling action
• Suited to environments exposed to cleaning agents, moisture, steam and caustic or other corrosive chemicals

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. EHI rates nylon wheels as follows: fair shock absorbency and floor protection, excellent load capacity and push effort and good durability. It suits smooth concrete, is strong and economical and may be noisy. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
