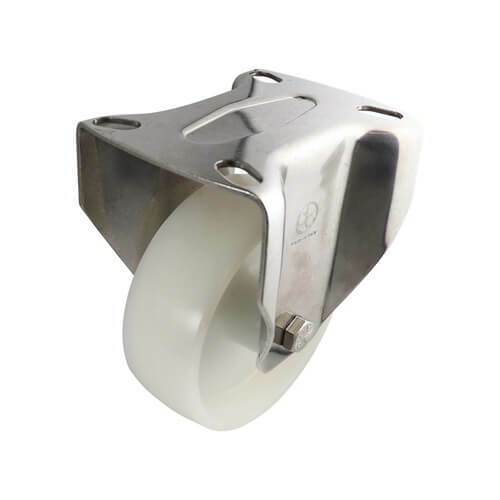

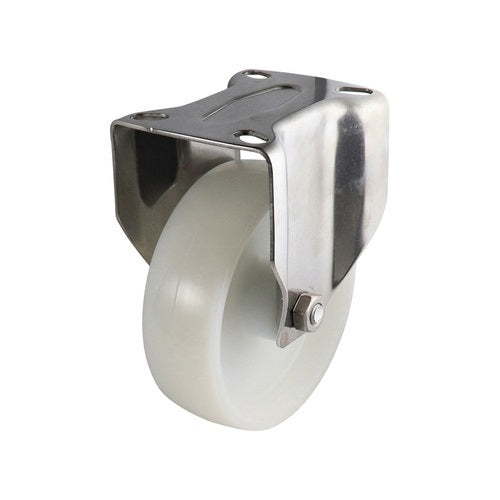

EasyRoll s5 series stainless fixed plate castor S53AS48R125

The EasyRoll S5 series fixed plate castor is fitted with a white nylon wheel and is available in 100 and 125mm wheel diameters. Load capacity is 220kg to 230kg per castor depending on the wheel size. The top plate is 100 x 85mm with hole centres of 60 x 80mm.

The S5 series is suited to medical trolleys and equipment, hospital beds and medicine trolleys. It has stainless steel roller bearings, shielded double headset bearings.

Where this product is used

• Medical trolleys and equipment
• Hospital beds
• Medicine trolleys
• Food delivery trolleys
• Food preparation areas
• Pharmaceutical equipment

Features

• White nylon wheel in 100 and 125mm
• Load capacity 220kg to 230kg per castor
• Developed for medical, institutional and food preparation environments
• Grade 304 stainless steel
• Stainless steel roller bearings on all wheels
• Shielded double headset bearings for a smooth swivelling action
• Suited to environments exposed to cleaning agents, moisture, steam and caustic or other corrosive chemicals

Key specifications

Choosing the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Nylon wheels: fair shock absorbency and floor protection, excellent load capacity and push effort and good durability. It suits smooth concrete, is strong and economical and may be noisy. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
