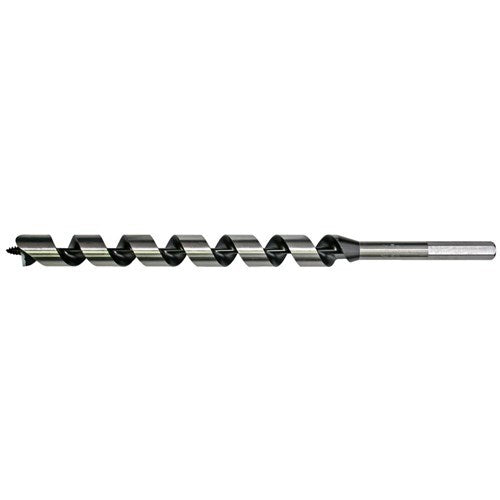

Star-M STM4S011 11 mm x 250 mm 4S Series Auger Drill Bit
Available
The Star-M 4S Series is a range of ten standard-length power drill auger bits for boring deep holes in softwood. Diameters run from 10 mm to 29 mm, with overall lengths of 250, 270, 290 or 330 mm depending on size (manufacturer-stated).
The lengths in this range match the manufacturer's No.4 Power Drill Auger Bit table, so the spiral length, shank size and maximum speed shown for each size are taken from that table. Star-M states that the bit is made from high carbon steel, is used with an electric power drill and has a burr-free lead screw for quick, on-target starts and smooth cutting (manufacturer-stated).
Where this product is used
- Boring deep through-holes in softwood. (manufacturer-stated)
- Drilling with an electric power drill, keeping the speed below 3,000 rpm up to 19 mm and below 1,500 rpm from 22 mm. (manufacturer-stated)
Features
- Burr-free lead screw for quick, on-target starts and smooth cutting (manufacturer-stated)
- Made from high carbon steel (manufacturer-stated)
- Hexagon shank on every size, in 7 mm, 10 mm or 12 mm depending on diameter (manufacturer-stated)
- Maximum drill speed of 3,000 rpm up to 19 mm and 1,500 rpm from 22 mm (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Series | 4S Series standard length |
| Suitable for | Softwood |
| Material | High carbon steel |
| Recommended tool | Electric power drill |
| Diameters | 10 mm to 29 mm in ten sizes |
Key specifications
| Part number | Diameter | Imperial size | Overall length | Spiral length | Shank (hexagon) | Maximum speed |
|---|---|---|---|---|---|---|
| STM4S010 | 10 mm | 3/8 in | 250 mm | 190 mm | 7 mm | Less than 3,000 rpm |
| STM4S011 | 11 mm | 7/16 in | 250 mm | 190 mm | 7 mm | Less than 3,000 rpm |
| STM4S013 | 13 mm | 1/2 in | 270 mm | 195 mm | 10 mm | Less than 3,000 rpm |
| STM4S014 | 14 mm | 9/16 in | 290 mm | 210 mm | 10 mm | Less than 3,000 rpm |
| STM4S016 | 16 mm | 5/8 in | 290 mm | 210 mm | 10 mm | Less than 3,000 rpm |
| STM4S018 | 18 mm | 11/16 in | 330 mm | 240 mm | 10 mm | Less than 3,000 rpm |
| STM4S019 | 19 mm | 3/4 in | 330 mm | 240 mm | 10 mm | Less than 3,000 rpm |
| STM4S022 | 22 mm | 7/8 in | 330 mm | 240 mm | 12 mm | Less than 1,500 rpm |
| STM4S025 | 25 mm | 1 in | 330 mm | Not published | Not published | Less than 1,500 rpm |
| STM4S029 | 29 mm | 1-1/8 in | 330 mm | 240 mm | 12 mm | Less than 1,500 rpm |
Spiral length, shank and maximum speed are the manufacturer's No.4 table figures for each size (manufacturer-stated). Spiral length and shank are not shown for STM4S025 because the available figures for that size differ.
Selecting the right option
Choose by hole diameter first. The 10 and 11 mm bits are 250 mm long with a 7 mm shank; 13 to 19 mm bits have a 10 mm shank; 22, 25 and 29 mm bits are 330 mm long and need the slower speed limit of 1,500 rpm (manufacturer-stated). If the timber is thin and you do not need the reach, the 6 Series short-length auger drill bits are shorter; for hardwood see the 8M Series medium-length hardwood auger drill bits or 8L Series long hardwood auger drill bits, and for holes deeper than 240 mm see the 4L Series extended-length auger drill bits.
Related products
Related Star-M augers: 6 Series short-length auger drill bits, 8M Series medium-length hardwood auger drill bits, 8L Series long hardwood auger drill bits and 4L Series extended-length auger drill bits.
