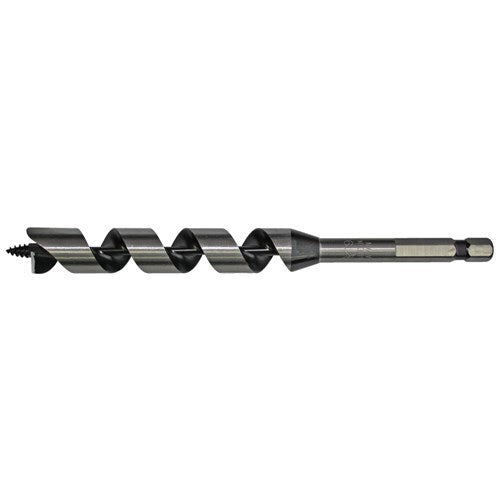

Star-M STM6010 10 mm x 190 mm 6 Series Auger Drill Bit
Available

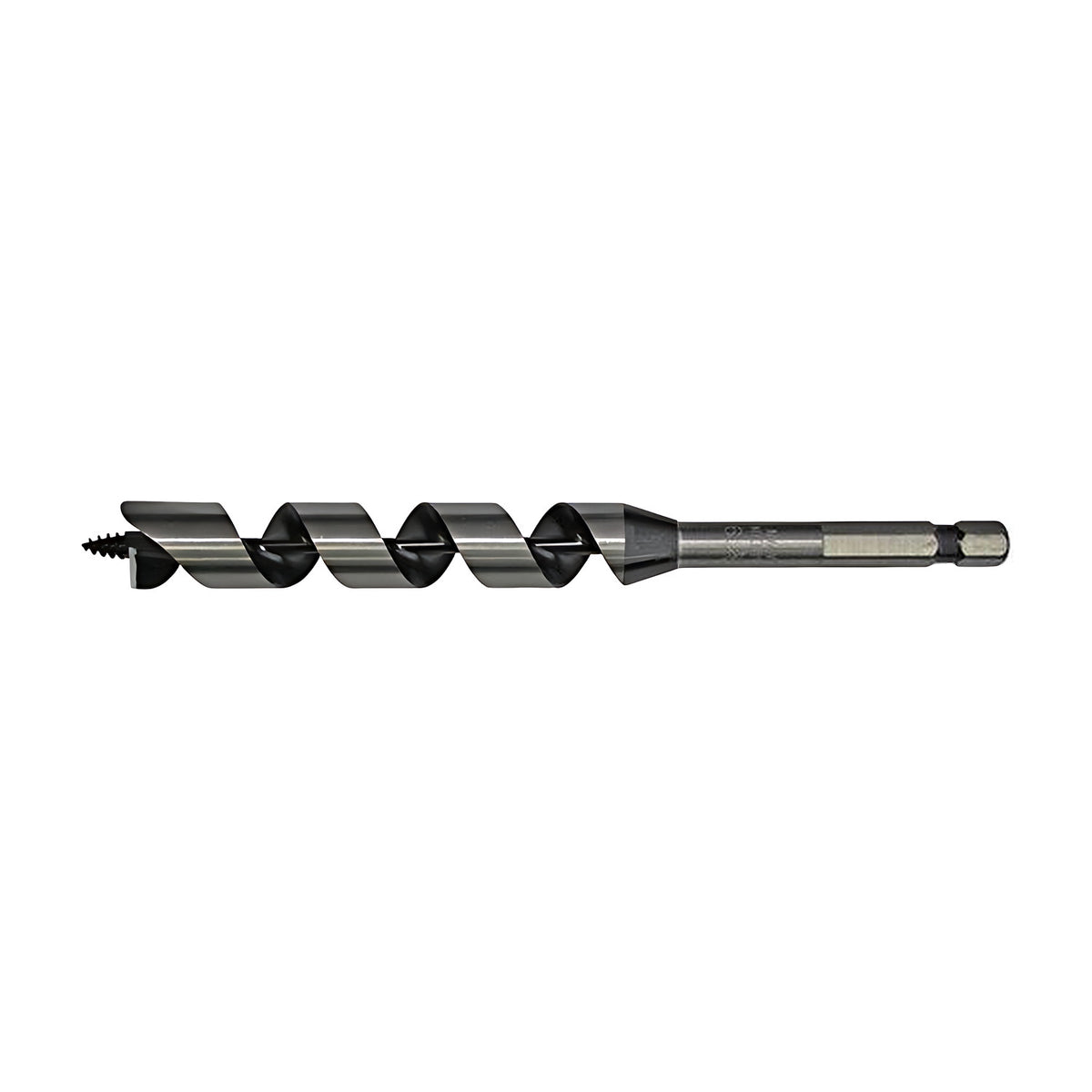

The Star-M 6 Series is a range of ten short-length combination auger bits for drilling holes that pass completely through timber. Diameters run from 10 mm to 27 mm, with overall lengths of 190, 200 or 210 mm depending on size (manufacturer-stated).
The lengths in this range match the manufacturer's No.6 Combination Auger Bit table, so the spiral length, shank size and maximum speed shown for each size are taken from that table. Star-M states that the bit is made from high carbon steel and has a burr-free lead screw for quick, on-target starts and smooth cutting (manufacturer-stated). The 6 Series is shorter overall than the 4S Series at the same diameter.
Where this product is used
- Drilling holes that pass completely through timber. (manufacturer-stated)
- Use with an electric drill or a cordless drill over 14.4 V; sizes under 13 mm are also listed for a quick change impact driver over 14.4 V. (manufacturer-stated)
Features
- Burr-free lead screw for quick, on-target starts and smooth cutting (manufacturer-stated)
- Made from high carbon steel (manufacturer-stated)
- Hexagon shank: 6.35 mm up to 13 mm, 10 mm from 14 mm (manufacturer-stated)
- Maximum drill speed of 3,000 rpm up to 19 mm and 1,500 rpm from 21 mm (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Series | 6 Series short length |
| Suitable for | Softwood |
| Material | High carbon steel |
| Recommended tools | Electric drill, cordless drill over 14.4 V |
| Diameters | 10 mm to 27 mm in ten sizes |
Key specifications
| Part number | Diameter | Imperial size | Overall length | Spiral length | Shank (hexagon) | Maximum speed |
|---|---|---|---|---|---|---|
| STM6010 | 10 mm | 3/8 in | 190 mm | 120 mm | 6.35 mm | Less than 3,000 rpm |
| STM6011 | 11 mm | 7/16 in | 190 mm | 120 mm | 6.35 mm | Less than 3,000 rpm |
| STM6013 | 13 mm | 1/2 in | 190 mm | 120 mm | 6.35 mm | Less than 3,000 rpm |
| STM6014 | 14 mm | 9/16 in | 200 mm | 130 mm | 10 mm | Less than 3,000 rpm |
| STM6016 | 16 mm | 5/8 in | 200 mm | 130 mm | 10 mm | Less than 3,000 rpm |
| STM6018 | 18 mm | 11/16 in | 200 mm | 130 mm | 10 mm | Less than 3,000 rpm |
| STM6019 | 19 mm | 3/4 in | 200 mm | 130 mm | 10 mm | Less than 3,000 rpm |
| STM6021 | 21 mm | 13/16 in | 210 mm | 140 mm | 10 mm | Less than 1,500 rpm |
| STM6022 | 22 mm | 7/8 in | 210 mm | 140 mm | 10 mm | Less than 1,500 rpm |
| STM6027 | 27 mm | 1-1/16 in | 210 mm | 140 mm | 10 mm | Less than 1,500 rpm |
Spiral length, shank and maximum speed are the manufacturer's No.6 table figures for each size (manufacturer-stated).
Selecting the right option
Choose by hole diameter. The 10, 11 and 13 mm bits have a 6.35 mm shank, and the 10 and 11 mm sizes are also listed for a quick change impact driver (over 14.4 V); from 14 mm the shank is 10 mm. The 21, 22 and 27 mm bits are 210 mm long and need the lower 1,500 rpm speed limit (manufacturer-stated). For more reach in softwood see the 4S Series standard-length auger drill bits or the 4L Series extended-length auger drill bits; for hardwood see the 8M Series medium-length hardwood auger drill bits or 8L Series long hardwood auger drill bits.
