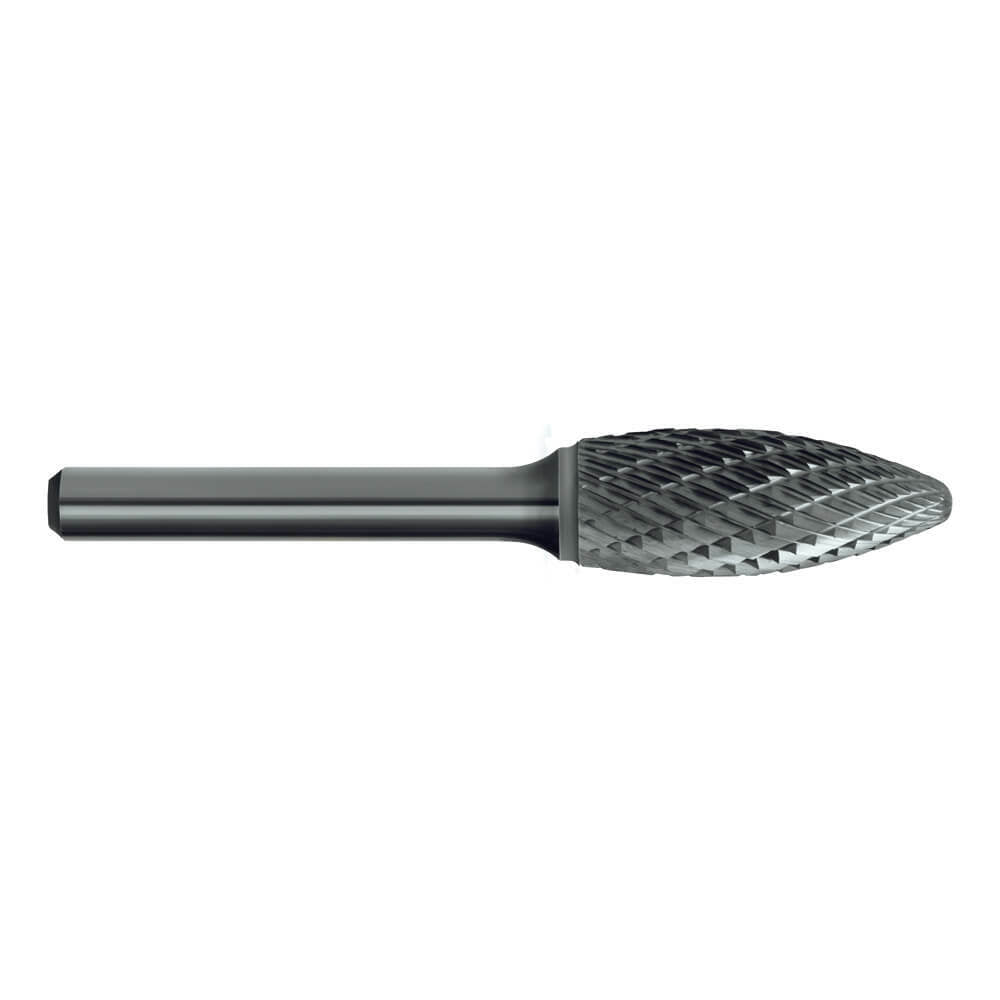

Sutton B306SH200 8 x 19 x 6mm Shank Carbide Burr Flame Shape
Sutton B306SH500 12.7 x 31.7 x 6mm Shank Carbide Burr Flame Shape
Sutton B306SH600 15.9 x 36.5 x 6mm Shank Carbide Burr Flame Shape
Sutton B306 Carbide Burr - Flame Shape - Double Cut1
Sutton B306 Carbide Burr - Flame Shape - Double Cut2
Sutton B306SH200 8 x 19 x 6mm Shank Carbide Burr Flame Shape
Sutton B306SH500 12.7 x 31.7 x 6mm Shank Carbide Burr Flame Shape
Sutton B306SH600 15.9 x 36.5 x 6mm Shank Carbide Burr Flame Shape

Sutton B306 Carbide Burr - Flame Shape - Double Cut

Sutton B306 Carbide Burr - Flame Shape - Double Cut

SKU: A0002585

Type: Burr

$64.24
$64.24
Inc. GST
Buy It Now

Available

The Sutton B306 Carbide Burr - Flame Shape - Double Cut by Sutton Tools is made from VHM with a bright finish. It features a 12.7 mm diameter and is designed for rapid material removal in soft materials such as aluminium, brass, and copper.

Resources

File icon
Sutton-Tools-Carbide-Burs-Catalogue

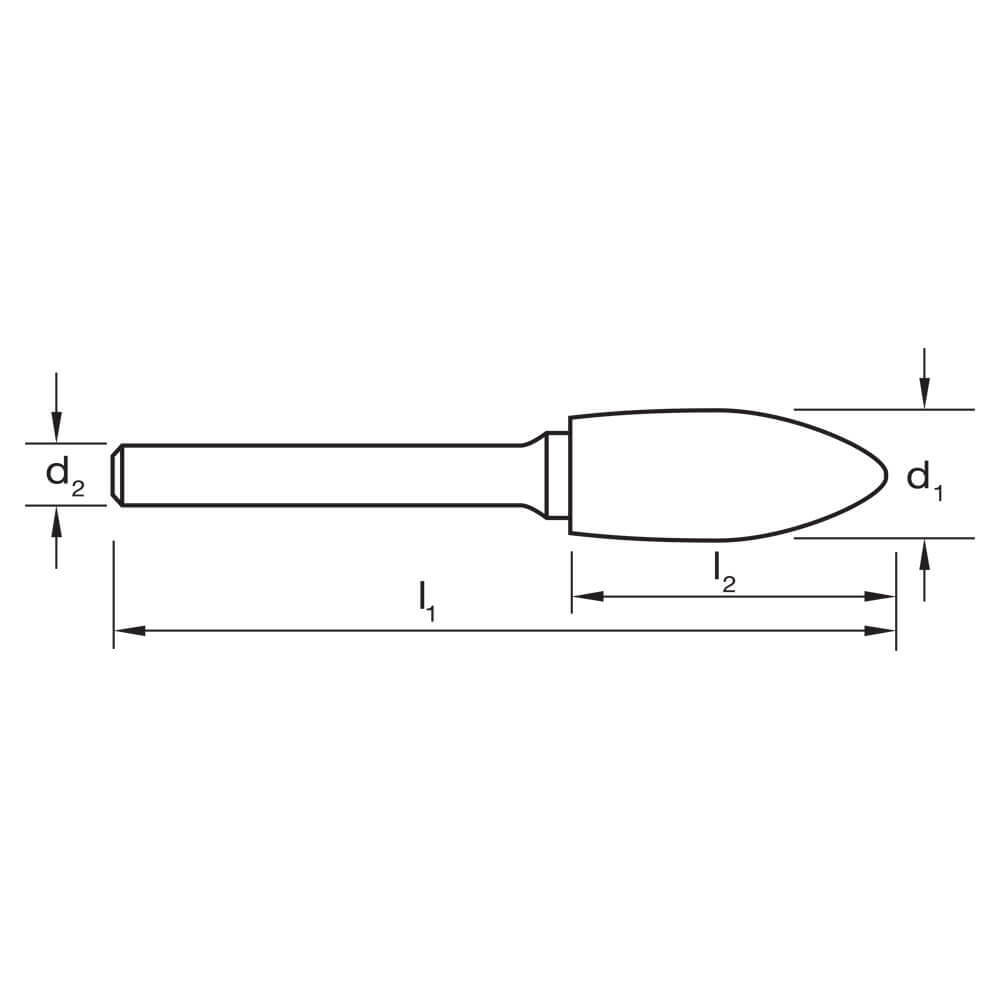

Dimensions

  • d1 (mm): 8
  • d2 (mm): 6
  • l1 (mm): 63.5
  • l2 (mm): 19
  • Shank (mm): 6

Features

  • Flame Shape Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Flame Shape
  • Application: Steel

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Stainless Steel - Austenitic: Age Hardened
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic
  • Cast Iron, Malleable – Ferritic
  • Cast Iron, Malleable - Pearlitic

Dimensions

  • d1 (mm): 8
  • d2 (mm): 6
  • l1 (mm): 63.5
  • l2 (mm): 19
  • Shank (mm): 6

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Flame Shape
  • Application: Steel

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Stainless Steel - Austenitic: Age Hardened
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic
  • Cast Iron, Malleable – Ferritic
  • Cast Iron, Malleable - Pearlitic

Features

  • Flame Shape Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts
