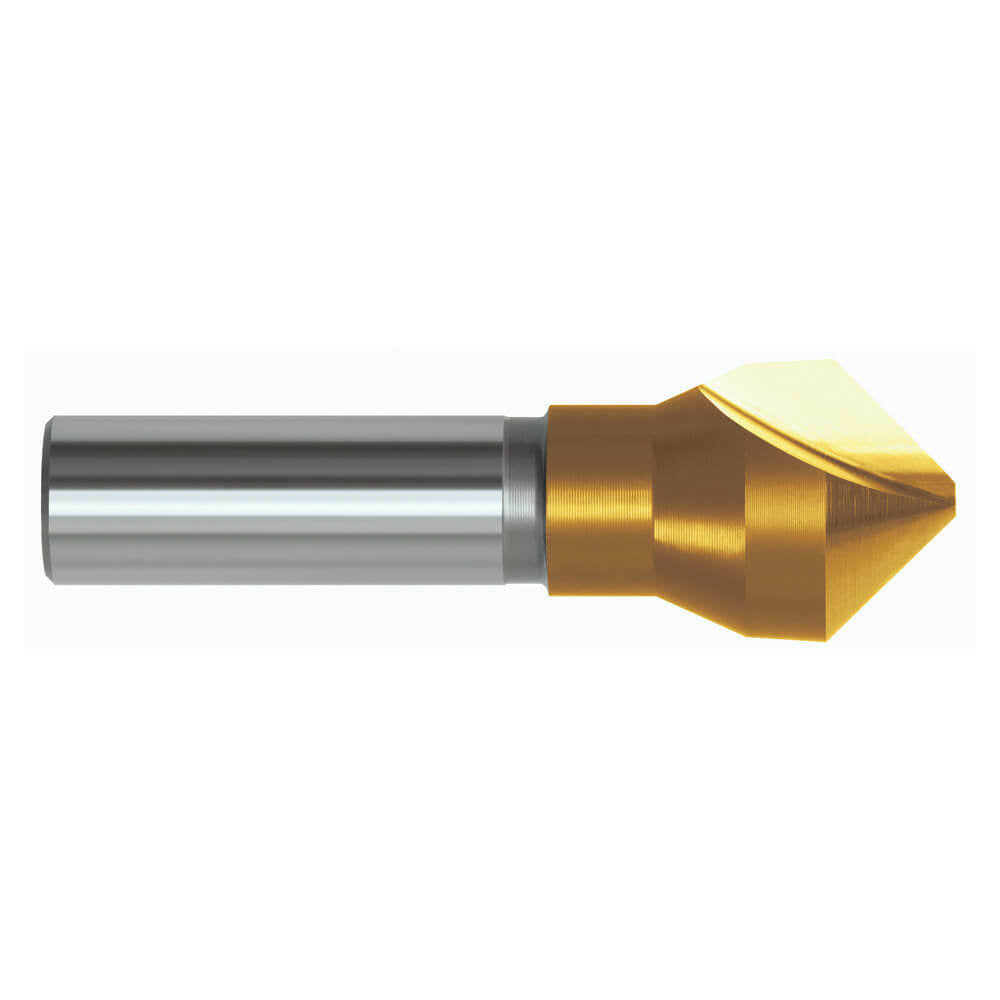

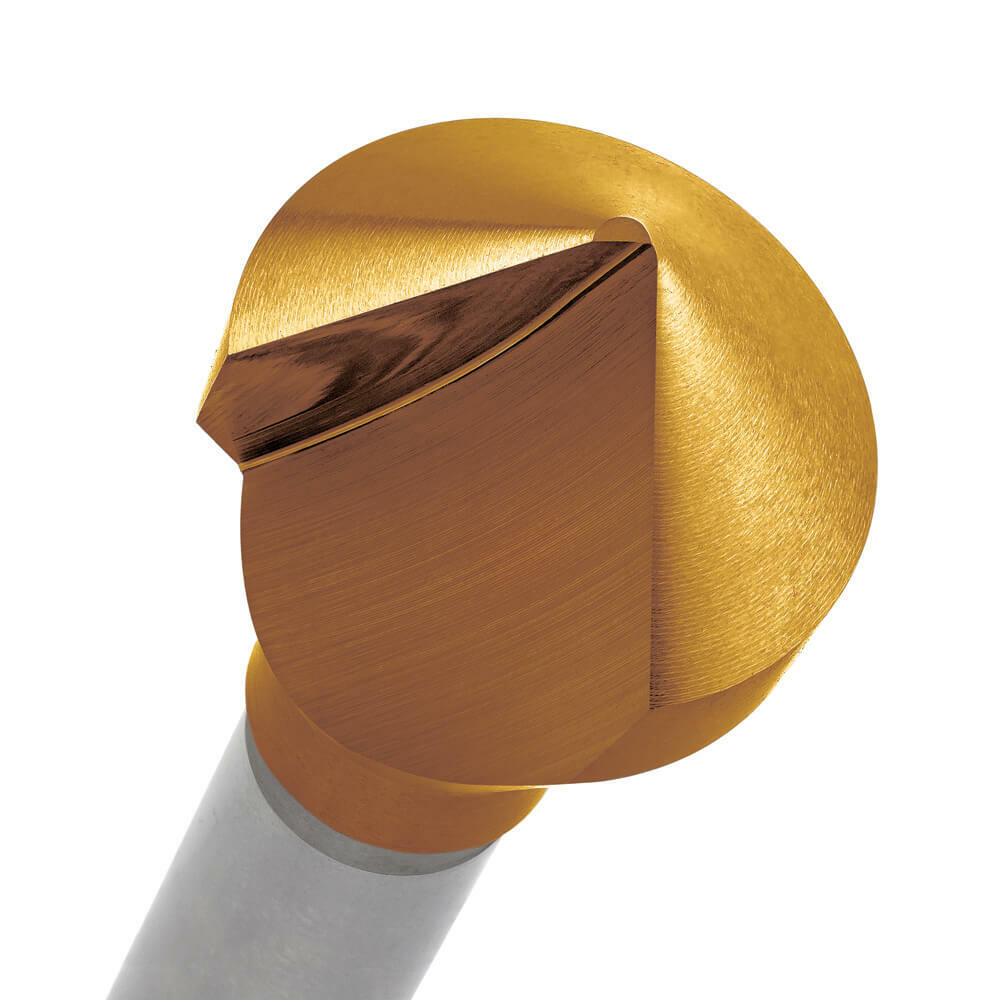

Sutton 1-10mm 90° Single Flute Countersink C104 - HSS TiN - 43mm OAL

The Sutton C104 is a 90° single flute countersink in HSS, TiN coated. It is a countersinking tool for use in portable drills or drilling machines, on most materials including plastics, non-ferrous and ferrous metals. This range has 3 sizes covering 1-10, 2-14 and 2-20 mm.

The TiN (titanium nitride) coating is designed to reduce friction and extend tool life. Shank sizes are 6.35 mm (1/4 in) and 12.7 mm (1/2 in).

Where this product is used

• Countersinking screw holes in steel, non-ferrous metals and plastics.
• Use in a portable drill or a drilling machine.

Sizes and item numbers

Every size in the range, with its Sutton item number.

Using the tool

• Match the countersink to the screw head so the head sits flush with the surface.
• Use a low to moderate speed, and go lower on harder materials and larger diameters.
• Use cutting fluid when working steel or stainless steel.
• Hold the work firmly and keep the tool steady to reduce chatter.

Key specifications
