Sutton 4-10mm 90° Three Flute Countersink C106 - HSS TiN - 43mm OAL
Available

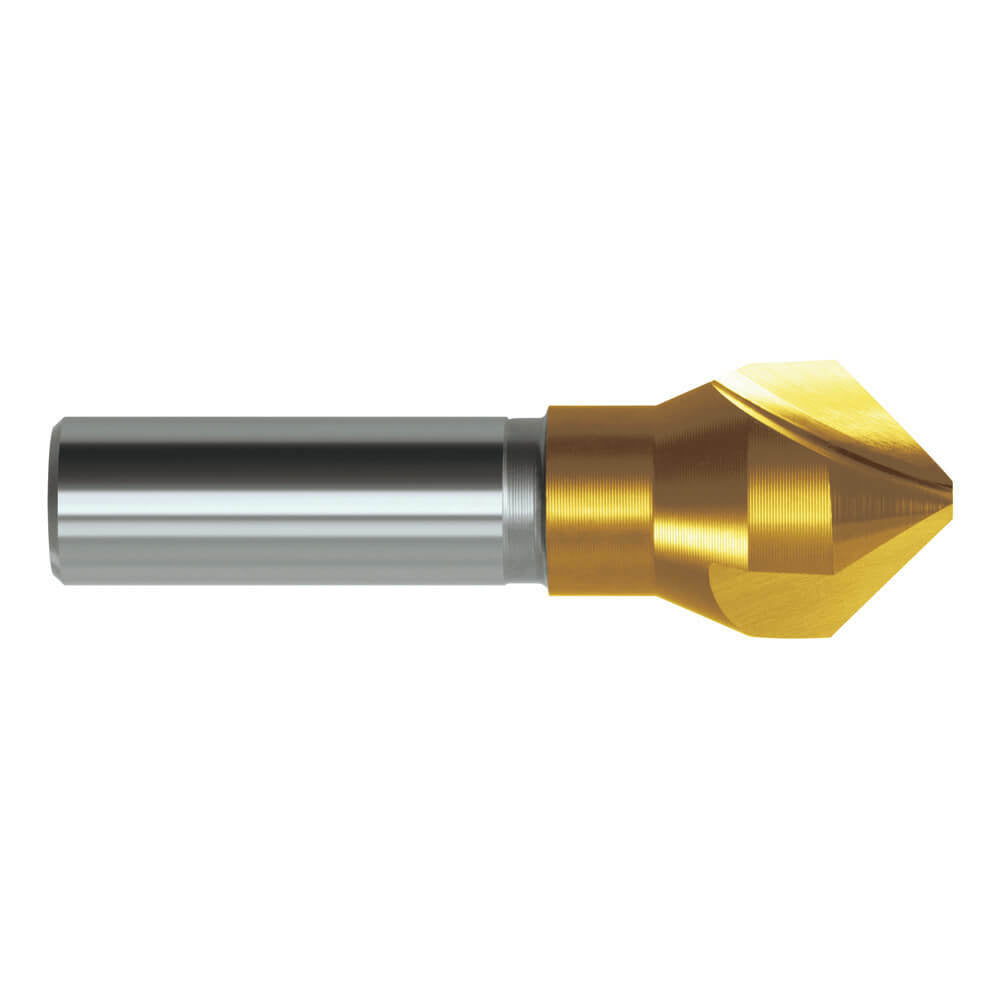

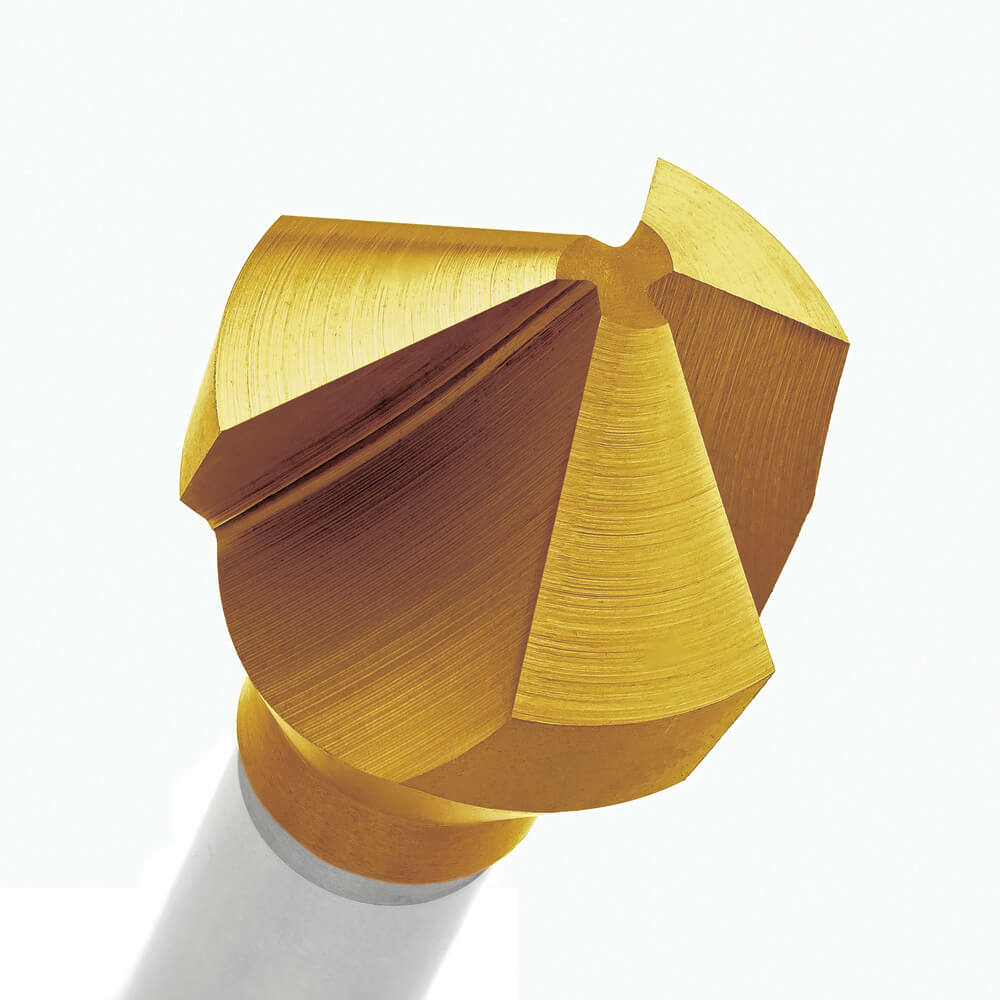

The Sutton C106 is a 90° three flute countersink in HSS, TiN coated. It is a countersinking tool for machine use, on most materials including plastics, non-ferrous and ferrous metals. This range has 5 sizes covering 4-10, 4-14, 5-20, 6-28 and 6-37 mm.
The TiN (titanium nitride) coating is designed to reduce friction and extend tool life. Shank sizes are 6.35 mm (1/4 in) and 12.7 mm (1/2 in).
Where this product is used
- Countersinking and chamfering screw holes in steel, non-ferrous metals and plastics.
- Machine use, in a drilling machine or milling machine.
Sizes and item numbers
Every size in the range, with its Sutton item number.

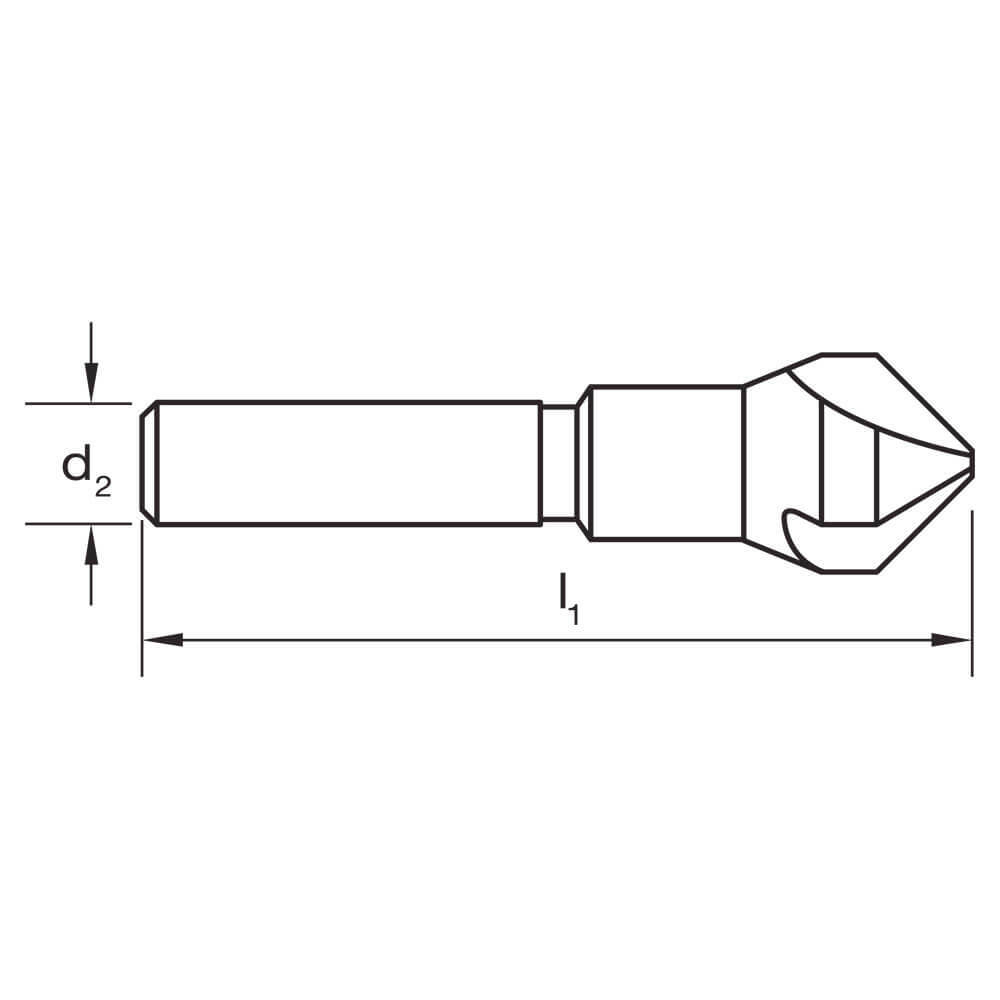

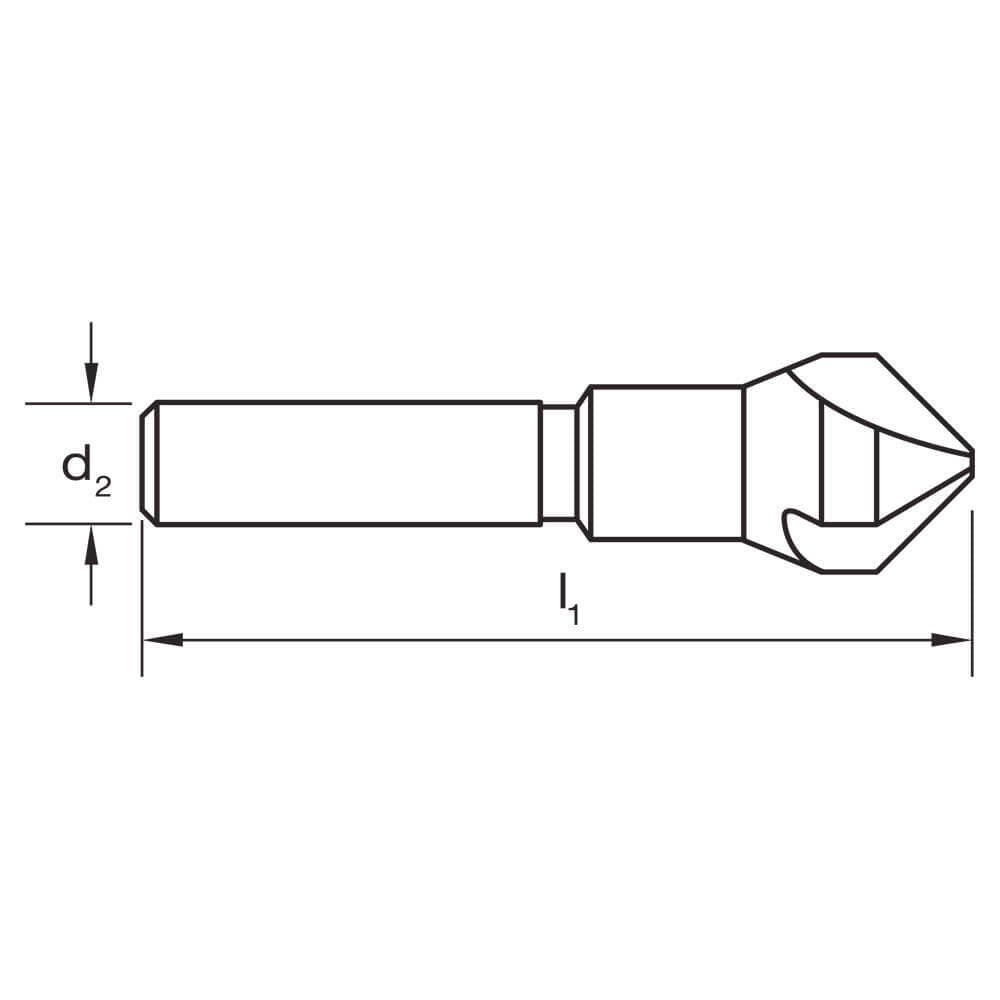

| Item no. | Range (mm) | Overall length (mm) | Shank d2 (mm) |
|---|---|---|---|
| C106 0901 | 4-10 | 43 | 6.35 |
| C106 0902 | 4-14 | 48 | 6.35 |
| C106 0903 | 5-20 | 67 | 12.7 |
| C106 0904 | 6-28 | 72 | 12.7 |
| C106 0905 | 6-37 | 89 | 12.7 |
Using the tool
- Match the countersink to the screw head so the head sits flush with the surface.
- Use a low to moderate speed, and go lower on harder materials and larger diameters.
- Use cutting fluid when working steel or stainless steel.
- Hold the work firmly and keep the tool steady to reduce chatter.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | C106 (90° three flute countersink) |
| Material | HSS |
| Finish | TiN |
| Point angle | 90° |
| Sizes in this range | 5 sizes, 4 to 37 mm |
Related products
Compare other Sutton countersinks: C105 bright finish, C106STF1T 4 piece set, C101 deburring countersink cross hole, C103 single flute countersink and C201 HSS three flute countersinks 8.3 to 25 mm. Browse all countersink bit sets and deburring tools.
