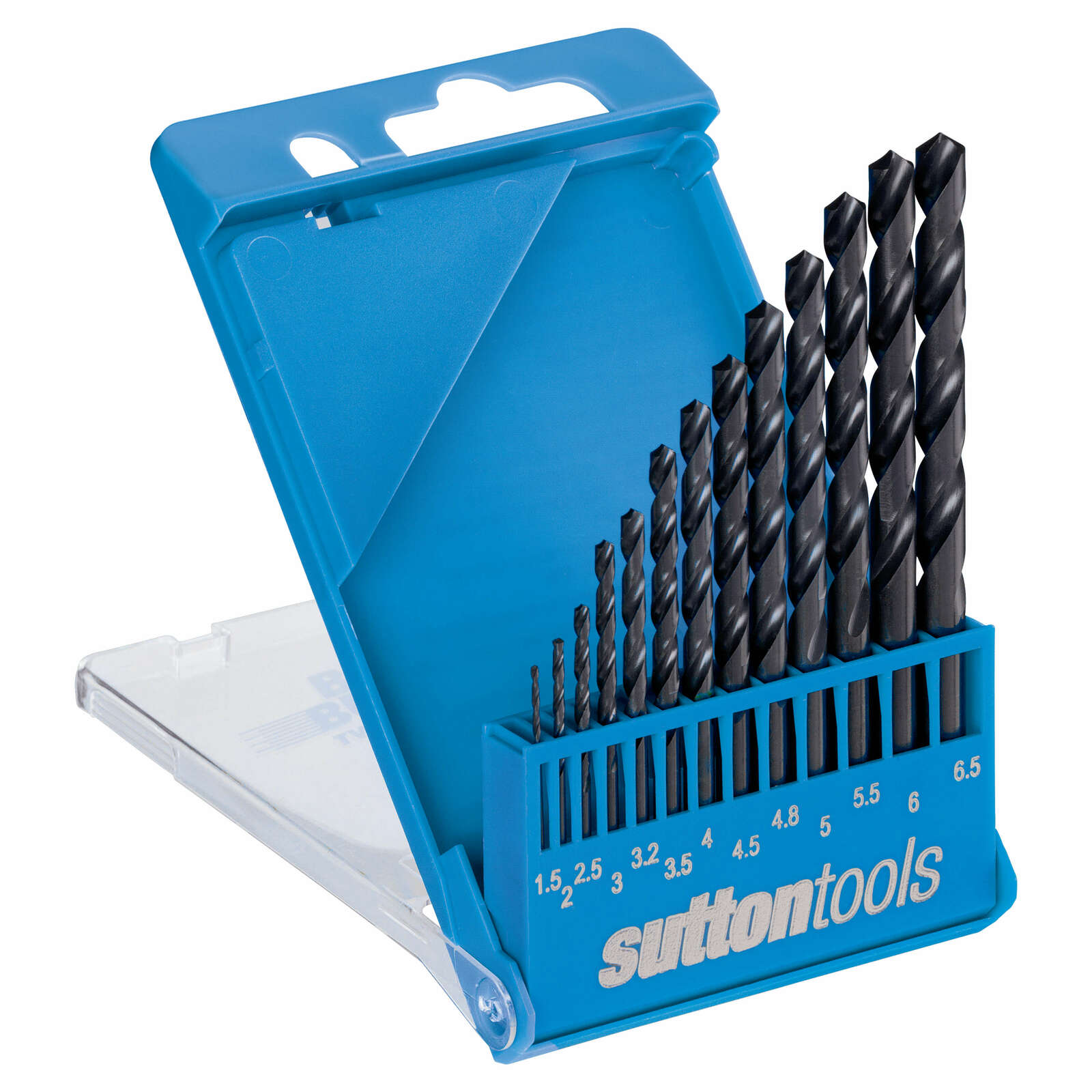

Sutton D102SM1 13 piece Blue Bullet Metric Jobber Drill Set HSS1

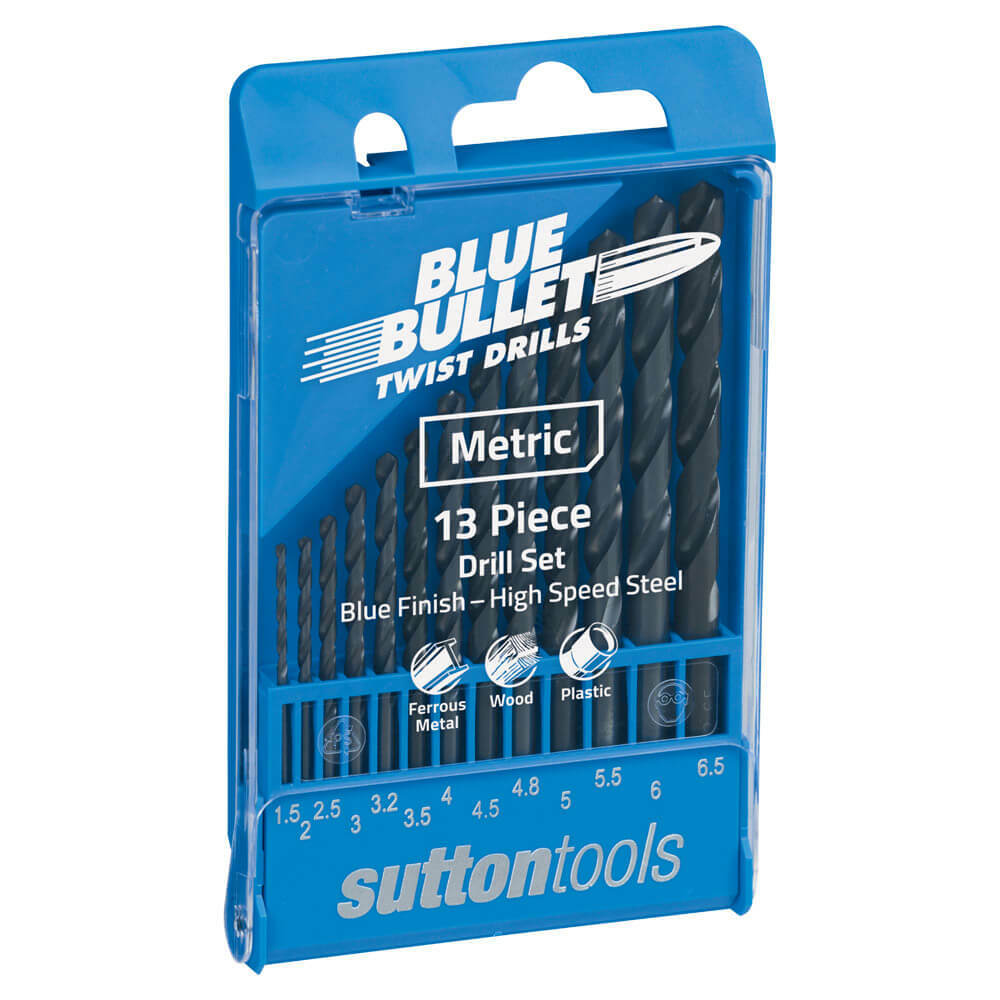

Sutton D102SM1 13 piece Blue Bullet Metric Jobber Drill Set HSS2

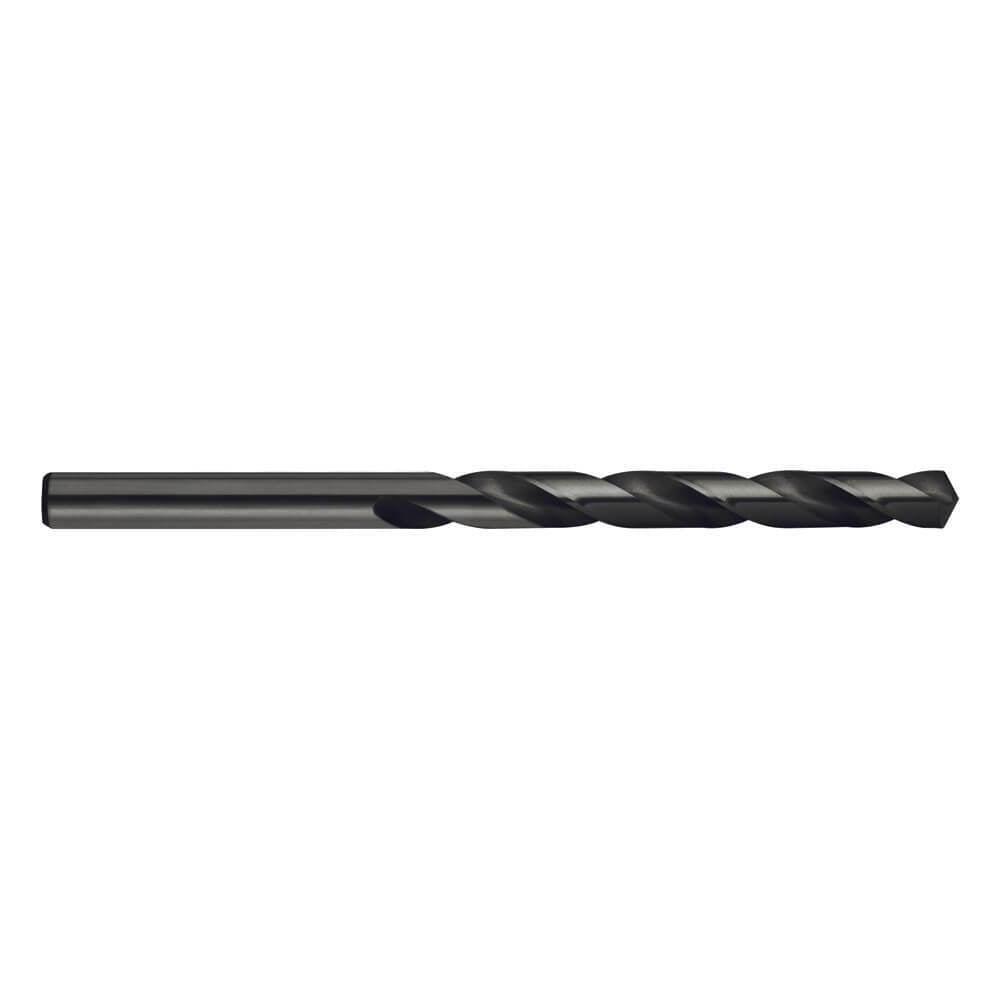

Sutton D102SM1 13 piece Blue Bullet Metric Jobber Drill Set HSS3

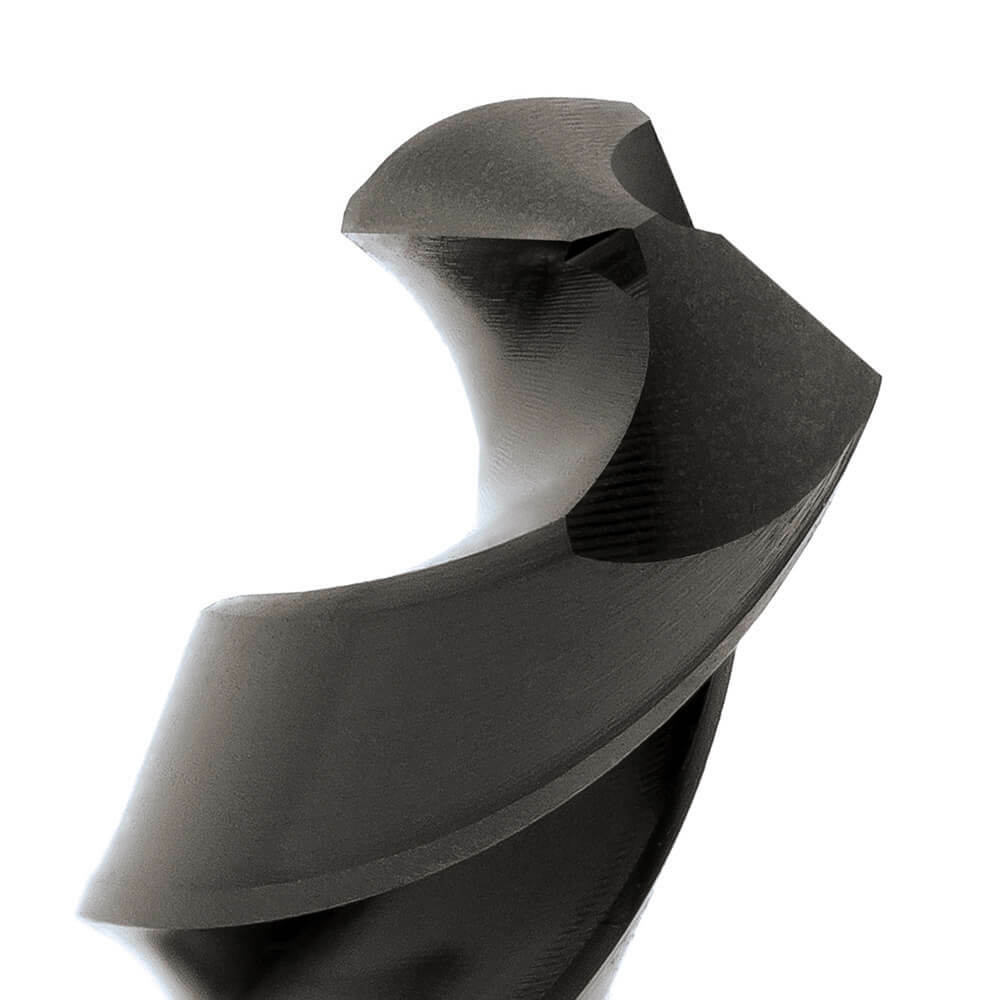

Sutton D102SM1 13 piece Blue Bullet Metric Jobber Drill Set HSS4

Description +

Sutton Tools Blue Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling ferrous metals

The blue finish reduces chip build up on the cutting edge and is a better choice when drilling ferrous materials

Specifications +

Range (mm): 1.5-6.5 x 0.5, 3.2, 4.8
Pack Quantity: 13
Designation: N
Material: High Speed Steel
Finish: Blue
Helix Angle: R30
Point Angle: 118°
Standard: DIN 338

Application +

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
Optimal for Steel - High alloy, cast & tool- 200 HB

Features & Benefits +

118° standard point for general purpose applications
Precision engineered parallel shank for accurate hole size
Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
Blue surface finish for ferrous applications
The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton D102SM1 13 piece Blue Bullet Metric Jobber Drill Set HSS

SKU: A0003271

Type: Jobber Drill Set

$59.10

Inc. GST

Buy It Now

Available

The Sutton D102SM1 Blue Bullet Metric Jobber Drill Set comprises 13 pieces, suitable for machine and hand-held drilling of ferrous metals. Constructed from M2 High Speed Steel, it provides strength, heat and wear resistance. Its blue finish minimises chip build-up during use.
