Description
Description
Sutton Tools Blue Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling ferrous metals
The blue finish reduces chip build up on the cutting edge and is a better choice when drilling ferrous materials
Specifications
Specifications
- Range (mm): 1.0-5.9 x 0.1
- Pack Quantity: 50
- Designation: N
- Material: High Speed Steel
- Finish: Blue
- Helix Angle: R30
- Point Angle: 118°
- Standard: DIN 338
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - High alloy, cast & tool- 200 HB
Features & Benefits
Features & Benefits

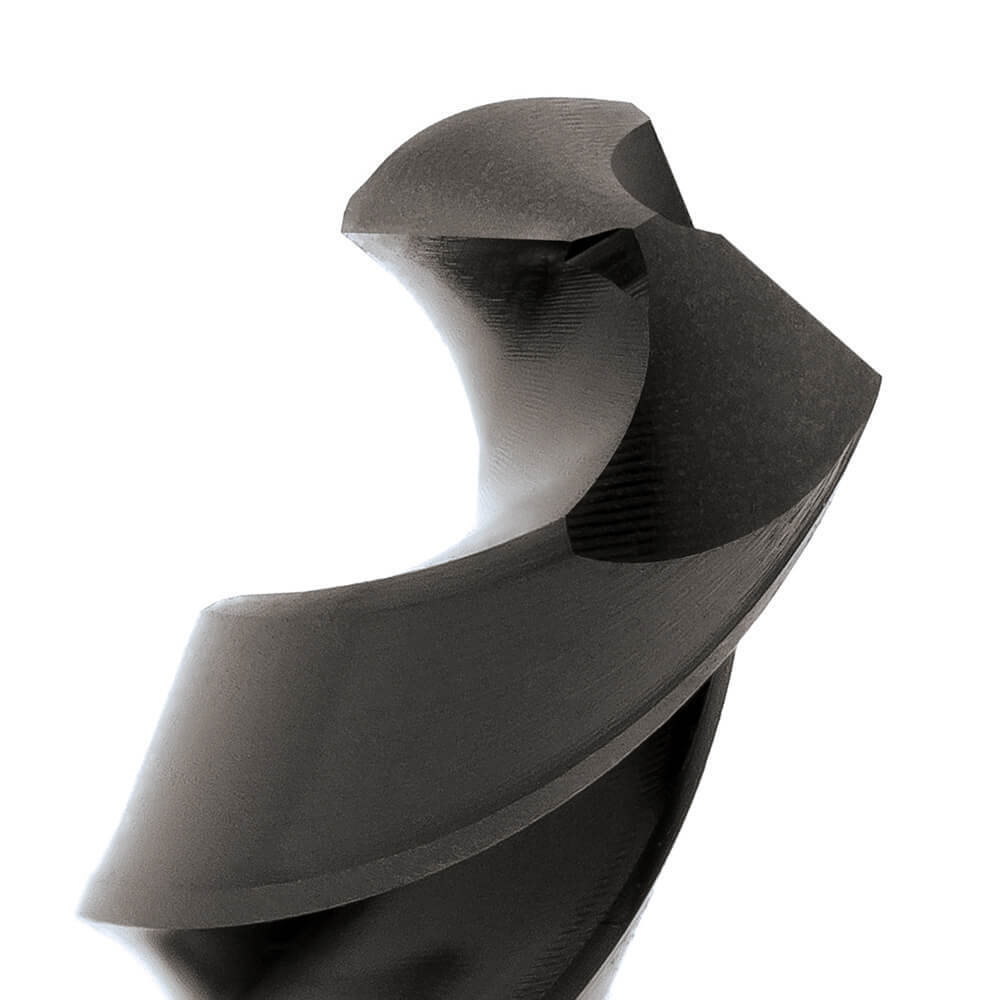

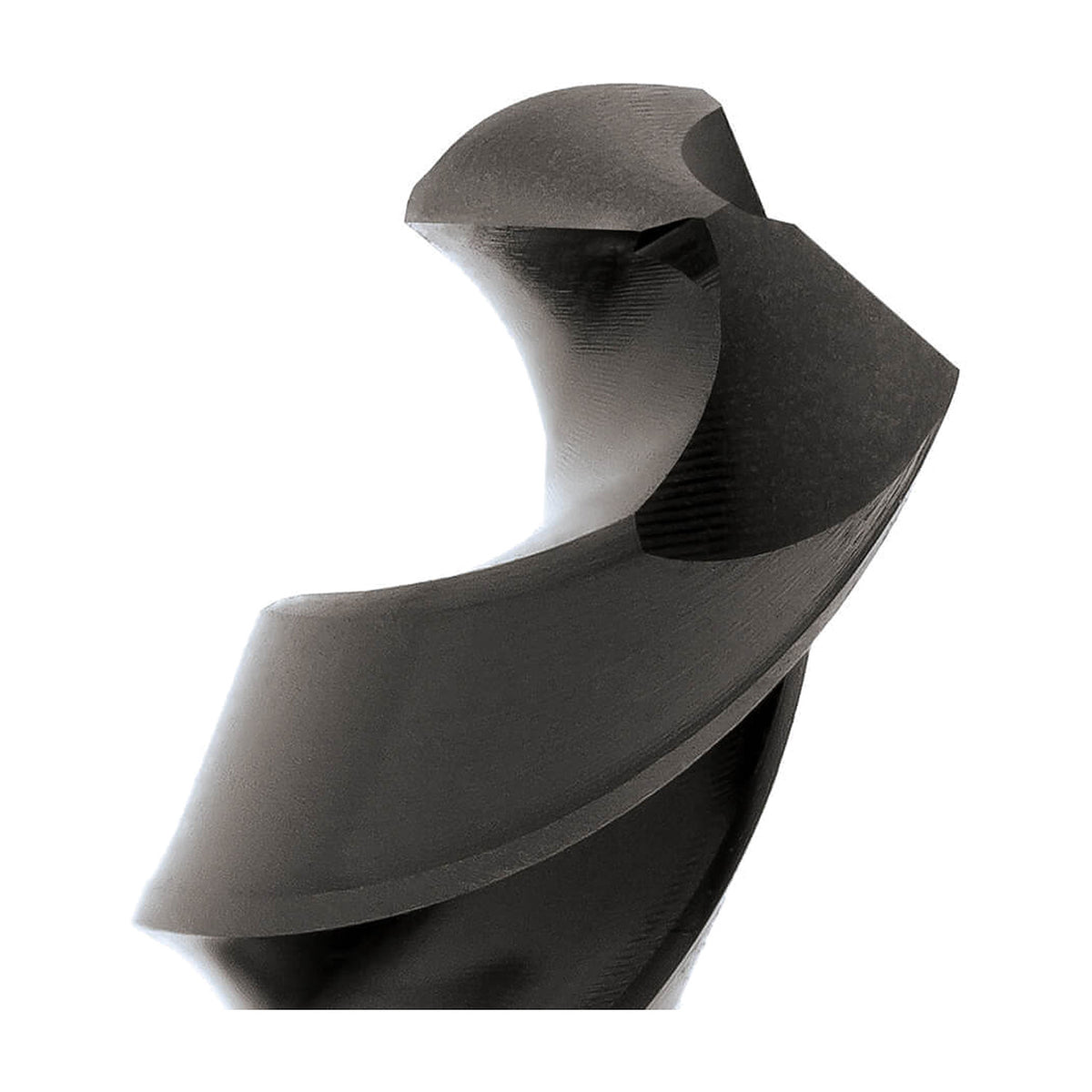

- 118° standard point for general purpose applications
- Precision engineered parallel shank for accurate hole size
- Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
- Blue surface finish for ferrous applications
- The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

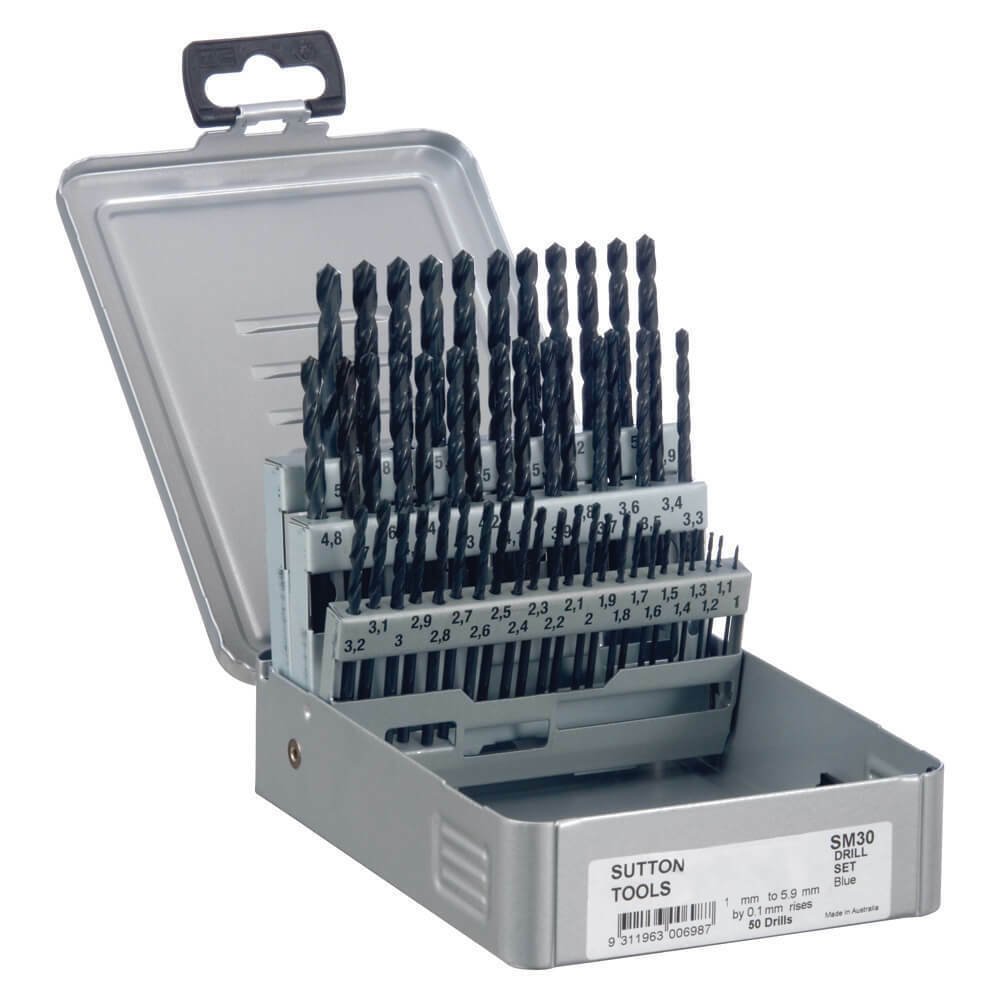

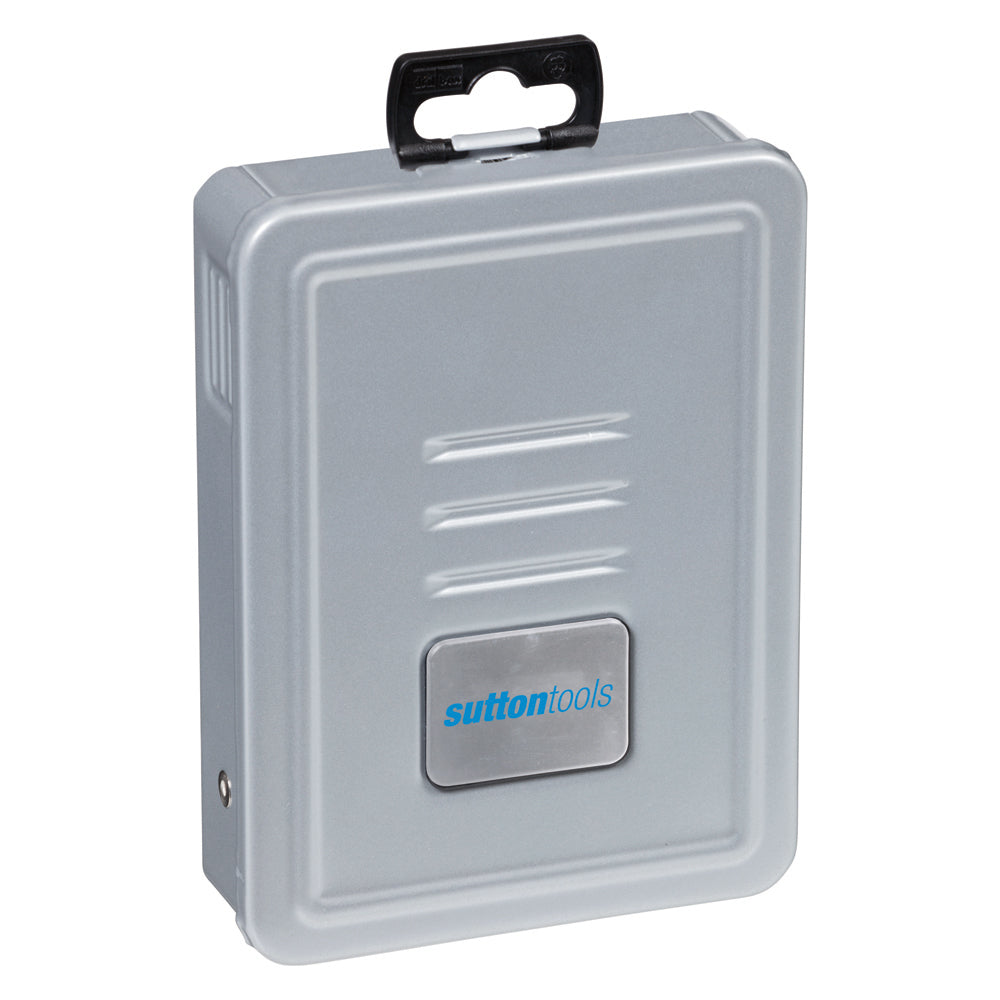

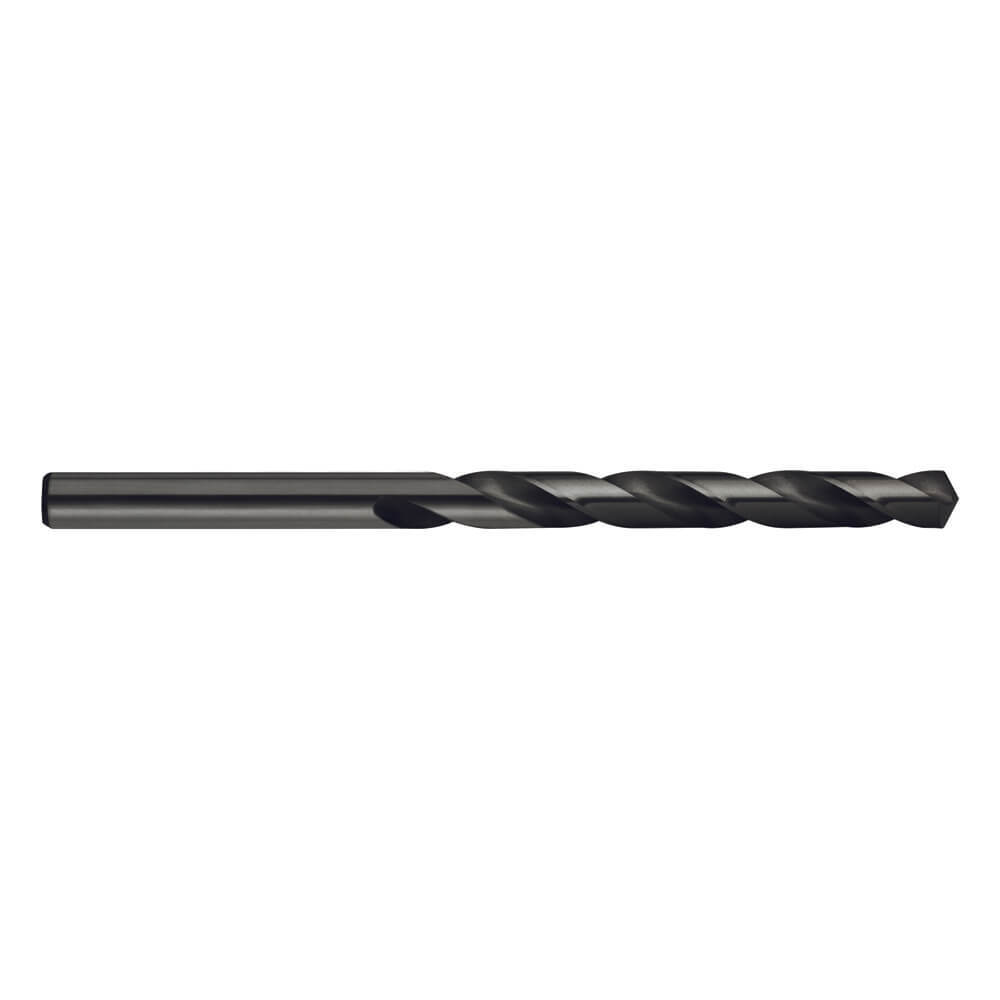

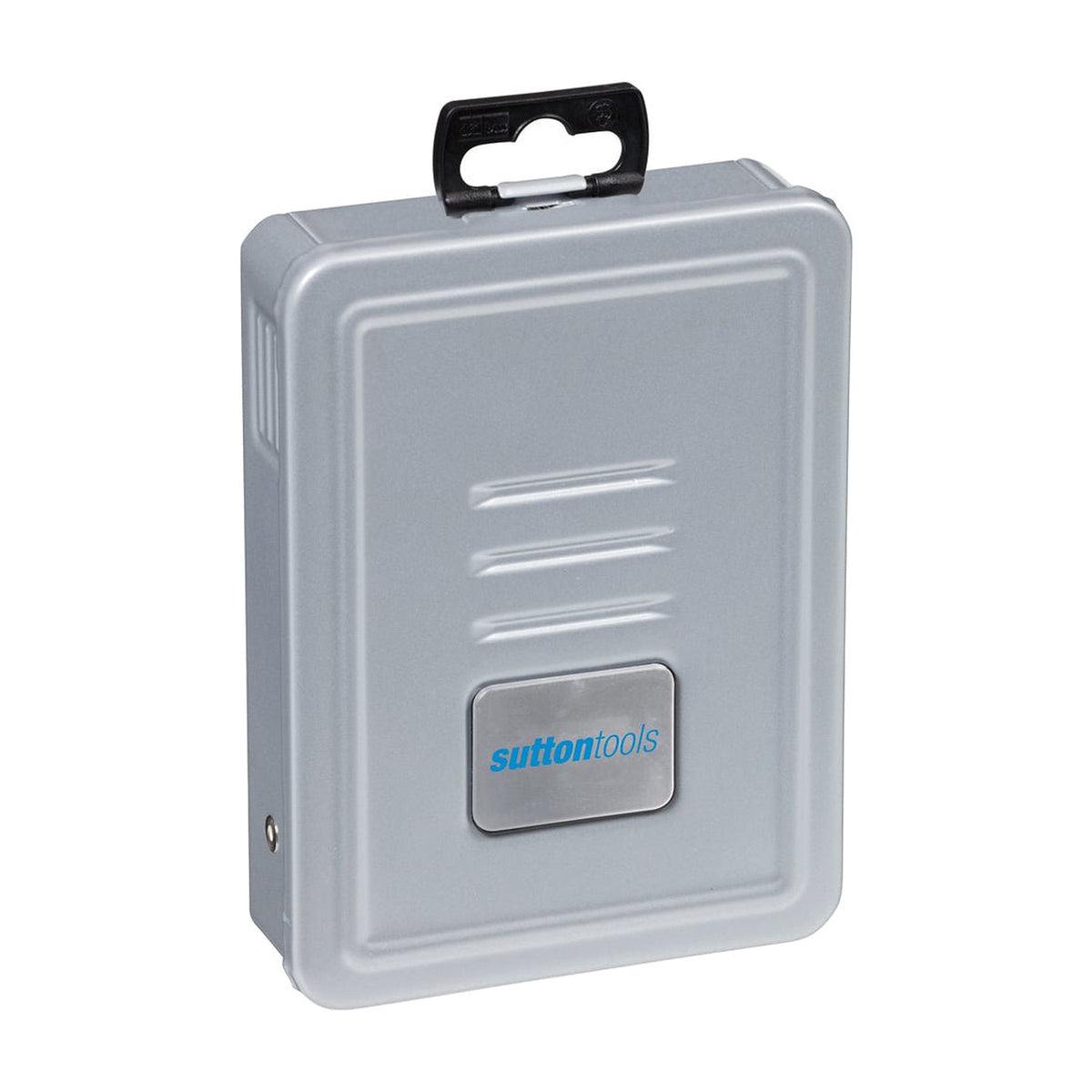

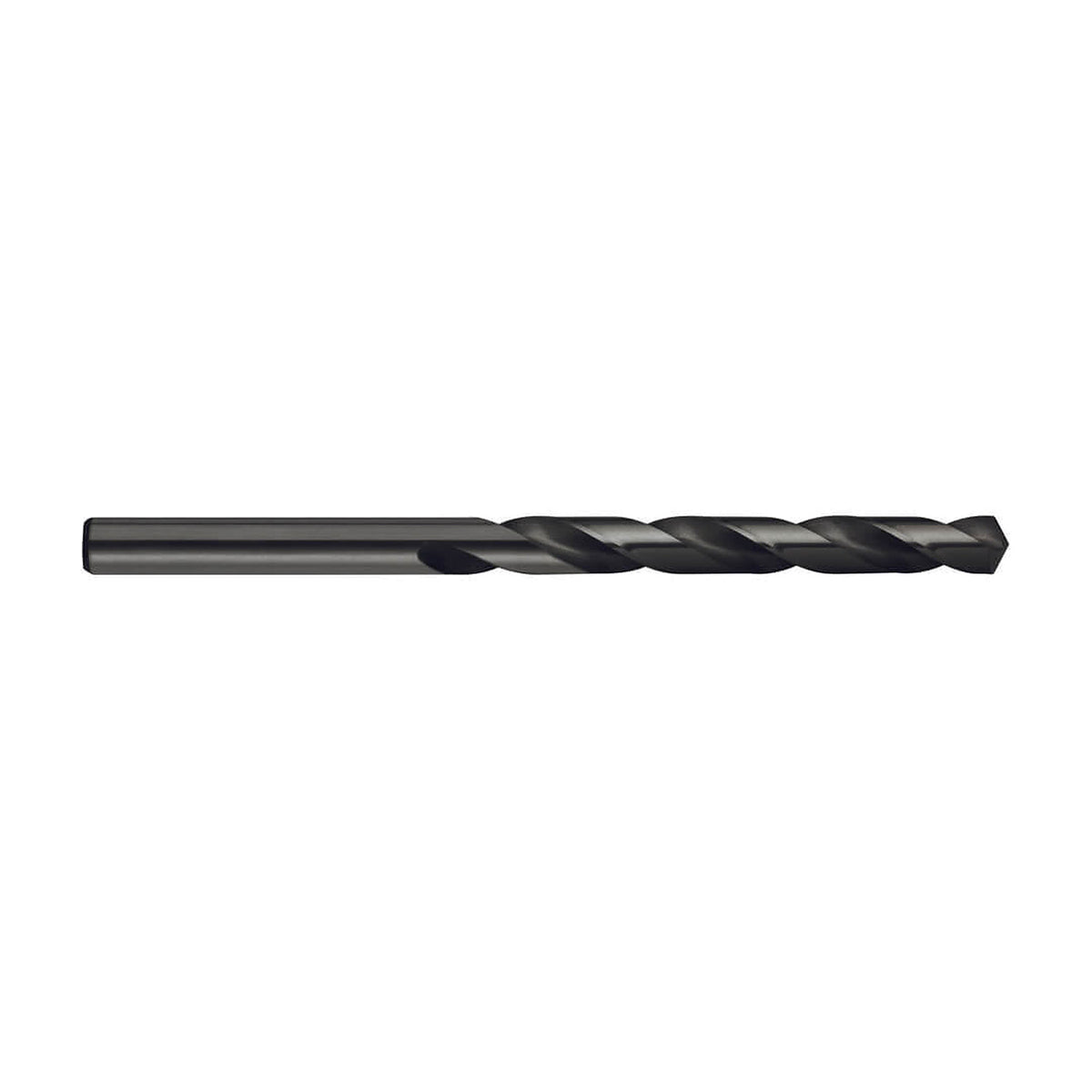

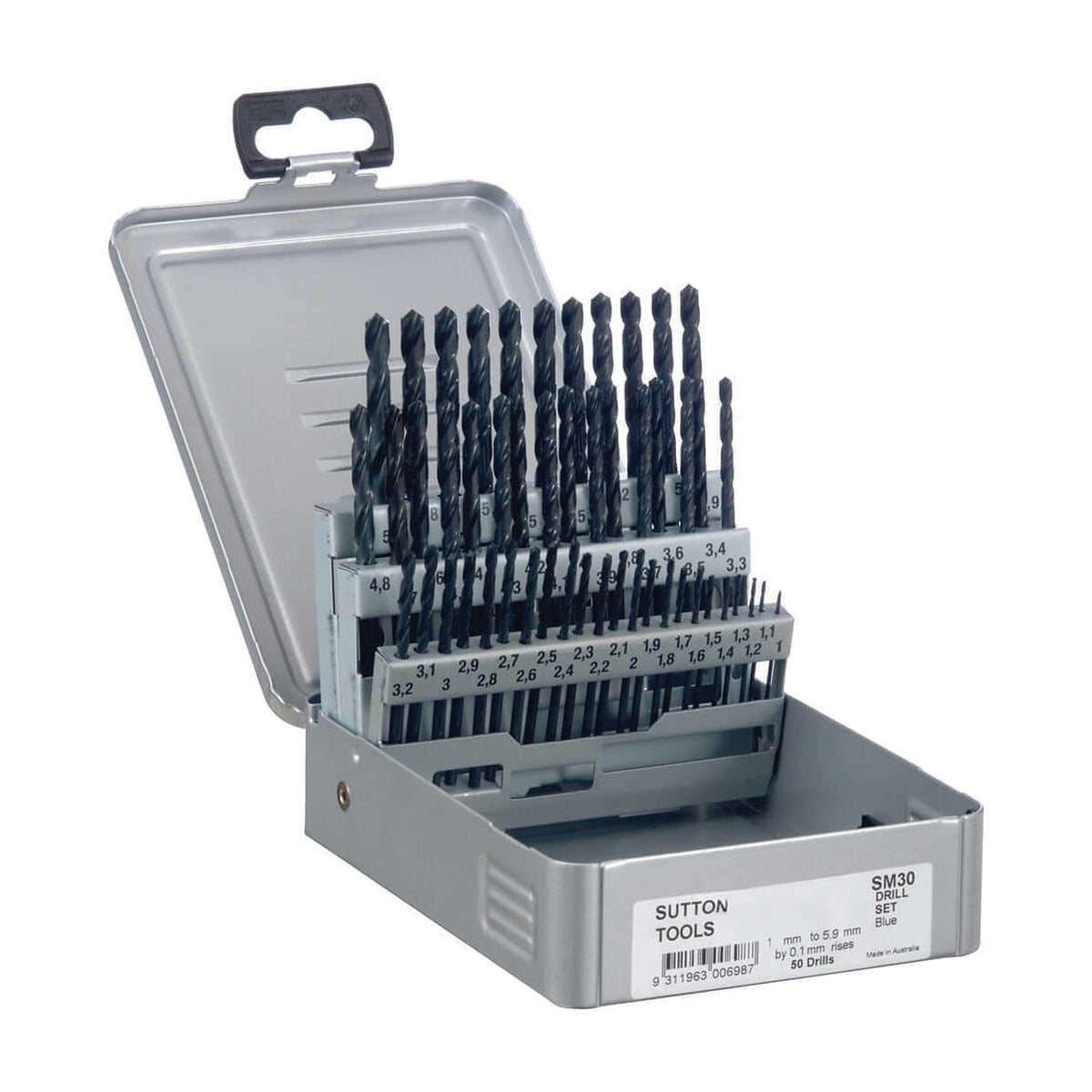

Sutton D102SM30 50 piece Blue Bullet Metric Jobber Drill Set HSS
Sutton D102SM30 50 piece Blue Bullet Metric Jobber Drill Set HSS
SKU: A0003274
Type: Jobber Drill Set
- Wide Range
- Reliable Services
- Proven Trust
Out of stock
The Sutton D102SM30 Blue Bullet Metric Jobber Drill Set comprises 50 pieces. Constructed from M2 High Speed Steel, the drill bits provide durability and heat resistance. With a blue finish, they minimise chip build-up during drilling of ferrous materials.
