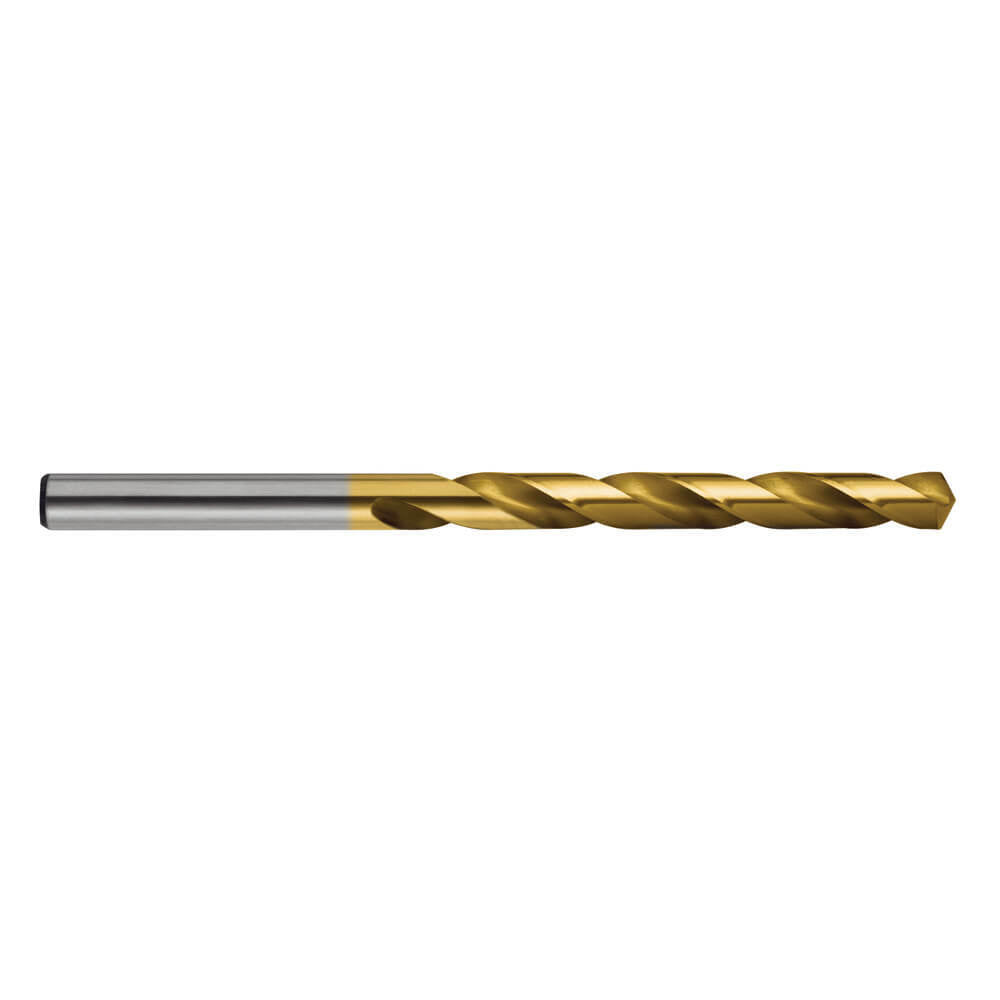

Sutton Tools TiNite® jobber drills are for high performance drilling
Lasts up to 6 times longer than standard HSS drill bits
For drilling metal & tougher alloy steels such as steel, stainless steel, copper, brass, aluminum & cast iron
Specifications
Specifications
- Range (mm): 1.0-10.0 x 0.5
- Pack Quantity: 25
- Designation: N
- Material: High Speed Steel
- Finish: TiN
- Point Angle: 118°
- Point Form: Form A
- Standard: ANSI B94-11
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
- Optimal for Steel - High alloy, cast & tool- 200 HB
- Optimal for Steel - High alloy, cast & tool- 325 HB
- Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
- Optimal for Steel - Corrosion resistant & cast - Martensitic- 240 HB
- Optimal for Stainless Steel - Austenitic- 180 HB
- Optimal for Stainless Steel - Duplex- 250 HB
Features & Benefits
Features & Benefits
- Cuts faster at higher speeds

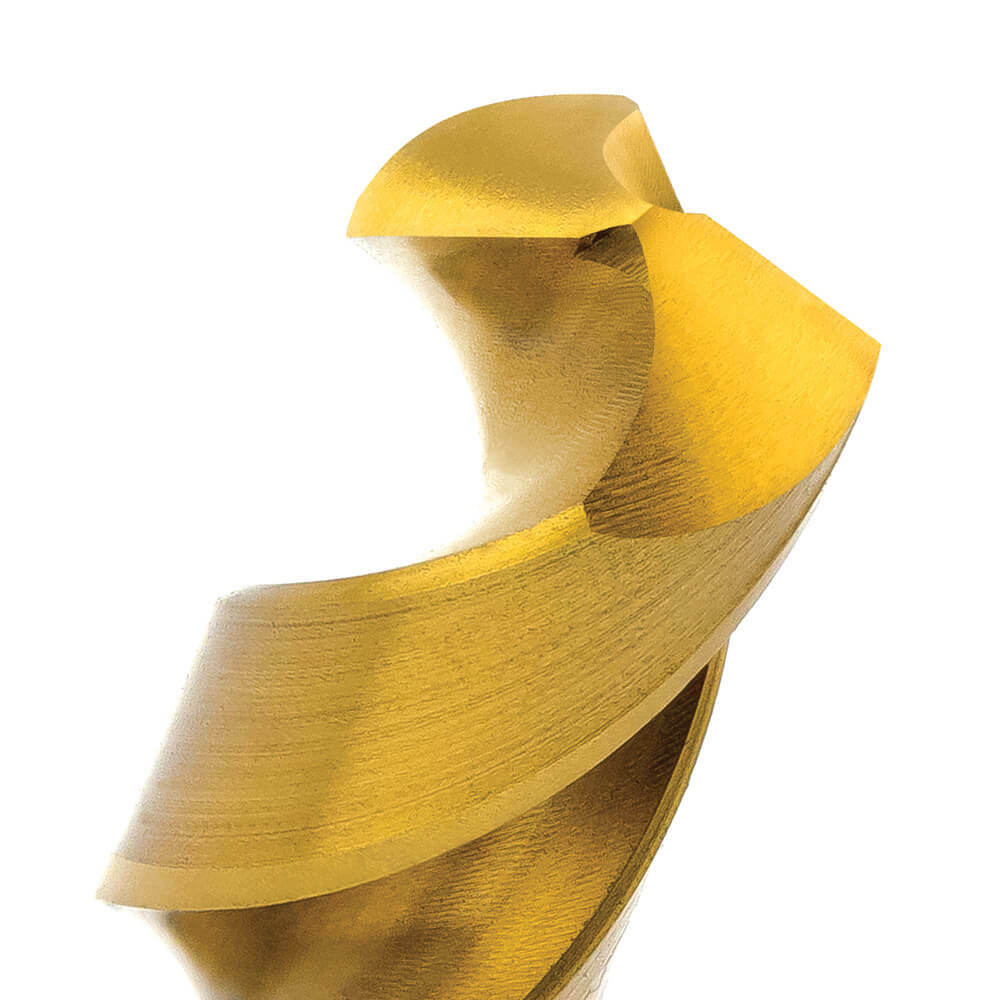

- 118° web thinned point reduces the amount of thrust required
- Precision ground flute offers high accuracy drilling and fast chip removal
- Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
- TiN coating provides 3 to 6 times longer tool life than uncoated tools and is suitable for general purpose use in a wide range of applications
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

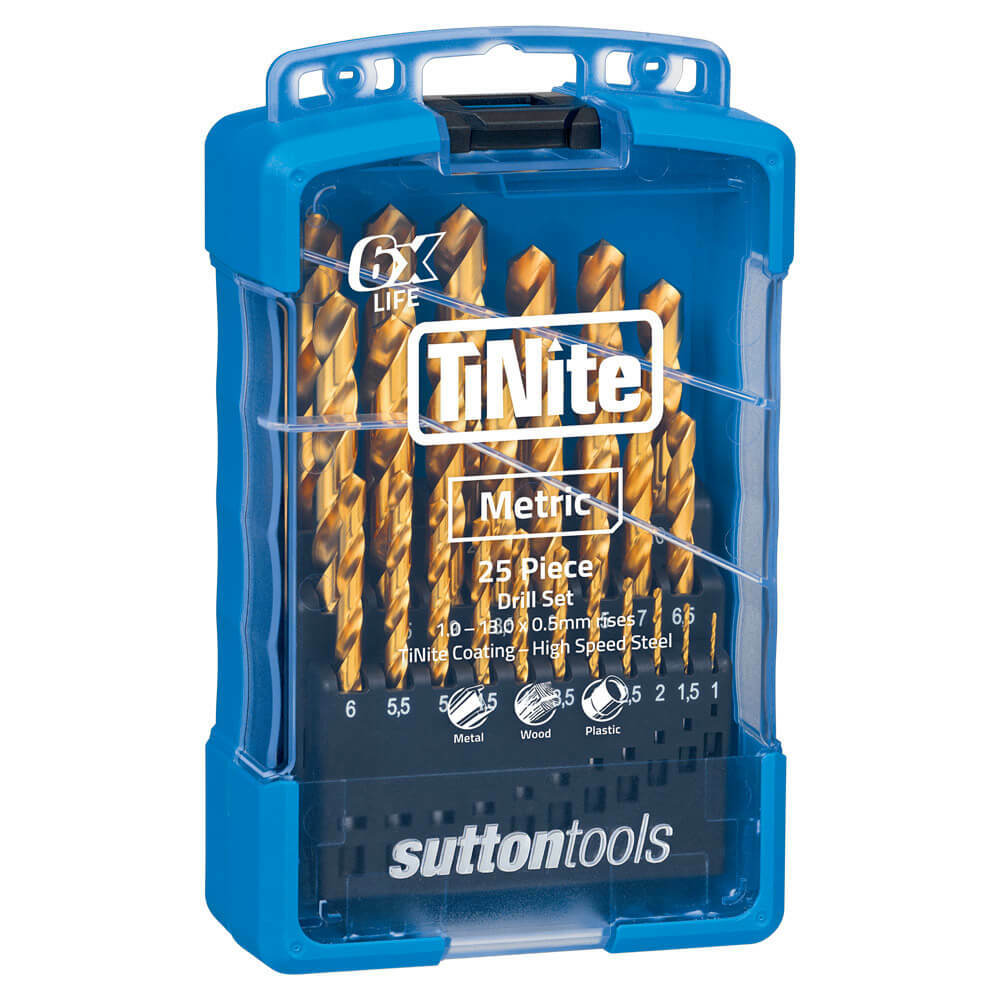

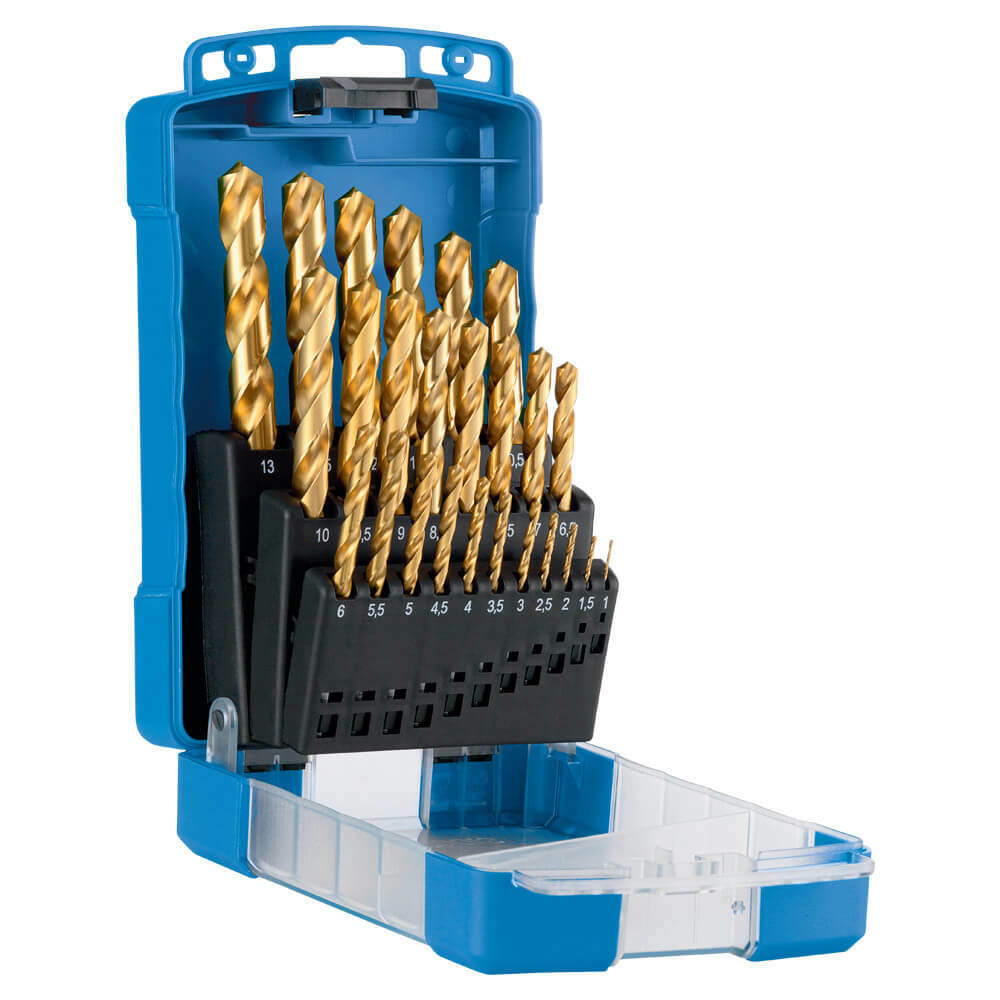

Sutton D103SM3 25 piece Tinite Jobber Metric Drill Set - HSS TiN
Sutton D103SM3 25 piece Tinite Jobber Metric Drill Set - HSS TiN
SKU: A0003423
Type: Jobber Drill Set
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton D103SM3 Tinite Jobber Metric Drill Set comprises 25 pieces for high-performance drilling. Constructed from M2 High Speed Steel with a TiN coating, these bits provide durability and longevity, outlasting standard HSS drill bits by up to six times.
