Sutton D103SM3 25 Piece TiNite Jobber Drill Set - HSS
Available

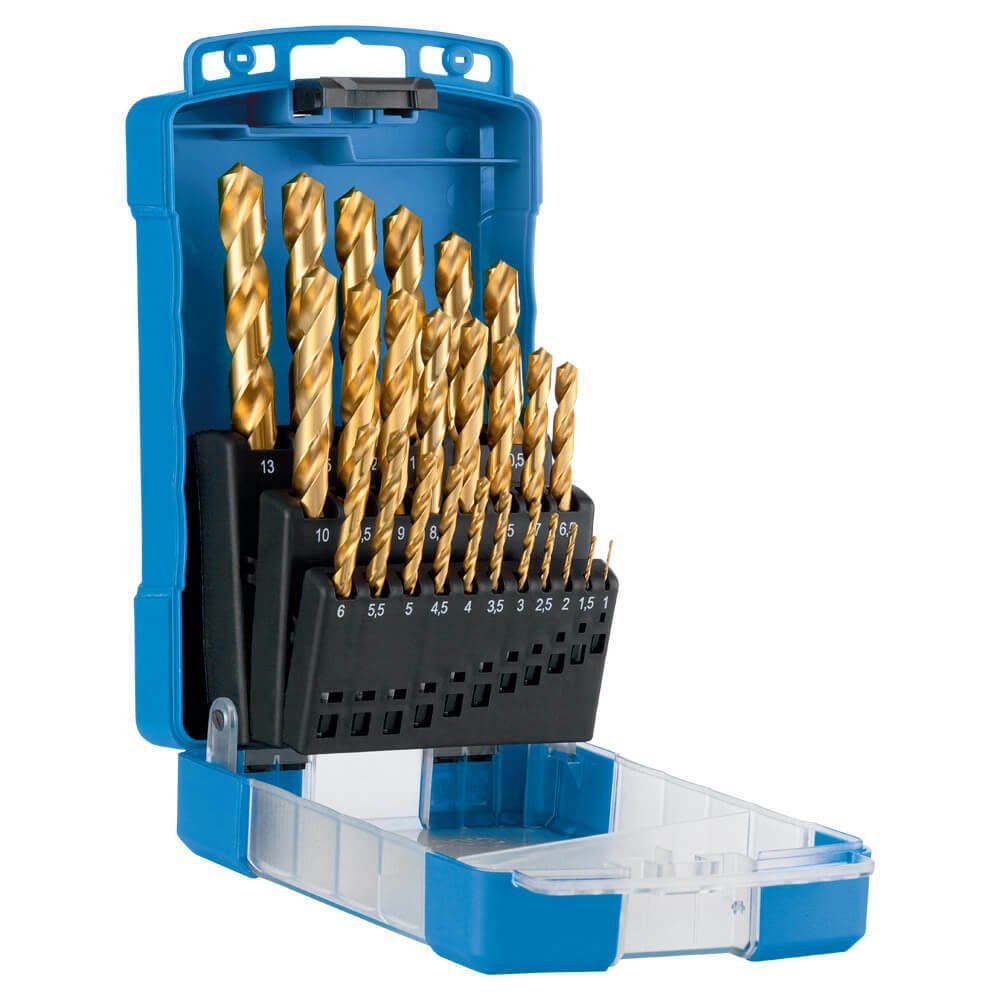

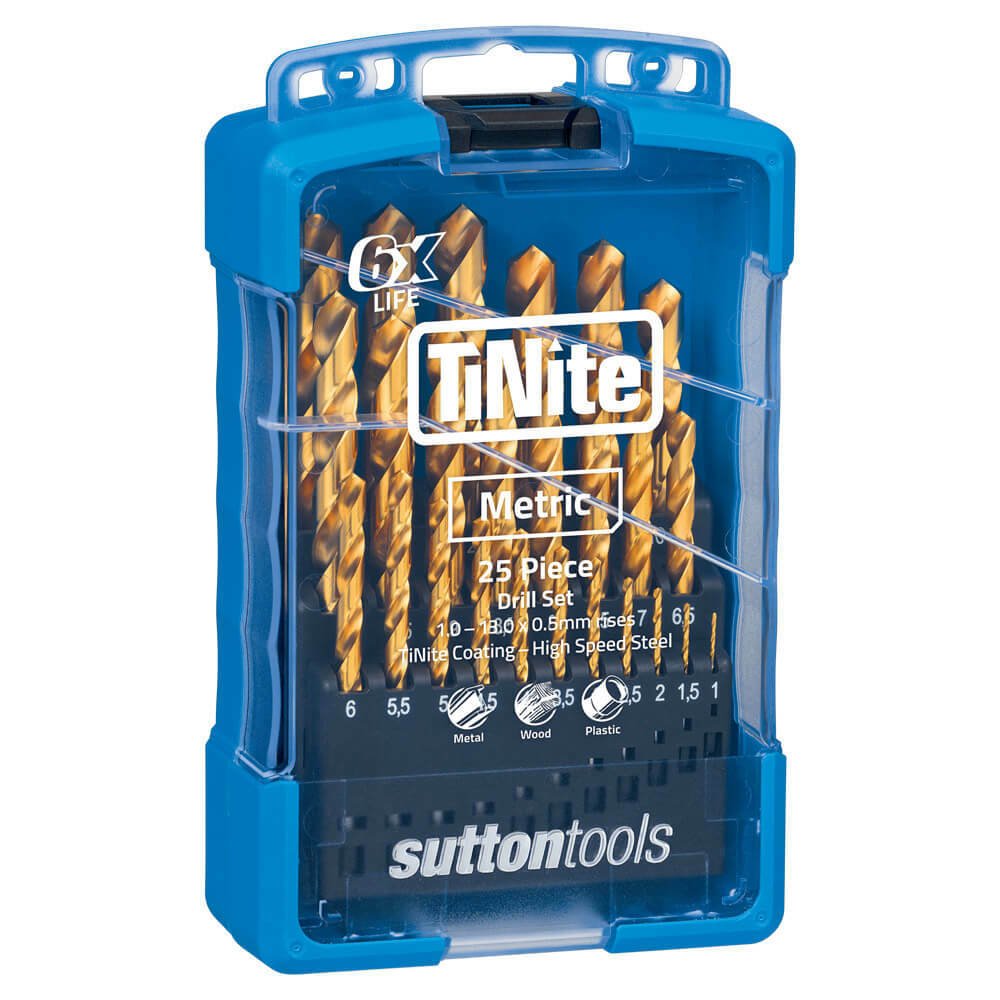

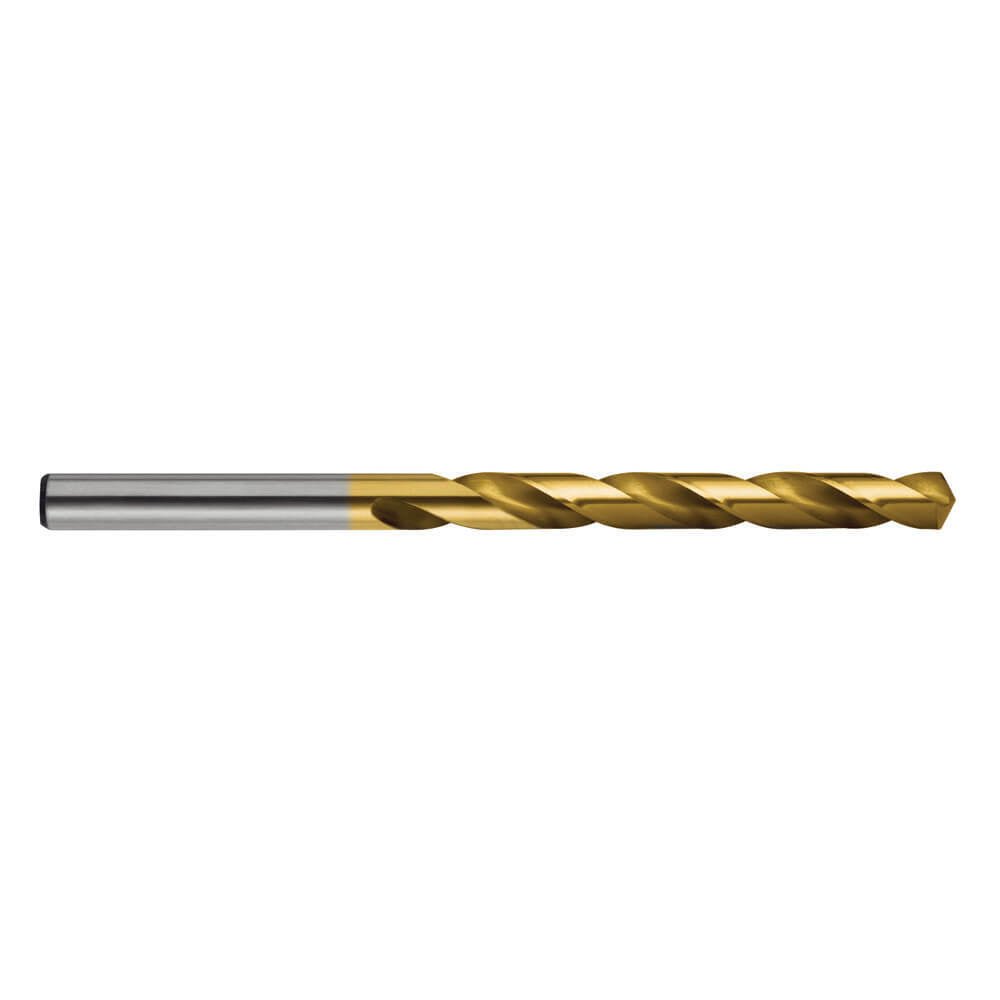

The Sutton D103SM3 is a 25-piece set of D103 TiNite drills in High Speed Steel (HSS), in a ABS plastic case. The set covers 1.0 – 13.0 mm × 0.5 mm steps.
Each drill in the set has 30° right-hand helix flutes (R30), a 118° Form A point, a gold titanium nitride (TiN) coating and is made to DIN 338.
What is in the set
- 25 drills: 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13 mm
Drills in this set
Dimensions of each drill in the set, from the individual D103 TiNite items of the same sizes. The 1.5 mm and 5 mm drills use the same DIN 338 lengths as the other D103 sizes of that diameter.

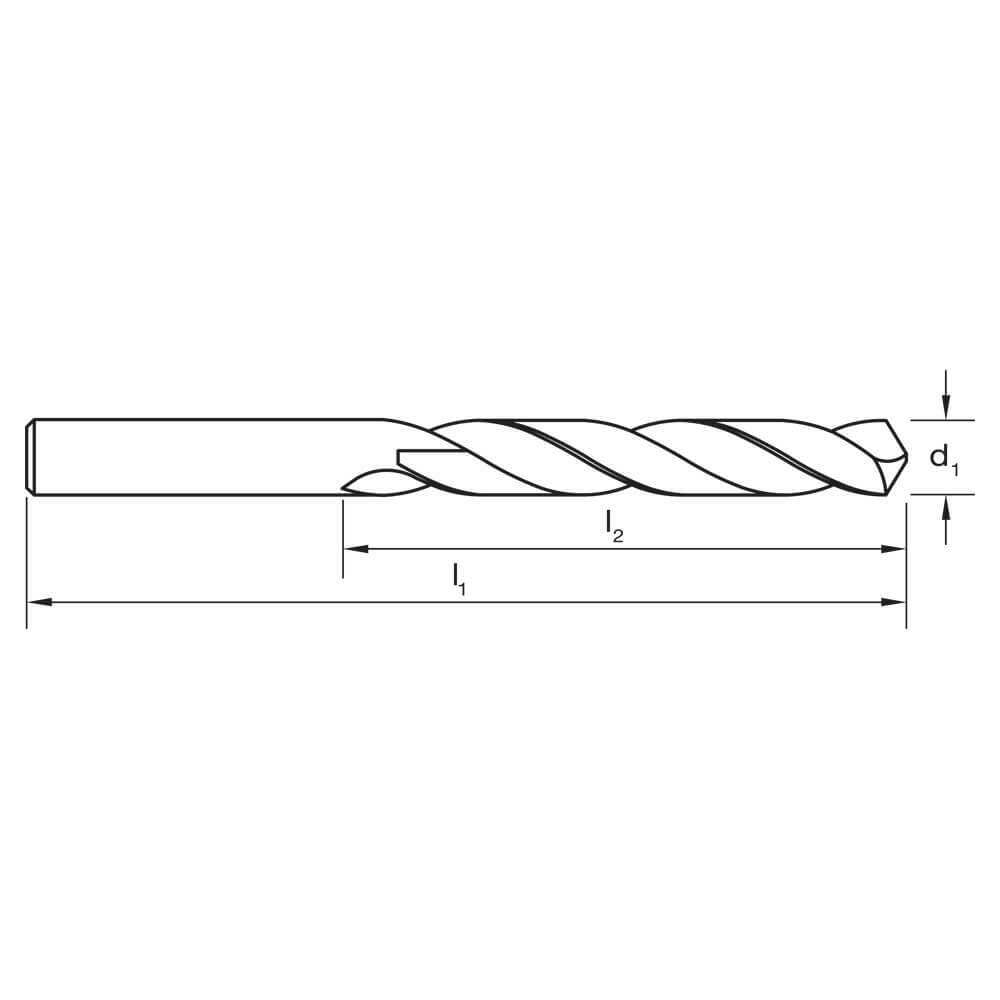

| Size | Item no. | Flute length l2 (mm) | Overall length l1 (mm) |
|---|---|---|---|
| 1 mm | D103 0100 | 12 | 34 |
| 1.5 mm | D103 0150 | 18 | 40 |
| 2 mm | D103 0200 | 24 | 49 |
| 2.5 mm | D103 0250 | 30 | 57 |
| 3 mm | D103 0300 | 33 | 61 |
| 3.5 mm | D103 0350 | 39 | 70 |
| 4 mm | D103 0400 | 43 | 75 |
| 4.5 mm | D103 0450 | 47 | 80 |
| 5 mm | D103 0500 | 52 | 86 |
| 5.5 mm | D103 0550 | 57 | 93 |
| 6 mm | D103 0600 | 57 | 93 |
| 6.5 mm | D103 0650 | 63 | 101 |
| 7 mm | D103 0700 | 69 | 109 |
| 7.5 mm | D103 0750 | 69 | 109 |
| 8 mm | D103 0800 | 75 | 117 |
| 8.5 mm | D103 0850 | 75 | 117 |
| 9 mm | D103 0900 | 81 | 125 |
| 9.5 mm | D103 0950 | 81 | 125 |
| 10 mm | D103 1000 | 87 | 133 |
| 10.5 mm | D103 1050 | 87 | 133 |
| 11 mm | D103 1100 | 94 | 142 |
| 11.5 mm | D103 1150 | 94 | 142 |
| 12 mm | D103 1200 | 101 | 151 |
| 12.5 mm | D103 1250 | 101 | 151 |
| 13 mm | D103 1300 | 101 | 151 |
Where this product is used
- General drilling across the materials rated for D103 TiNite drills.
- Materials rated Optimal for the D103: non-alloy steel, about 0.15 %C, annealed; non-alloy steel, about 0.45 %C, annealed; non-alloy steel, about 0.45 %C, quenched and tempered (250 HB); non-alloy steel, about 0.75 %C (annealed and quenched and tempered); low-alloy steel (under 5% alloying elements), annealed; low-alloy steel, quenched and tempered (275 to 350 HB); high-alloy and tool steel; grey cast iron; nodular cast iron; and malleable cast iron.
- General-purpose drilling where a TiN-coated drill is preferred over an uncoated one.
Finish

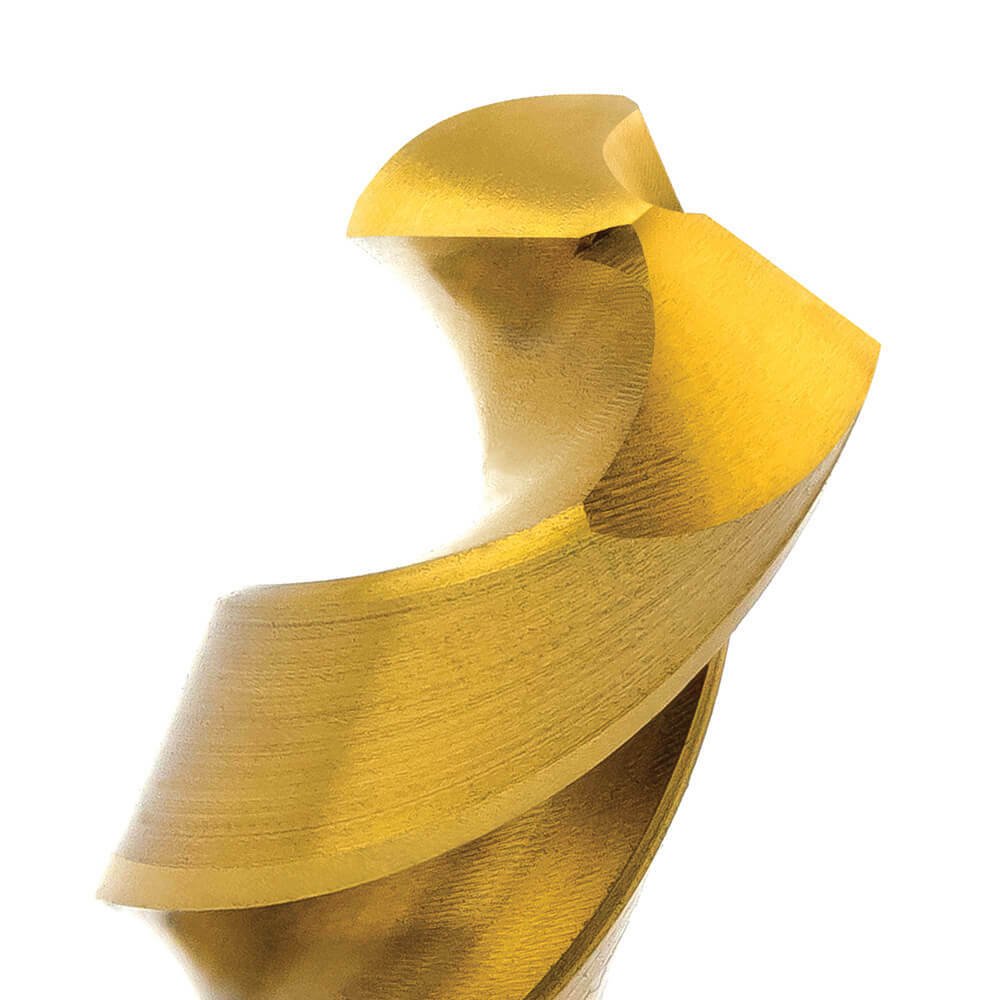

Titanium nitride (TiN), gold. TiN has a microhardness of 2300 HV and thermal stability to about 600 °C (1112 °F), and is designed to give 3 to 8 times longer tool life than uncoated tools with higher speeds and feeds than uncoated.
Cutting speeds and feeds
Cutting speeds (Vc) and feed numbers are given for the D103. Speed (rpm) = Vc × 1000 ÷ (π × Ø); treat these as starting values.
| Material (VDI 3323 group) | Rating | Vc (m/min) | Feed no. | Ø6 mm: rpm / feed | Ø10 mm: rpm / feed |
|---|---|---|---|---|---|
| Non-alloy steel, about 0.15 %C, annealed | Optimal | 24 | 5 | 1,270 rpm / 0.125 mm/rev | 765 rpm / 0.19 mm/rev |
| Non-alloy steel, about 0.45 %C, annealed | Optimal | 20 | 5 | 1,060 rpm / 0.125 mm/rev | 635 rpm / 0.19 mm/rev |
| Non-alloy steel, about 0.45 %C, quenched and tempered | Optimal | 18 | 5 | 955 rpm / 0.125 mm/rev | 575 rpm / 0.19 mm/rev |
| Non-alloy steel, about 0.75 %C, annealed | Optimal | 18 | 5 | 955 rpm / 0.125 mm/rev | 575 rpm / 0.19 mm/rev |
| Low-alloy steel (under 5% alloying), annealed | Optimal | 18 | 5 | 955 rpm / 0.125 mm/rev | 575 rpm / 0.19 mm/rev |
| Low-alloy steel, quenched and tempered (275 HB) | Optimal | 18 | 4 | 955 rpm / 0.1 mm/rev | 575 rpm / 0.16 mm/rev |
| High-alloy and tool steel, annealed | Optimal | 12 | 4 | 635 rpm / 0.1 mm/rev | 380 rpm / 0.16 mm/rev |
| Ferritic / martensitic stainless steel | Effective | 10 | 3 | 530 rpm / 0.08 mm/rev | 320 rpm / 0.125 mm/rev |
| Austenitic stainless steel | Effective | 10 | 4 | 530 rpm / 0.1 mm/rev | 320 rpm / 0.16 mm/rev |
| Duplex stainless steel | Effective | 8 | 4 | 425 rpm / 0.1 mm/rev | 255 rpm / 0.16 mm/rev |
| Grey cast iron, ferritic / pearlitic | Optimal | 25 | 6 | 1,330 rpm / 0.16 mm/rev | 795 rpm / 0.24 mm/rev |
| Grey cast iron, pearlitic | Effective | 20 | 5 | 1,060 rpm / 0.125 mm/rev | 635 rpm / 0.19 mm/rev |
| Nodular cast iron, ferritic | Optimal | 18 | 6 | 955 rpm / 0.16 mm/rev | 575 rpm / 0.24 mm/rev |
| Malleable cast iron, ferritic | Optimal | 18 | 6 | 955 rpm / 0.16 mm/rev | 575 rpm / 0.24 mm/rev |
| Cast aluminium and magnesium (up to 12% Si), non heat treatable | Effective | 30 | 4 | 1,590 rpm / 0.1 mm/rev | 955 rpm / 0.16 mm/rev |
| Cast aluminium over 12% Si | Effective | 20 | 6 | 1,060 rpm / 0.16 mm/rev | 635 rpm / 0.24 mm/rev |
| Copper alloys, free cutting (Pb > 1%) | Effective | 30 | 4 | 1,590 rpm / 0.1 mm/rev | 955 rpm / 0.16 mm/rev |
| Brass (CuZn, CuSnZn) | Effective | 25 | 4 | 1,330 rpm / 0.1 mm/rev | 795 rpm / 0.16 mm/rev |
| Bronze (CuSn) | Effective | 25 | 4 | 1,330 rpm / 0.1 mm/rev | 795 rpm / 0.16 mm/rev |
| Thermosetting and fibre-reinforced plastics | Effective | 35 | 4 | 1,860 rpm / 0.1 mm/rev | 1,110 rpm / 0.16 mm/rev |
| Chilled cast iron | Effective | 20 | 5 | 1,060 rpm / 0.125 mm/rev | 635 rpm / 0.19 mm/rev |
Key specifications
| Specification | Detail |
|---|---|
| Set number | D103SM3 |
| Catalogue code | D103 TiNite |
| Pieces | 25 |
| Size range | 1.0 – 13.0 mm × 0.5 mm rises |
| Case | ABS plastic case |
| Material | High Speed Steel (HSS) |
| Finish | Titanium nitride (TiN), gold |
| Flute geometry | 30° right-hand helix (R30) |
| Standard | DIN 338 |
Related drilling products
Individual drills from this range are in the Jobber Drill Bits collection; sets are in the Metric Jobber Drill Sets and Imperial Jobber Drill Sets collections. Our speeds and feeds chart and troubleshooting guide help with speeds and problem solving.
