Description
Description

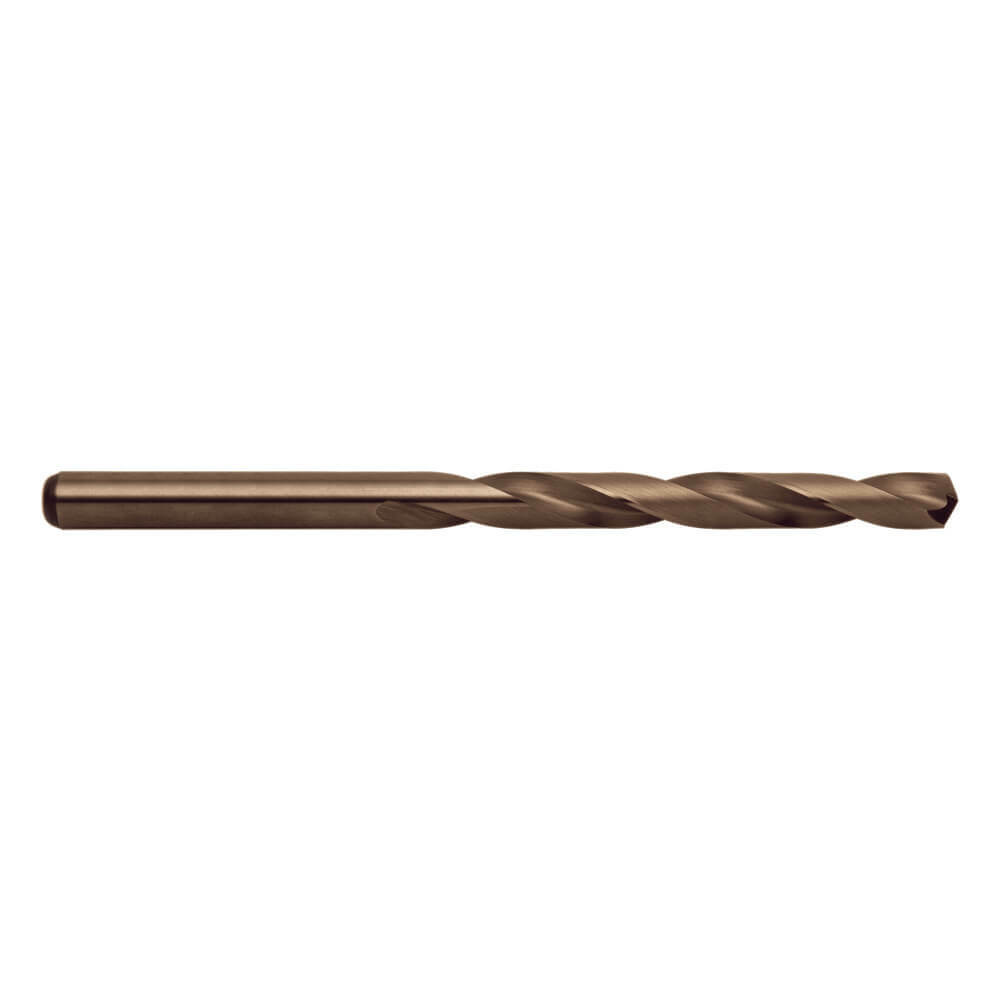

Sutton Tools Heavy Duty Cobalt jobber drills are industrial quality for drilling materials that have high hardness and tensile strength such as cast iron, bronze, hardened steel & stainless steel
These drill bits feature a thick core for increased rigidity in hard materials

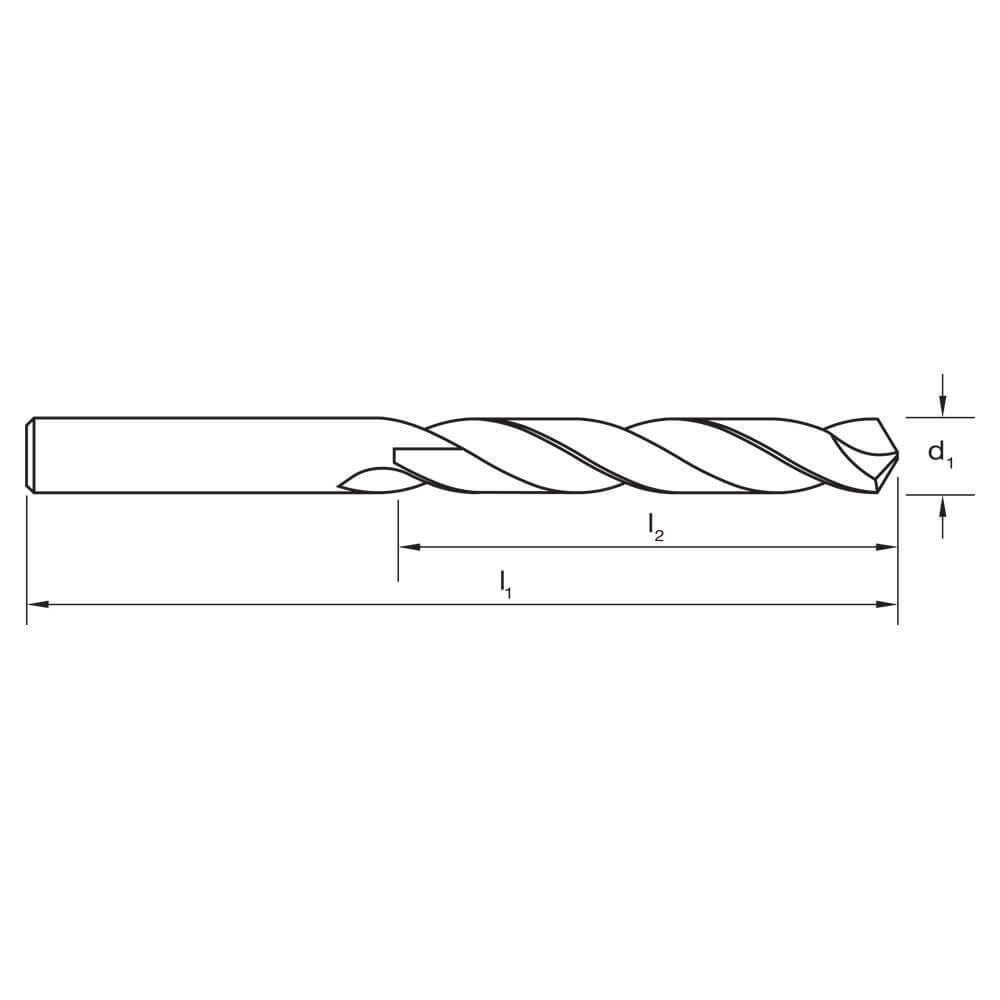

Specifications
Specifications
- Range (mm): 1.0-10.0 x 0.5
- Pack Quantity: 19
- Designation: Tough Materials
- Material: High Speed Steel Cobalt
- Finish: Colour Temp
- Helix Angle: R25
- Point Angle: 135°
- Point Form: Form C
- Standard: DIN 338
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)- 90 HB
Features & Benefits
Features & Benefits
- 135° split point (drills > 2mm & 3/32) enables accurate positioning and less drilling pressure
- Thick core for increased rigidity in hard materials
- Precision engineered parallel shank for accurate hole size
- Made from HSS Co. The 5% cobalt formula improves abrasive & heat resistance, for increased strength at higher cutting temperatures
- Colour Tempered surface finish enables identification of cobalt tool material
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

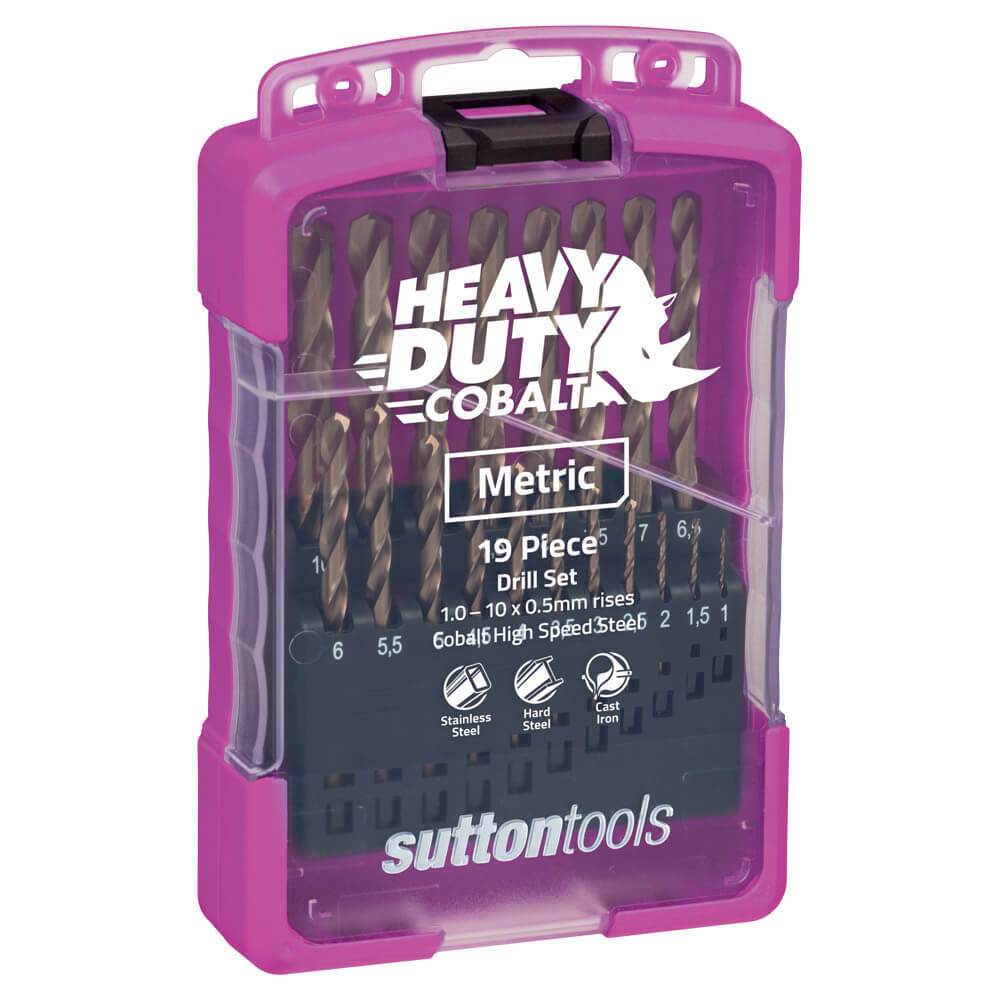

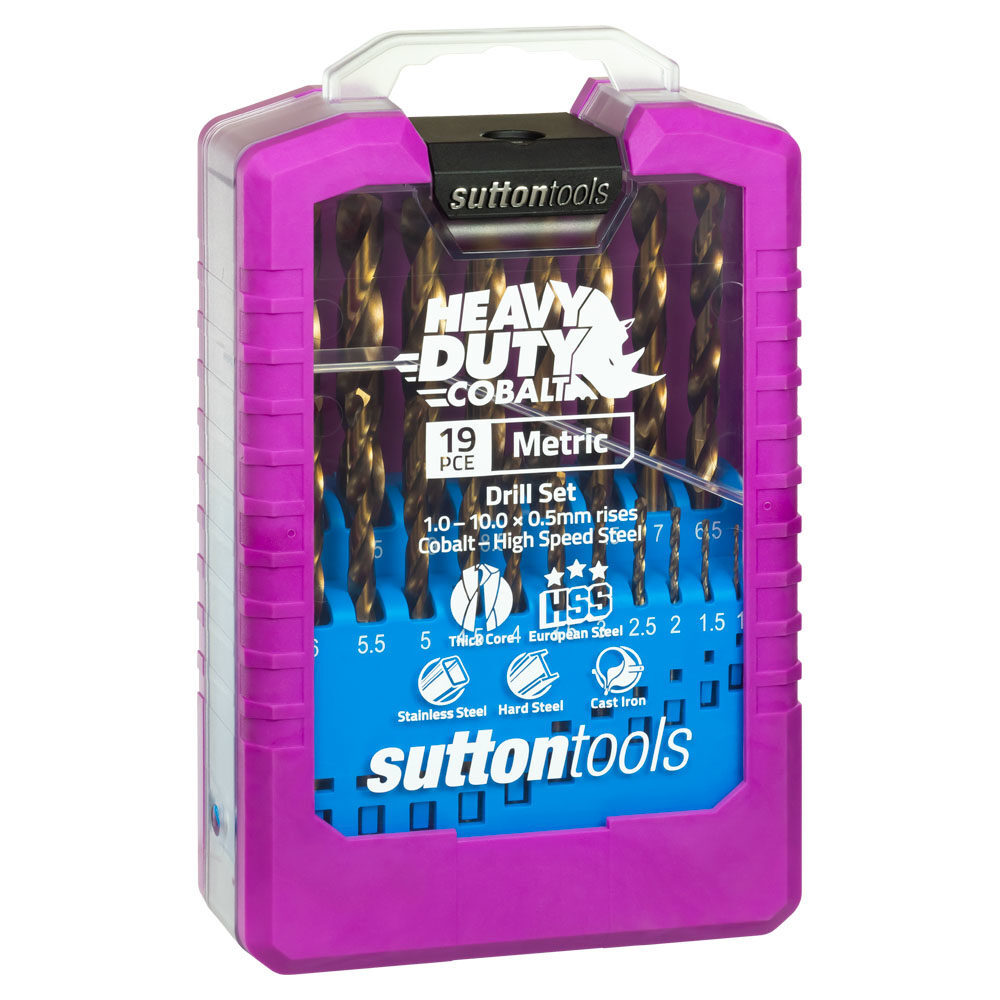

Sutton D109SM2 19 piece Cobalt Metric Jobber Drill Set Colour Temp
Sutton D109SM2 19 piece Cobalt Metric Jobber Drill Set Colour Temp
SKU: A0003772
Type: Jobber Drill Set
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton D109SM2 Cobalt Metric Jobber Drill Set includes 19 pieces for drilling hard materials. With a thick core and 135° split point, these drill bits offer precision and reduced drilling pressure. Made from High Speed Steel Cobalt, they resist heat and abrasion effectively.
