Sutton 1mm Blue Bullet Long Series Drill Bit - Metric - HSS

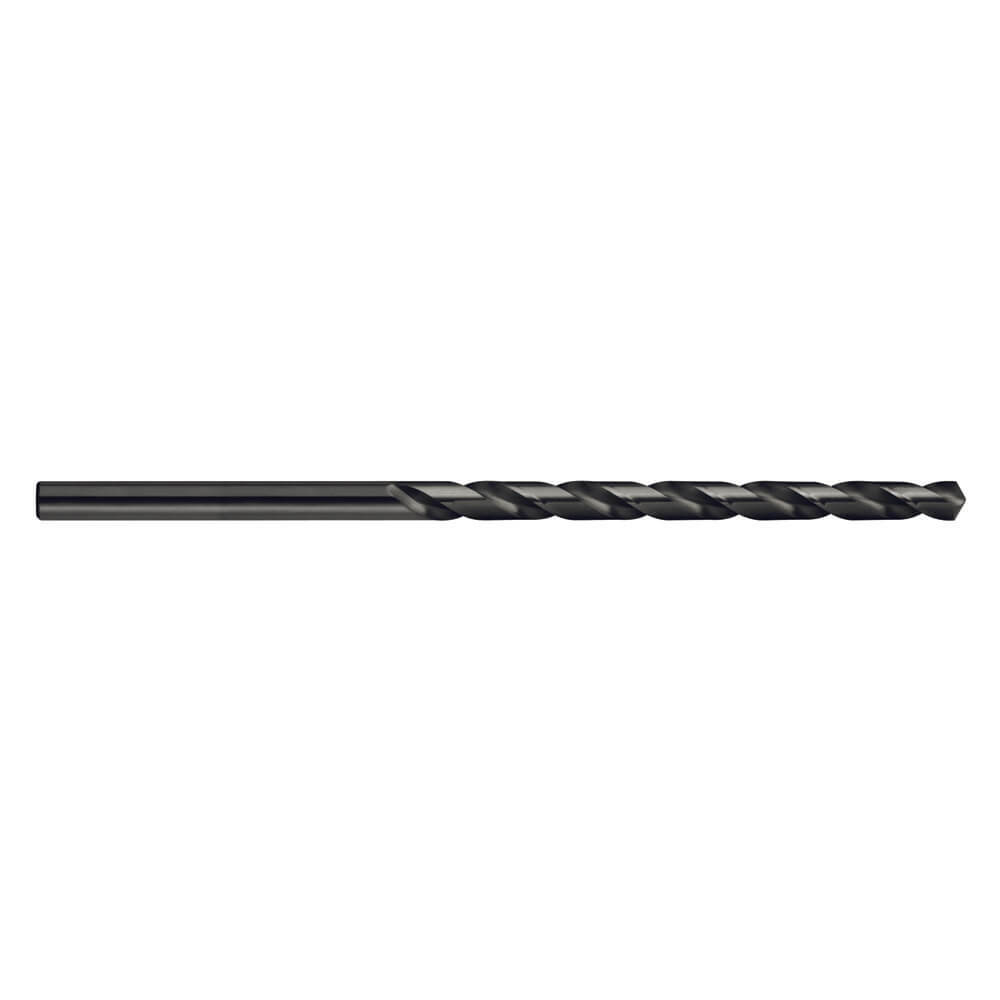

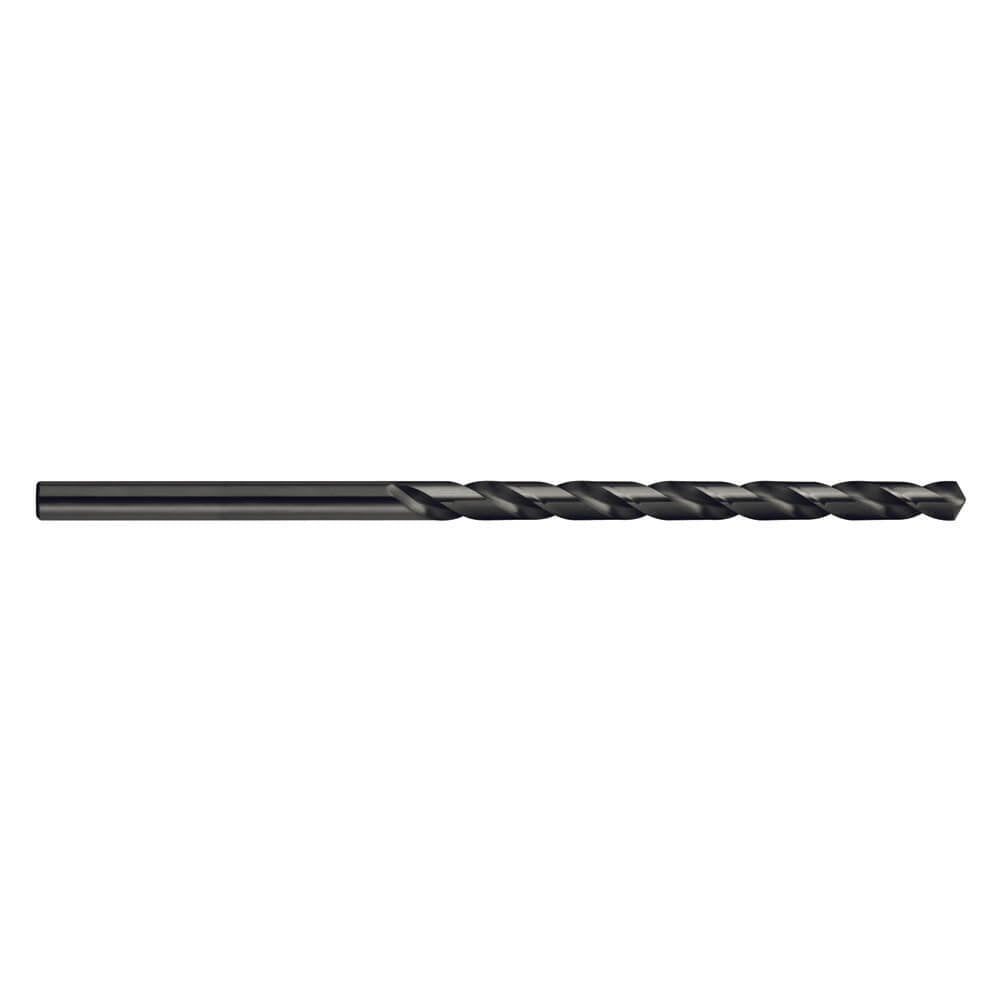

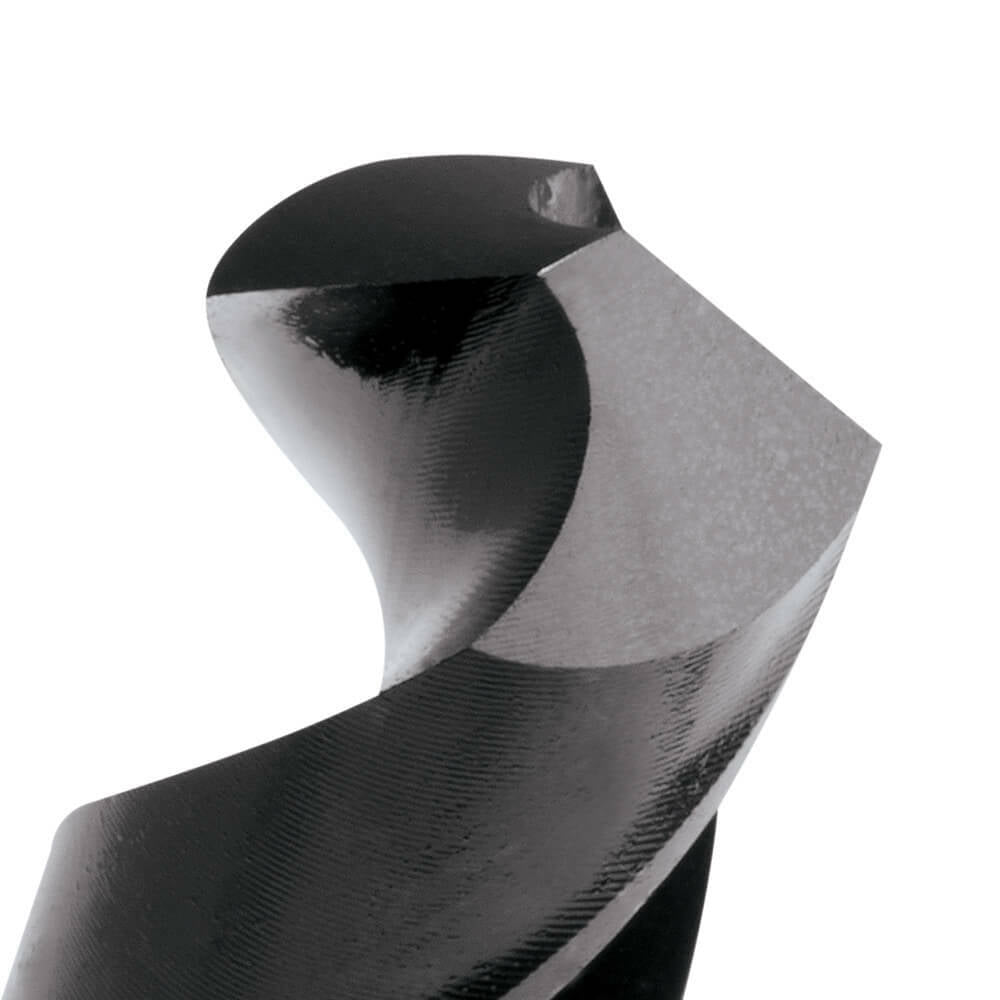

The Sutton D113 Blue Bullet Long Series is a long-series drill in HSS with a blue steam-oxide finish. It has 30° right-hand helix flutes (R30), a 118° standard point, and is made to ANSI B94-11.

General-purpose drill; ideal for long-reach applications; pecking is recommended for deep holes; recommended for controlled machine drilling only.

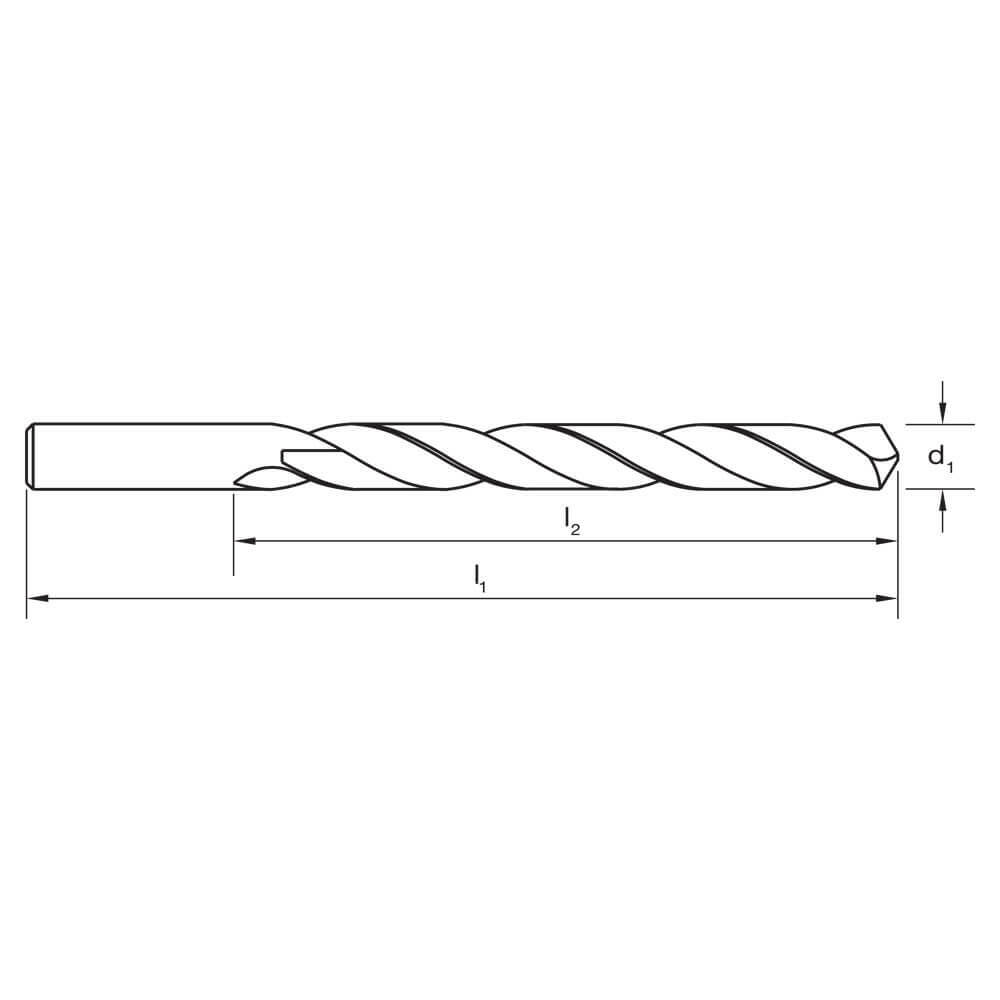

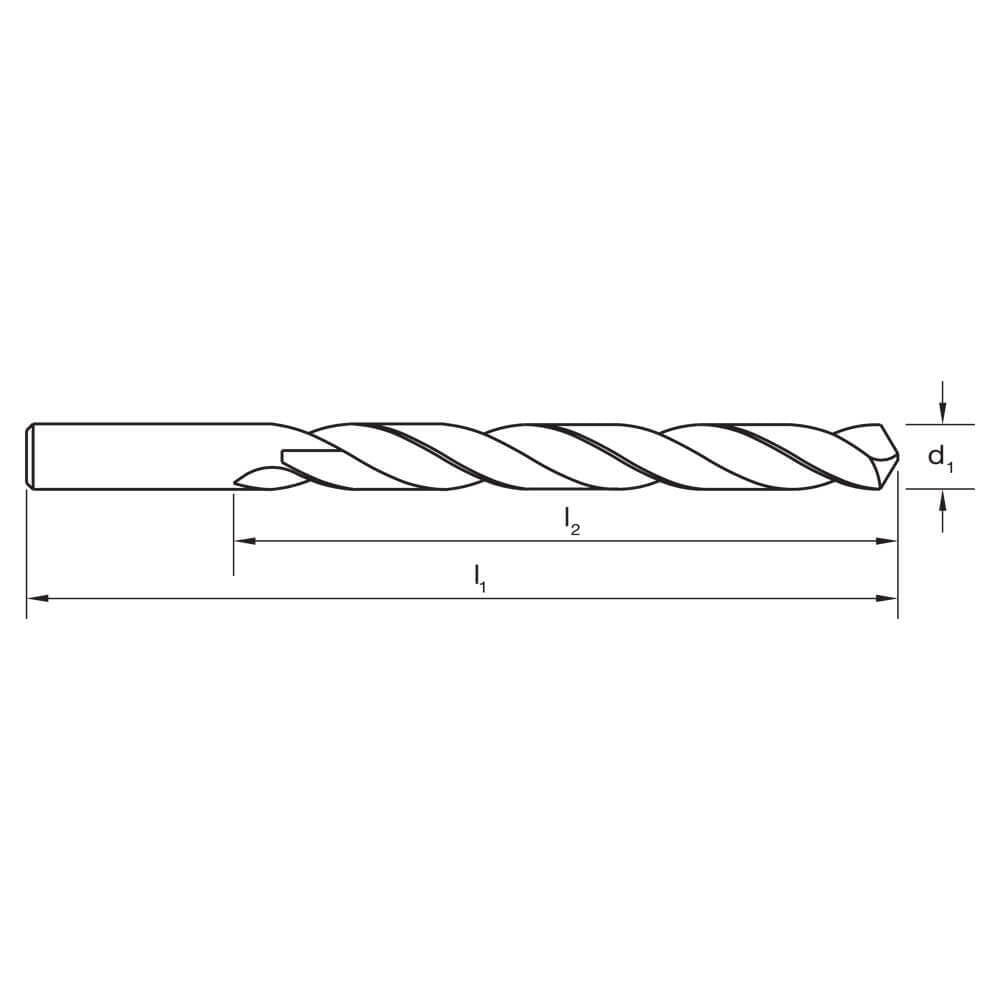

This is the metric and fractional-inch range: 150 sizes from 1 to 13 mm, with flute lengths of 29 to 121 mm and overall lengths of 57 to 203 mm. 29 of the sizes are fractional-inch drills, shown with the inch size first (for example 21/64 in = 8.33 mm); the rest are metric sizes.

Where this product is used

• Long-reach holes, with pecking on deep holes. Use controlled machine drilling only; this is not a hand-held drill.
• Materials rated Optimal for this drill: non-alloy steel, about 0.15 %C, annealed; non-alloy steel, about 0.45 %C, annealed; non-alloy steel, about 0.45 %C, quenched and tempered (250 HB); and low-alloy steel (under 5% alloying elements), annealed.
• Also rated Effective: non-alloy steel, about 0.75 %C (annealed and quenched and tempered) (some grades); low-alloy steel, quenched and tempered (275 to 350 HB); high-alloy and tool steel; austenitic stainless steel; grey cast iron; nodular cast iron; malleable cast iron; wrought aluminium and magnesium alloys; and chilled cast iron.
• Hole depths to 7 × Ø. Step feeding or pecking is required beyond 3 × Ø.

Finish

Blue (steam oxide). The blue steam-oxide finish is for ferrous metals: it helps prevent chip build-up on the cutting edges (especially in carbon steels), the oxide layer protects the surface and it carries lubricant well.

Cutting speeds and feeds

Cutting speeds (Vc) and feed numbers for this drill are from the Sutton Application Guide. The table lists the material groups covered, with the speed and the rpm and feed it works out to at Ø6 mm and Ø10 mm. Speed (rpm) = Vc × 1000 ÷ (π × Ø). Treat these as starting values and adjust for the machine, set-up and coolant.

Feed rates (mm/rev) for the feed numbers above:

Drilling notes

• Step feeding or pecking is required for holes deeper than 3 × Ø.
• When drilling a cast or black (not machined) surface, reduce the drilling speed by 20%.
• For optimal positional accuracy and hole size, spot the hole first with a Sutton spotting drill (D175).
• For hole depths greater than 7 × Ø, pre-drill a pilot hole first for accurate hole position and to stop the drill wandering. The pilot can be drilled with a short, rigid drill, about 3 × Ø deep, at reduced feed.

Deep holes: reduce speed and feed as hole depth increases.

Accuracy

Sutton drills are ground to an h8 diameter tolerance (the diameter may be at nominal or smaller, never larger) with a small back taper behind the point.

Troubleshooting

• Drill breaks. Dull point: sharpen; Drill has front taper due to wearing: sharpen; Insufficient lip clearance on point: grind correctly; Lip clearance too great: regrind to correct clearance angle.
• Outer corner breaks down. Flutes clogged with chips: remove drill from hole and clear the flutes; Cutting speed too high: reduce speed; Dry cutting, no lubricant at cutting edges: apply cutting fluid.
• Cutting edges chip. Lip clearance too great: regrind to correct clearance angle; Feed too heavy: reduce feed.
• Hole rough. Dull point: sharpen; Feed too heavy: reduce feed; Dry cutting, no lubricant at cutting edges: apply cutting fluid; Fixture/clamping not rigid: secure job firmly.
• Hole oversize. Unequal angle or uneven length of cutting edges: regrind to same lip lengths and angles; Spindle run-out / loose spindle: check machine.

Key specifications
