Specifications
+

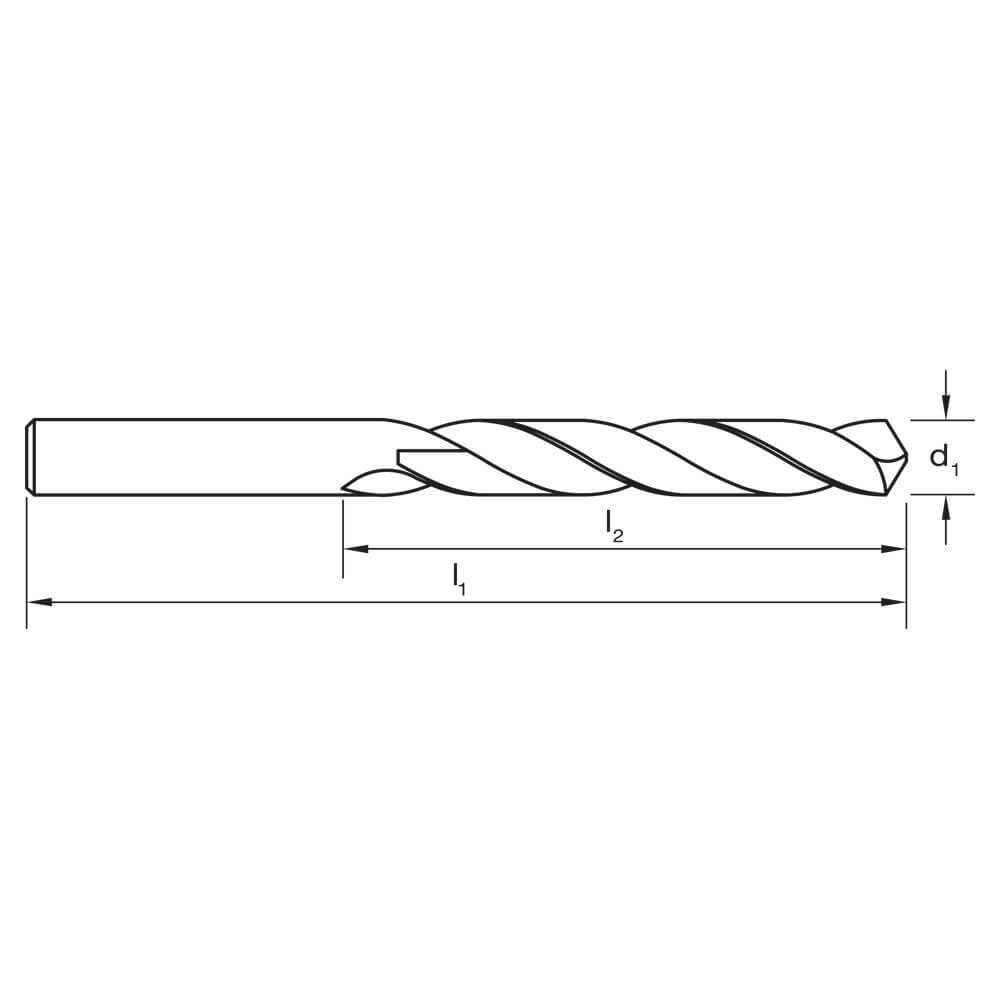

- d1 (mm): 0.35
- l1 (mm): 19
- l2 (mm): 4
- Pack Quantity: 1
- Designation: N
- Material: High Speed Steel
- Finish: Bright
- Maximum Cut Depth: 5XD
- Shank Form: A
- Helix Angle: R30
- X: als
- Point Tolerance: h8
- Point Angle: 118°
- Point Form: Form A
- Cutting Edges: ul
- Standard: ANSI B94-11/DIN 338
Application
+
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable- 60 HB
- Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable- 100 HB
Features & Benefits
+

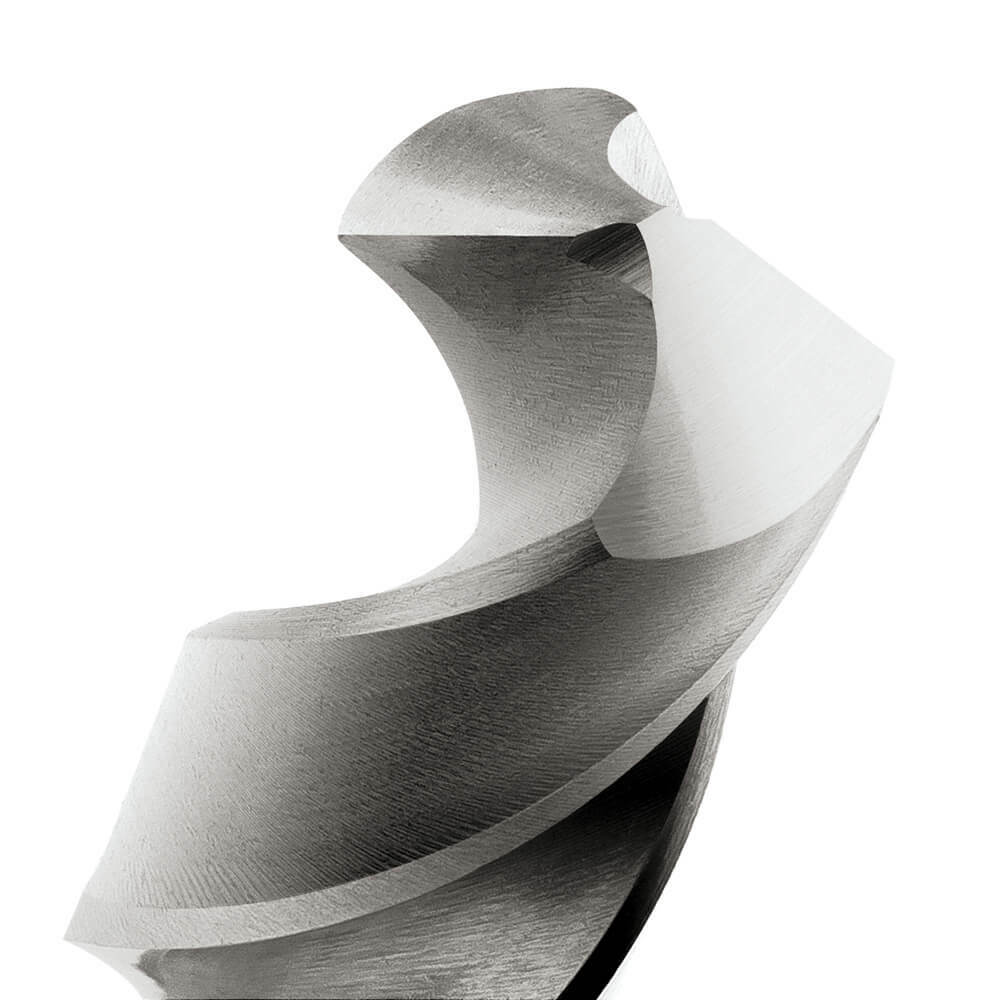

- 118° standard point for general purpose applications
- Precision engineered parallel shank for accurate hole size
- Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
- Bright finish for general purpose applications, non-ferrous metals & plastics
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Save 30%

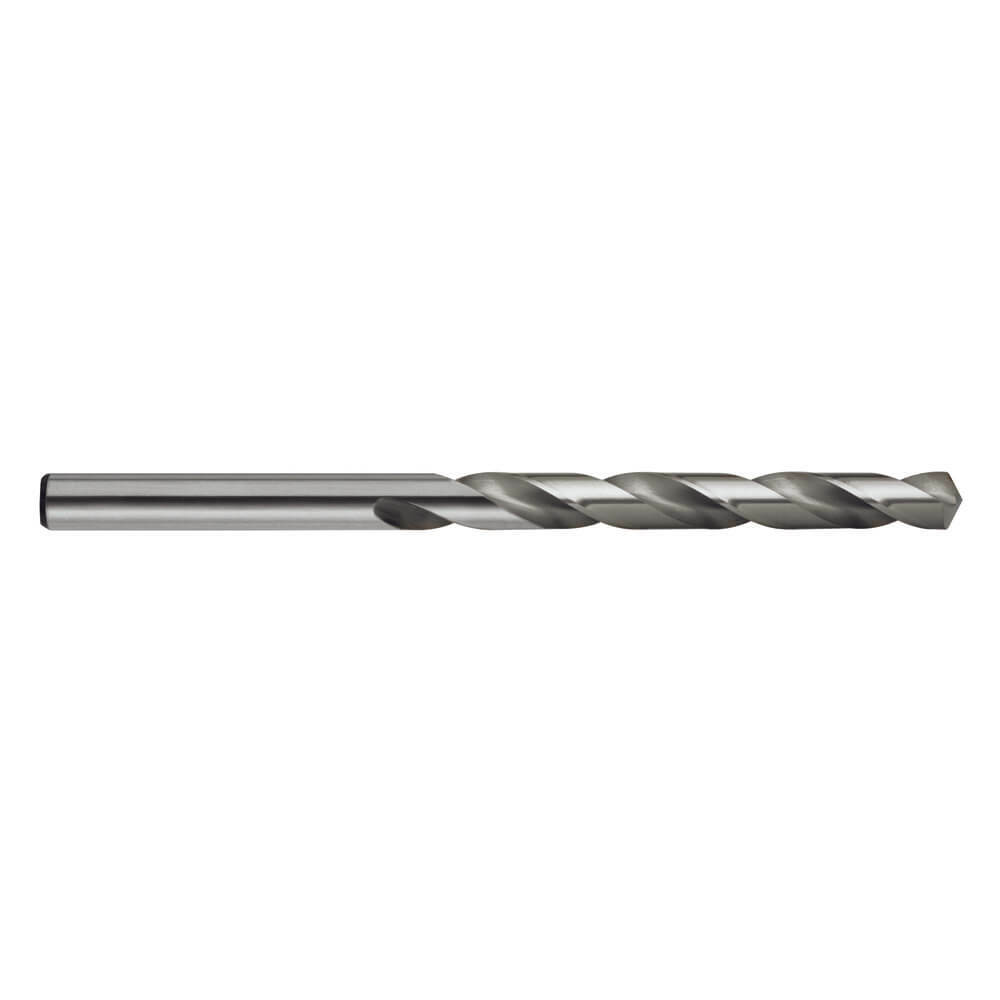

Sutton D101 Silver Bullet Jobber Drill Bit - Metric - HSS
Sutton D101 Silver Bullet Jobber Drill Bit - Metric - HSS
No reviews
SKU: A0002765
Type: Jobber Drill Bit
Regular price
$73.74
Sale price
$73.74
Regular price
$105.35
Unit price
/per
Inc. GST
🔧High Speed Steel (HSS)
⚙Sutton Silver Bullet Jobber
📐Multiple Sizes Available
🔩Accurate Drilling Performance
🏗Metalworking & Manufacturing
☑High Speed Operation Rated
Available
Product Highlights
−
Sutton Tools Silver Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminum, brass, wood & plastics.
