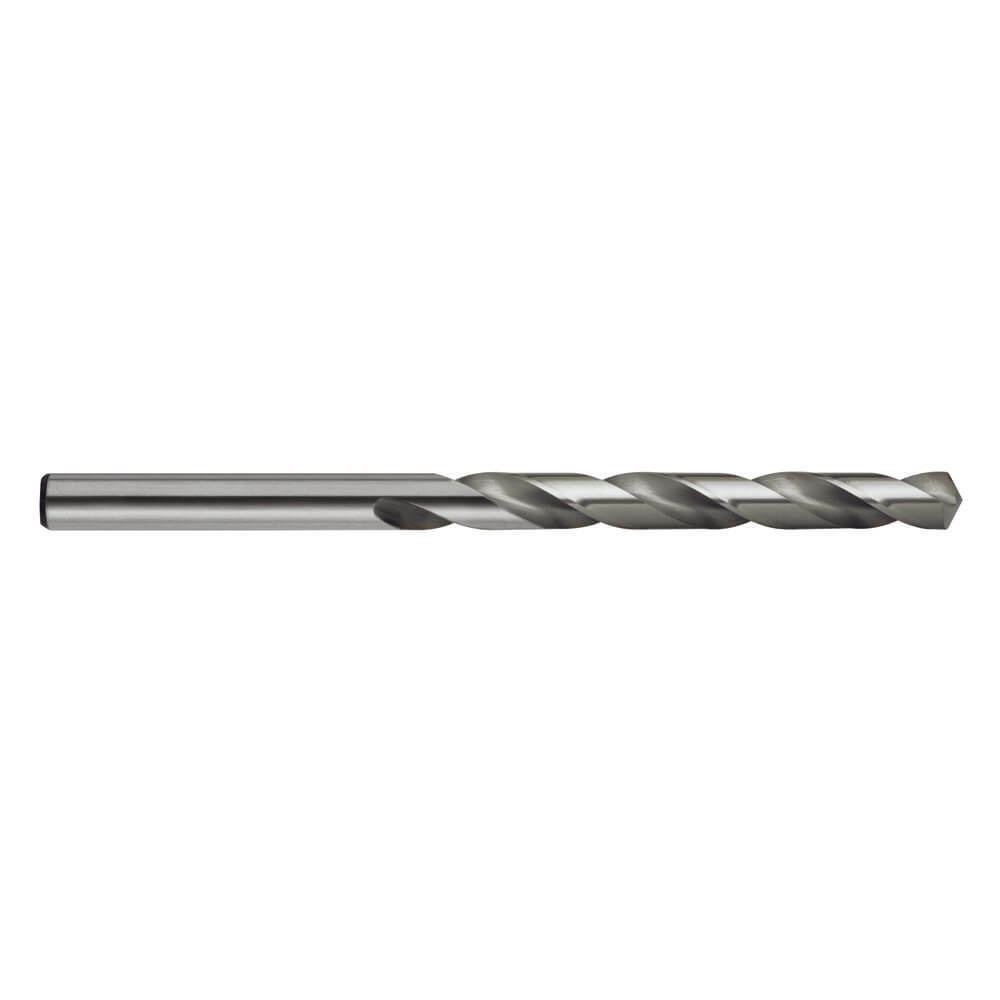

Sutton D101 Silver Bullet Jobber Drill Bit - Imperial - HSS1

Sutton D101 Silver Bullet Jobber Drill Bit - Imperial - HSS2

Sutton D101 Silver Bullet Jobber Drill Bit - Imperial - HSS3

Sutton D1010159 1/16" Jobber Drill Bit Silver Bullet HSS

Sutton D1010397 5/32" Jobber Drill Bit Silver Bullet HSS

Sutton D1010476 3/16" Jobber Drill Bit Silver Bullet HSS

Sutton D1010714 9/32" Jobber Drill Bit Silver Bullet HSS

Sutton D1010794 5/16" Jobber Drill Bit Silver Bullet HSS

Sutton D1010833 21/64" Jobber Drill Bit Silver Bullet HSS

Sutton D1010873 11/32" Jobber Drill Bit Silver Bullet HSS

Sutton D1010913 23/64" Jobber Drill Bit Silver Bullet HSS

Sutton D1010953 3/8" Jobber Drill Bit Silver Bullet HSS

Sutton D1010992 25/64" Jobber Drill Bit Silver Bullet HSS

Sutton D1011032 13/32" Jobber Drill Bit Silver Bullet HSS

Sutton D1011111 7/16" Jobber Drill Bit Silver Bullet HSS

Sutton D1011269 1/2" Jobber Drill Bit Silver Bullet HSS

Description +

Sutton Tools Silver Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminium, brass, wood & plastics.

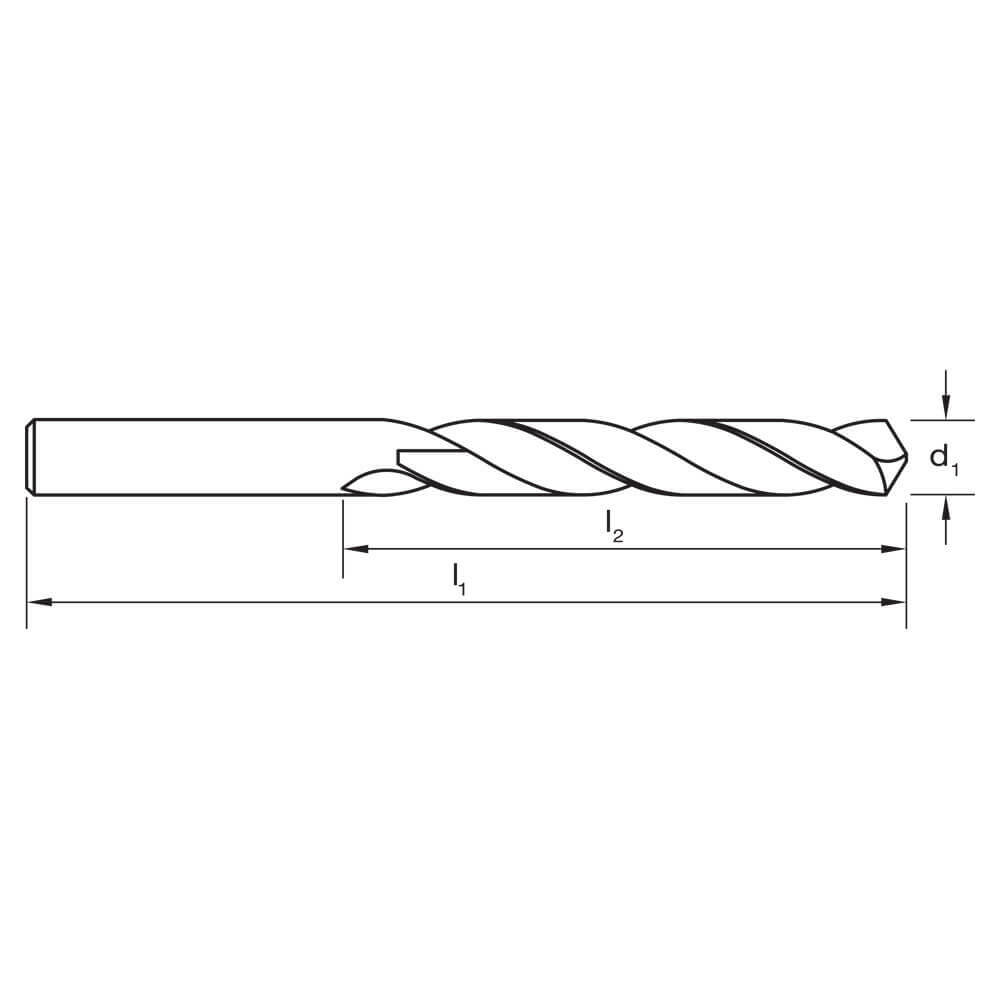

Dimensions

D1 (mm):1.59 mm
D1 (inch):1/16”
L1: 48mm
L2: 22mm

Features

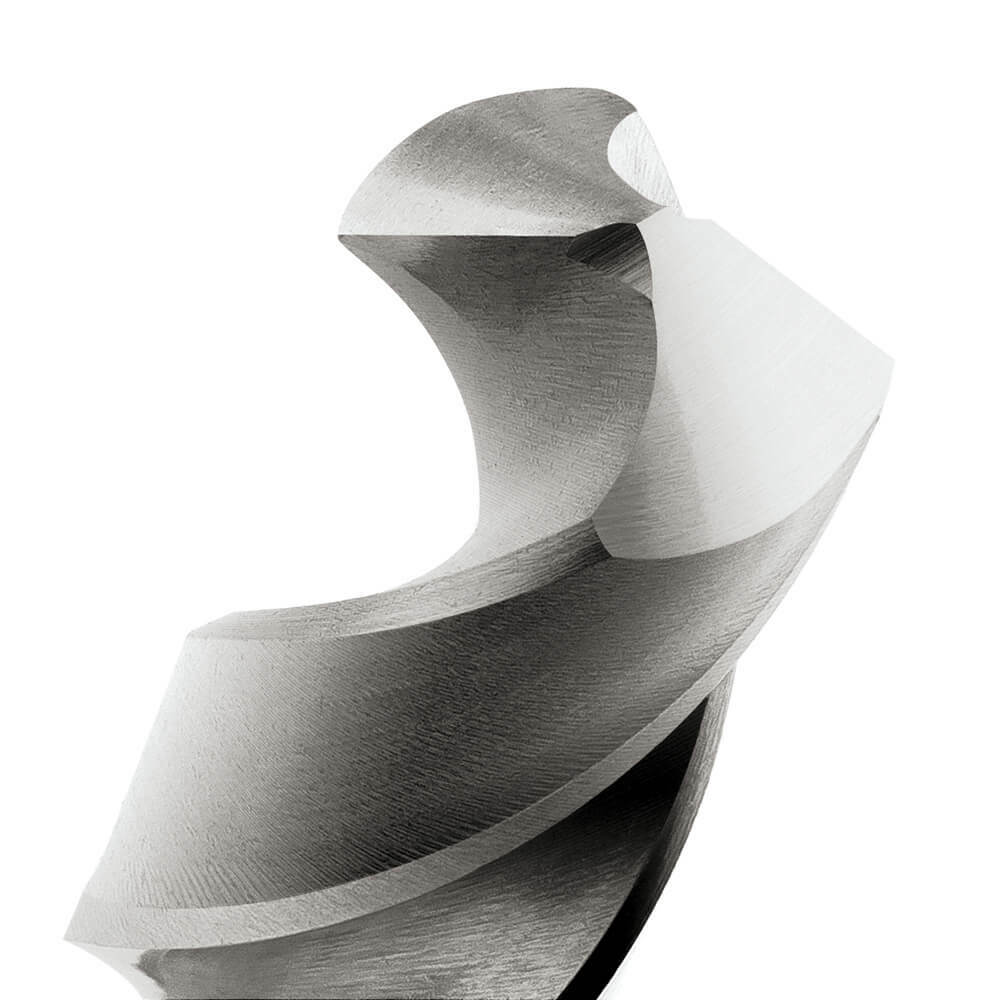

118° standard point for general purpose applications
Precision engineered parallel shank for accurate hole size
Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 5 x D
Shank Form: A
Helix Angle: R30
Point Tolerance: h8
Point Angle: 118°
Point Form: Form A
Standard: ANSI B94-11 / DIN338

Applications

ISO: H
VDI: 41
Description: Cast Iron
Condition: Hardened and Tempered
Hardness: 55HRC

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton D101 Silver Bullet Jobber Drill Bit - Imperial - HSS

SKU: A0002820

Type: Jobber Drill Bit

$3.26

Inc. GST

Buy It Now

Available

The Sutton D101 Silver Bullet Jobber Drill Bit by Sutton Tools is a Jobber Drill Bit made from HSS suitable for machine and hand held drilling in steel aluminium brass wood and plastics. It offers a 1.59 mm diameter and is suitable for Cast Iron.
