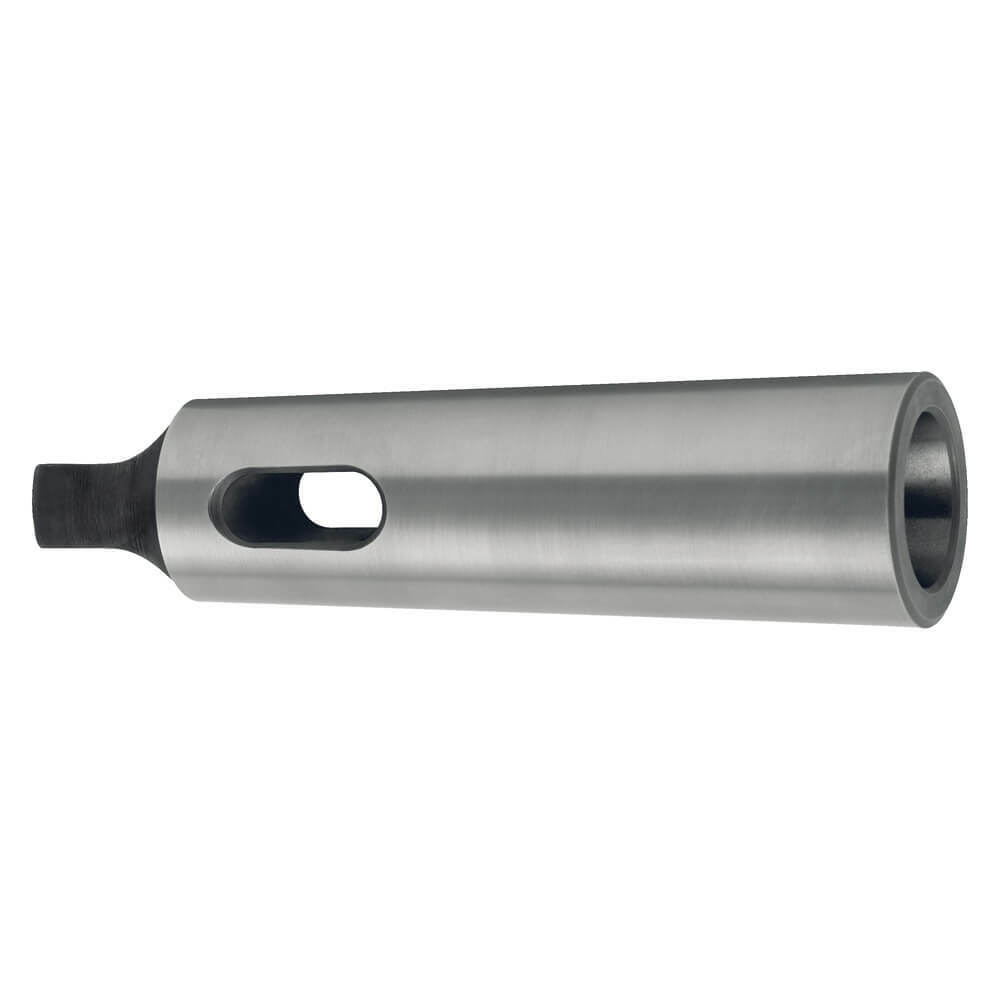

Sutton D1180012 MT1-MT2 Morse Taper Sleeve - Hardened Alloy Steel
Available
The Sutton D118 Morse taper sleeve adapts a tool with a Morse taper shank to a larger Morse taper spindle or socket. It is made from hardened alloy steel, precision ground internally and externally, with a bright finish, and is supplied in 13 internal and external taper combinations from MT1-MT2 to MT5-MT6.
Each sleeve has an internal taper that takes the drill or tool shank and an external taper that fits the spindle. The hardened alloy steel is designed for strength and wear resistance, and the precision ground tapers are designed to seat accurately. The catalogue marks the #1-#4, #1-#5 and #2-#5 sleeves (internal taper shown in brackets) as sizes to avoid wherever possible.
Where this product is used
- Fitting a Morse taper drill or tool to a larger Morse taper spindle on a drilling machine, lathe tailstock or mill.
- Reducing sleeve between a machine spindle taper and the tool shank taper.
- Applications include trade, industrial, metalworking, machine shop and MRO work.
Design features
- Hardened alloy steel construction.
- Precision ground internally and externally.
- Bright finish.
- 13 combinations, internal MT1 to MT5 and external MT2 to MT6.
- Sold individually.
Sizes and item numbers

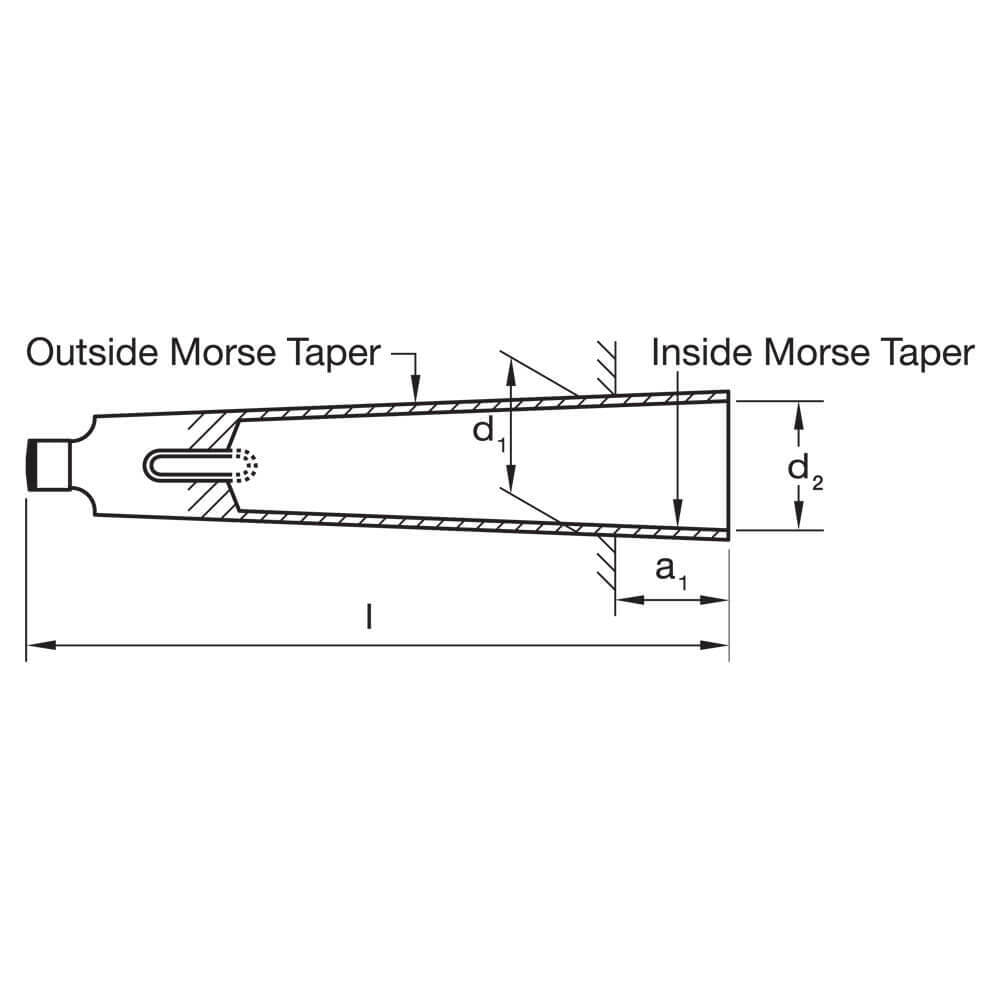

Internal taper is the taper the drill or tool shank fits; external taper is the taper that fits the machine spindle. Dimensions are in millimetres.
| Internal MT | External MT | D1 (mm) | D2 (mm) | A1 (mm) | Overall length (mm) | Sutton item no. |
|---|---|---|---|---|---|---|
| MT1 | MT2 | 17.780 | 12.065 | 17 | 92 | D118 0012 |
| MT1 | MT3 | 23.825 | 12.065 | 5 | 99 | D118 0013 |
| MT2 | MT3 | 23.825 | 17.78 | 18 | 112 | D118 0023 |
| MT1* | MT4 | 31.267 | 12.065 | 6.5 | 124 | D118 0014 |
| MT2 | MT4 | 31.267 | 17.78 | 6.5 | 124 | D118 0024 |
| MT3 | MT4 | 31.267 | 23.825 | 22.5 | 140 | D118 0034 |
| MT1* | MT5 | 44.399 | 12.065 | 6.5 | 156 | D118 0015 |
| MT2* | MT5 | 44.399 | 17.78 | 6.5 | 156 | D118 0025 |
| MT3 | MT5 | 44.399 | 23.825 | 6.5 | 156 | D118 0035 |
| MT4 | MT5 | 44.399 | 31.267 | 21.5 | 171 | D118 0045 |
| MT3 | MT6 | 63.348 | 23.825 | 8 | 218 | D118 0036 |
| MT4 | MT6 | 63.348 | 31.267 | 8 | 218 | D118 0046 |
| MT5 | MT6 | 63.348 | 44.399 | 8 | 218 | D118 0056 |
* Avoid these sizes wherever possible (internal taper shown in brackets in the catalogue).
Using the sleeves
- Choose the sleeve with an internal taper matching the tool shank and an external taper matching the spindle.
- Clean the tapers before fitting so they seat fully.
- Remove the tool and sleeve with a D142 drill drift key where the spindle or sleeve has a drift slot.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D118 |
| Type | Morse taper sleeve |
| Sizes | 13 combinations, MT1-MT2 to MT5-MT6 |
| Material | Hardened alloy steel |
| Finish | Bright |
| Machining | Precision ground internally and externally |
Related products
Morse taper shank drills: D115 HSS, D140 long series and D141 cobalt. Drift keys: D142 drill drift keys. Browse the drilling range.
