Sutton D142MT1 MT1 Morse Taper Drill Drift Key - Suits MT1 and MT2

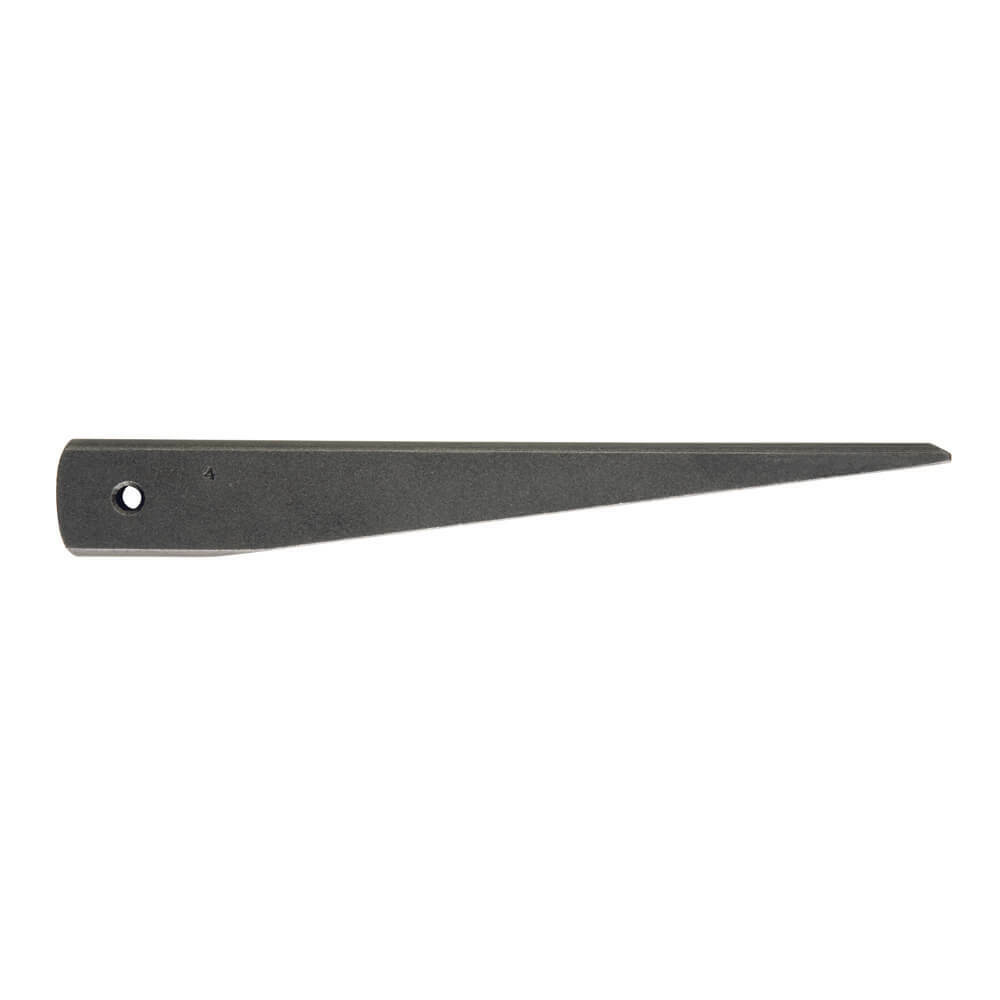

The Sutton D142 drill drift key ejects Morse taper drills from sleeves, sockets and machine spindles. It is supplied in three sizes: MT1 (suits MT1 and MT2 tapers), MT3 (suits MT3) and MT4 (suits MT4).

The drift key is driven into the slot at the end of the spindle or sleeve to push the tang of the Morse taper shank out and release the taper. Choose the key size that matches the internal Morse taper of the spindle or sleeve.

Where this product is used

• Releasing Morse taper drills from drilling machine spindles, sleeves and sockets.
• Workshop and maintenance use alongside D115, D140 and D141 Morse taper drills and D118 sleeves.
• Applications include trade, industrial, metalworking, machine shop and MRO work.

Design features

• Ejects Morse taper drills from sleeves, sockets and machine spindles.
• 3 sizes: MT1 (MT1 and MT2), MT3, MT4.
• Sold individually.

Sizes and item numbers

Using the drift key

• Match the key to the internal taper of the spindle or sleeve.
• Insert the key through the slot and drive it gently to push the tang and release the taper.
• Support the drill so it does not drop when it releases.

Key specifications
