Sutton D179SM2 19 piece Viper Plus Jobber Metric Drill Set HSS TiAlN
Available

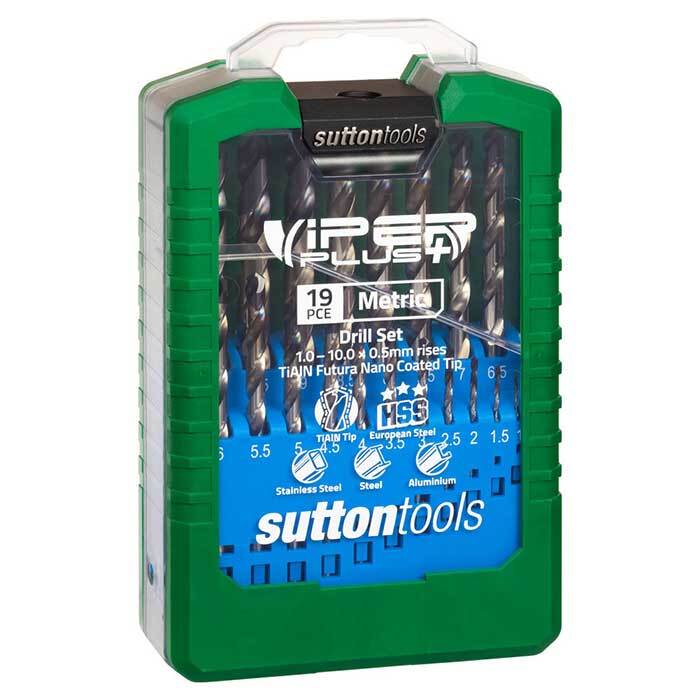

The Sutton D179SM2 is a 19-piece set of D179 Viper Plus drills in High Speed Steel (HSS), in a ABS plastic case. The set covers 1.0 – 10.0 mm × 0.5 mm steps.

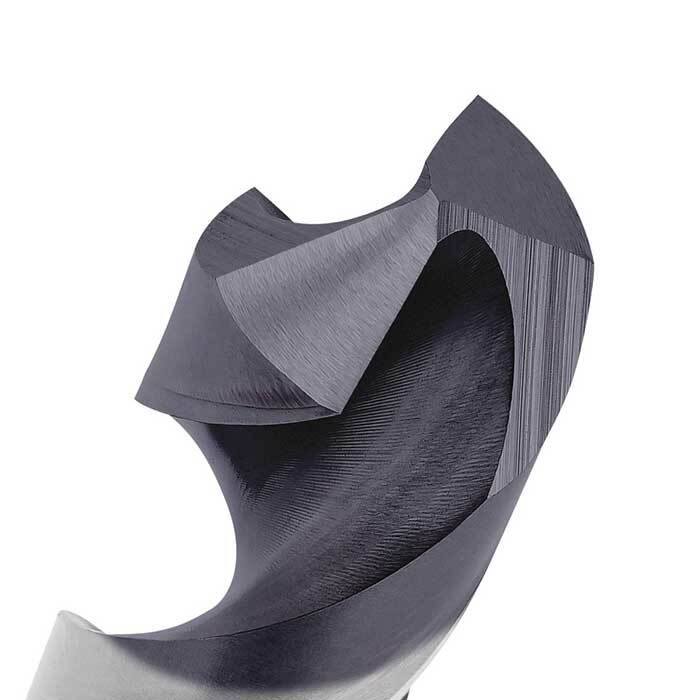

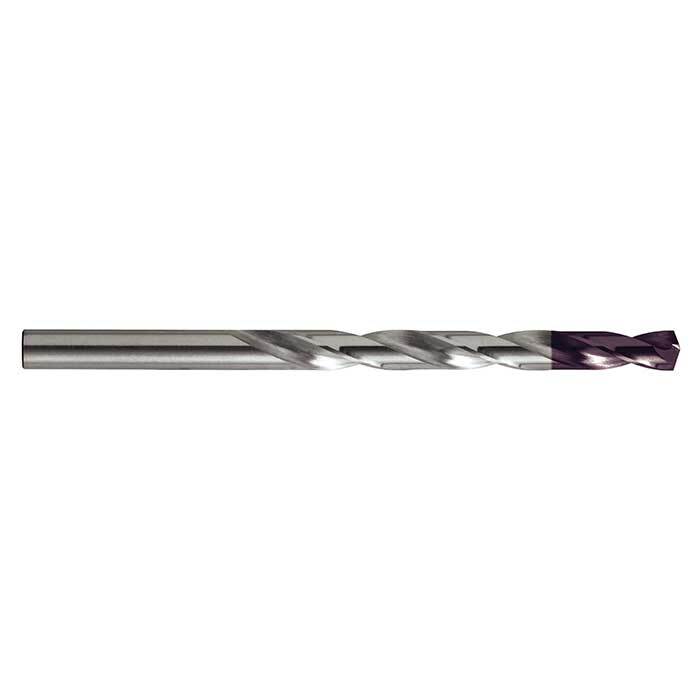

Each drill in the set has 30° right-hand helix flutes (R30), a 118° Form C split point, a TiAlN-coated tip and is made to DIN 338.

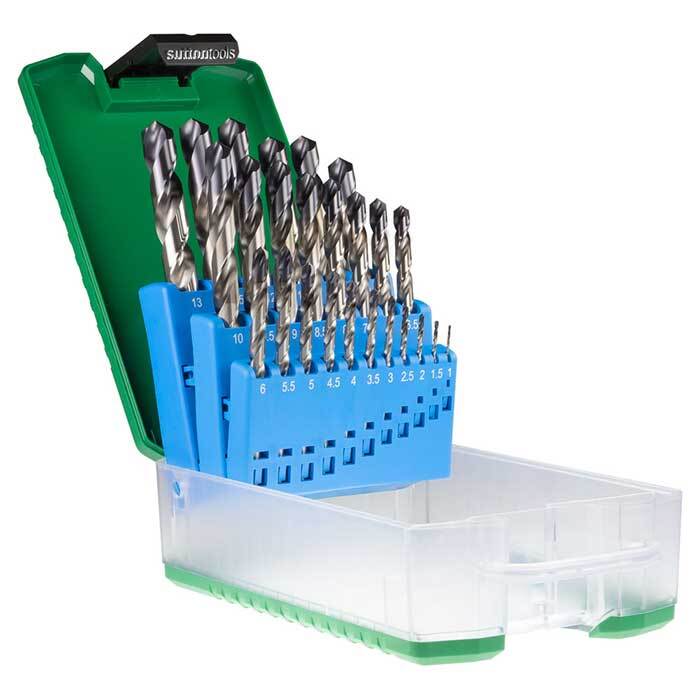

What is in the set
- 19 drills: 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10 mm
Drills in this set

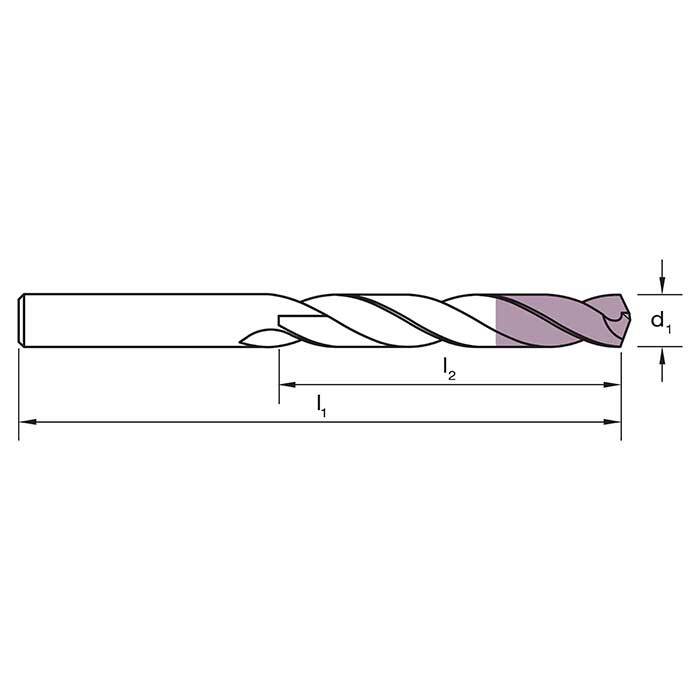

Dimensions of each drill in the set, from the individual D179 Viper Plus items of the same sizes.
| Size | Item no. | Flute length l2 (mm) | Overall length l1 (mm) |
|---|---|---|---|
| 1 mm | D179 0100 | 12 | 34 |
| 1.5 mm | D179 0150 | 18 | 40 |
| 2 mm | D179 0200 | 24 | 49 |
| 2.5 mm | D179 0250 | 30 | 57 |
| 3 mm | D179 0300 | 33 | 61 |
| 3.5 mm | D179 0350 | 39 | 70 |
| 4 mm | D179 0400 | 43 | 75 |
| 4.5 mm | D179 0450 | 47 | 80 |
| 5 mm | D179 0500 | 52 | 86 |
| 5.5 mm | D179 0550 | 57 | 93 |
| 6 mm | D179 0600 | 57 | 93 |
| 6.5 mm | D179 0650 | 63 | 101 |
| 7 mm | D179 0700 | 69 | 109 |
| 7.5 mm | D179 0750 | 69 | 109 |
| 8 mm | D179 0800 | 75 | 117 |
| 8.5 mm | D179 0850 | 75 | 117 |
| 9 mm | D179 0900 | 81 | 125 |
| 9.5 mm | D179 0950 | 81 | 125 |
| 10 mm | D179 1000 | 87 | 133 |
Where this product is used
- General drilling across the materials rated for D179 Viper Plus drills.
- Materials rated Optimal for the D179: non-alloy steel, about 0.15 %C, annealed; non-alloy steel, about 0.45 %C, annealed; non-alloy steel, about 0.45 %C, quenched and tempered (250 HB); non-alloy steel, about 0.75 %C (annealed and quenched and tempered); low-alloy steel (under 5% alloying elements), annealed; low-alloy steel, quenched and tempered (275 to 350 HB); high-alloy and tool steel; grey cast iron; nodular cast iron; and malleable cast iron.
- General-purpose drilling where a split point and coated tip help the drill start and penetrate.
Finish
TiAlN tip. TiAlN has a microhardness of 3300 HV and thermal stability to about 900 °C (1652 °F), and is used for difficult-to-machine materials such as stainless steel and for higher speeds and feeds.
Cutting speeds and feeds
Cutting speeds (Vc) and feed numbers are given for the D179. Speed (rpm) = Vc × 1000 ÷ (π × Ø); treat these as starting values.
| Material (VDI 3323 group) | Rating | Vc (m/min) | Feed no. | Ø6 mm: rpm / feed | Ø10 mm: rpm / feed |
|---|---|---|---|---|---|
| Non-alloy steel, about 0.15 %C, annealed | Optimal | 24 | 5 | 1,270 rpm / 0.125 mm/rev | 765 rpm / 0.19 mm/rev |
| Non-alloy steel, about 0.45 %C, annealed | Optimal | 20 | 5 | 1,060 rpm / 0.125 mm/rev | 635 rpm / 0.19 mm/rev |
| Non-alloy steel, about 0.45 %C, quenched and tempered | Optimal | 18 | 5 | 955 rpm / 0.125 mm/rev | 575 rpm / 0.19 mm/rev |
| Non-alloy steel, about 0.75 %C, annealed | Optimal | 18 | 5 | 955 rpm / 0.125 mm/rev | 575 rpm / 0.19 mm/rev |
| Low-alloy steel (under 5% alloying), annealed | Optimal | 18 | 5 | 955 rpm / 0.125 mm/rev | 575 rpm / 0.19 mm/rev |
| Low-alloy steel, quenched and tempered (275 HB) | Optimal | 18 | 4 | 955 rpm / 0.1 mm/rev | 575 rpm / 0.16 mm/rev |
| High-alloy and tool steel, annealed | Optimal | 12 | 4 | 635 rpm / 0.1 mm/rev | 380 rpm / 0.16 mm/rev |
| Ferritic / martensitic stainless steel | Effective | 10 | 3 | 530 rpm / 0.08 mm/rev | 320 rpm / 0.125 mm/rev |
| Austenitic stainless steel | Effective | 10 | 4 | 530 rpm / 0.1 mm/rev | 320 rpm / 0.16 mm/rev |
| Duplex stainless steel | Effective | 8 | 4 | 425 rpm / 0.1 mm/rev | 255 rpm / 0.16 mm/rev |
| Precipitation-hardening stainless steel | Effective | 10 | 3 | 530 rpm / 0.08 mm/rev | 320 rpm / 0.125 mm/rev |
| Grey cast iron, ferritic / pearlitic | Optimal | 25 | 6 | 1,330 rpm / 0.16 mm/rev | 795 rpm / 0.24 mm/rev |
| Grey cast iron, pearlitic | Effective | 20 | 5 | 1,060 rpm / 0.125 mm/rev | 635 rpm / 0.19 mm/rev |
| Nodular cast iron, ferritic | Optimal | 18 | 6 | 955 rpm / 0.16 mm/rev | 575 rpm / 0.24 mm/rev |
| Malleable cast iron, ferritic | Optimal | 18 | 6 | 955 rpm / 0.16 mm/rev | 575 rpm / 0.24 mm/rev |
| Cast aluminium and magnesium (up to 12% Si), non heat treatable | Effective | 30 | 4 | 1,590 rpm / 0.1 mm/rev | 955 rpm / 0.16 mm/rev |
| Cast aluminium over 12% Si | Effective | 20 | 6 | 1,060 rpm / 0.16 mm/rev | 635 rpm / 0.24 mm/rev |
| Copper alloys, free cutting (Pb > 1%) | Effective | 30 | 4 | 1,590 rpm / 0.1 mm/rev | 955 rpm / 0.16 mm/rev |
| Brass (CuZn, CuSnZn) | Effective | 25 | 4 | 1,330 rpm / 0.1 mm/rev | 795 rpm / 0.16 mm/rev |
| Bronze (CuSn) | Effective | 25 | 4 | 1,330 rpm / 0.1 mm/rev | 795 rpm / 0.16 mm/rev |
| Thermosetting and fibre-reinforced plastics | Effective | 35 | 4 | 1,860 rpm / 0.1 mm/rev | 1,110 rpm / 0.16 mm/rev |
| Chilled cast iron | Effective | 20 | 5 | 1,060 rpm / 0.125 mm/rev | 635 rpm / 0.19 mm/rev |
Key specifications
| Specification | Detail |
|---|---|
| Set number | D179SM2 |
| Catalogue code | D179 Viper Plus |
| Pieces | 19 |
| Size range | 1.0 – 10.0 mm × 0.5 mm rises |
| Case | ABS plastic case |
| Material | High Speed Steel (HSS) |
| Finish | TiAlN tip |
| Flute geometry | 30° right-hand helix (R30) |
| Standard | DIN 338 |
Related drilling products
Individual drills from this range are in the Jobber Drill Bits collection; sets are in the Metric Jobber Drill Sets and Imperial Jobber Drill Sets collections. Our speeds and feeds chart and troubleshooting guide help with speeds and problem solving.
